Section 02 ENGINE

Subsection 09 (COOLING SYSTEM)

F18E16A

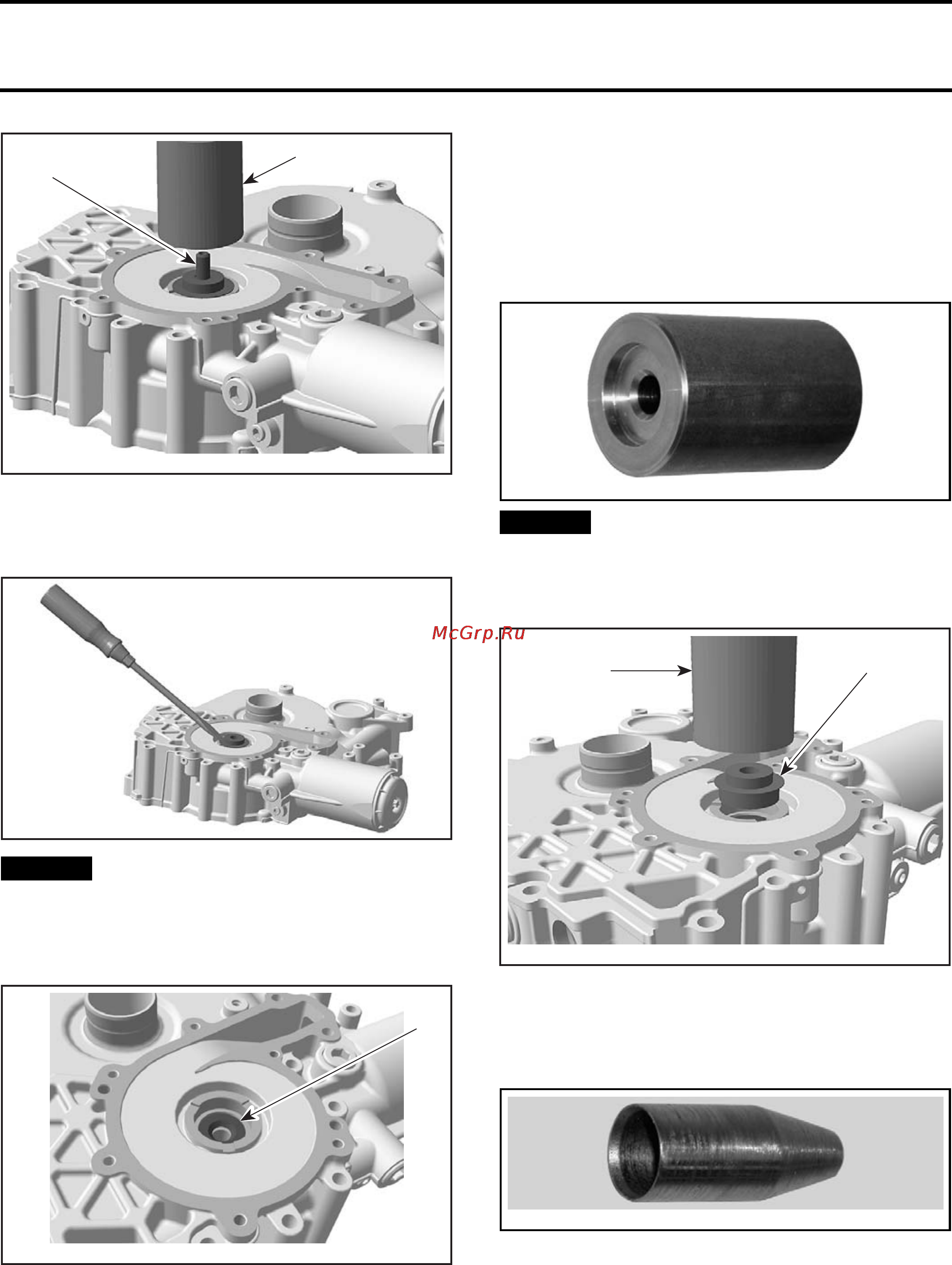

1. Pusher

2. Coolant/oil pump shaft

Remove rotary seal with a screwdriver.

F18E17A

NOTICE

Be careful not to damage the surface

of the rotary seal bore in PTO housing.

Always replace also the oil seal behind the rotary

seal.

F18E18A

1. Oil seal

Rotary Seal Installation

The installation is the opposite of the removal pro-

cedure. Pay attention to the following details.

NOTE: Never use oil in the press fit area of the oil

seal and rotary seal.

Push water pump shaft oil seal in place by using

thumb.

Install the NEW rotary seal using a press and the

WATER PUMP SEAL PUSHER (P/N 529 035 823).

529035823

NOTICE

Never use a h

ammer for the rotary

seal or wate

r/oil pump shaft installation. Only

useapresst

o avoid damaging the ceramic

component.

F18E19A

1. Rotary seal

2. Rotary seal installer

Install the OIL SEAL GUIDE (P/N 529 035 822) on the

end of coolant/oil pump shaft.

529035822

smr2009-024 125
