Section 02 ENGINE

Subsection 11 (CYLINDER BLOCK)

R1503motr05A

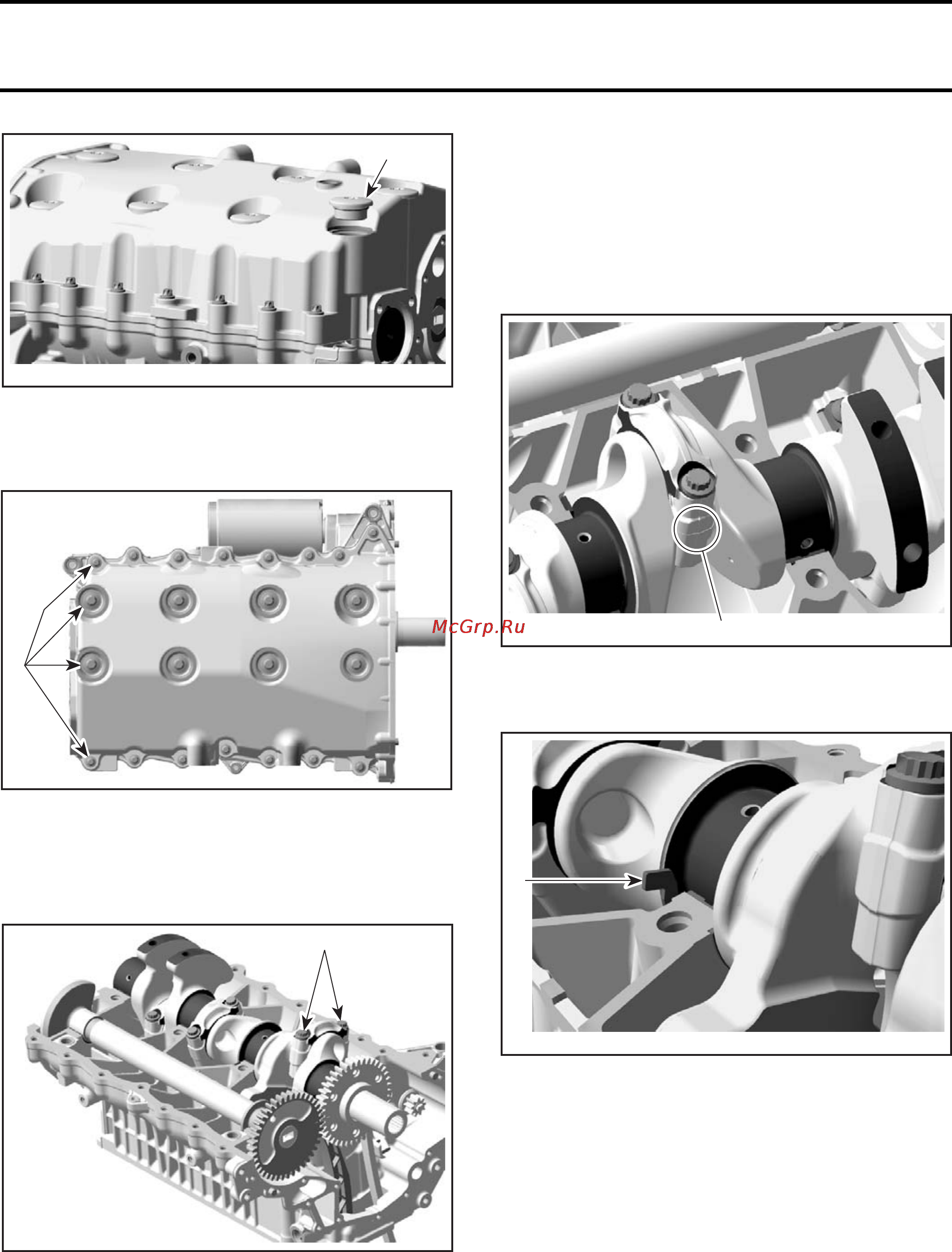

ENGINE UPSIDE DOWN

1. Oil reservoir plug screw with O-ring

10. Remove cylinder block screws no. 3 and no. 7.

R1503motr109A

BOTTOM V

IEW OF ENGINE

1. Screws

11. Remove cylinder block lower half.

12. Remove connecting rod screws.

R1503motr08A

1. Connecting rod screws

NOTE: Before removing the connecting rod caps,

mark them to remember the right position when

reassembling. It is recommended to measure

connecting rod big end axial play prior to re-

move connecting rod. Refer to

PISTONS AND

CONNECTING RODS

in this subsection for the

procedure.

R1503motr07A

1. Mark on connecting rod

13. Remove thrust washers no. 4.

R1503motr09A

1. Thrust washer

14. Remove crankshaft no. 5.

smr2009-026 161
