Section 02 ENGINE

Subsection 11 (CYLINDER BLOCK)

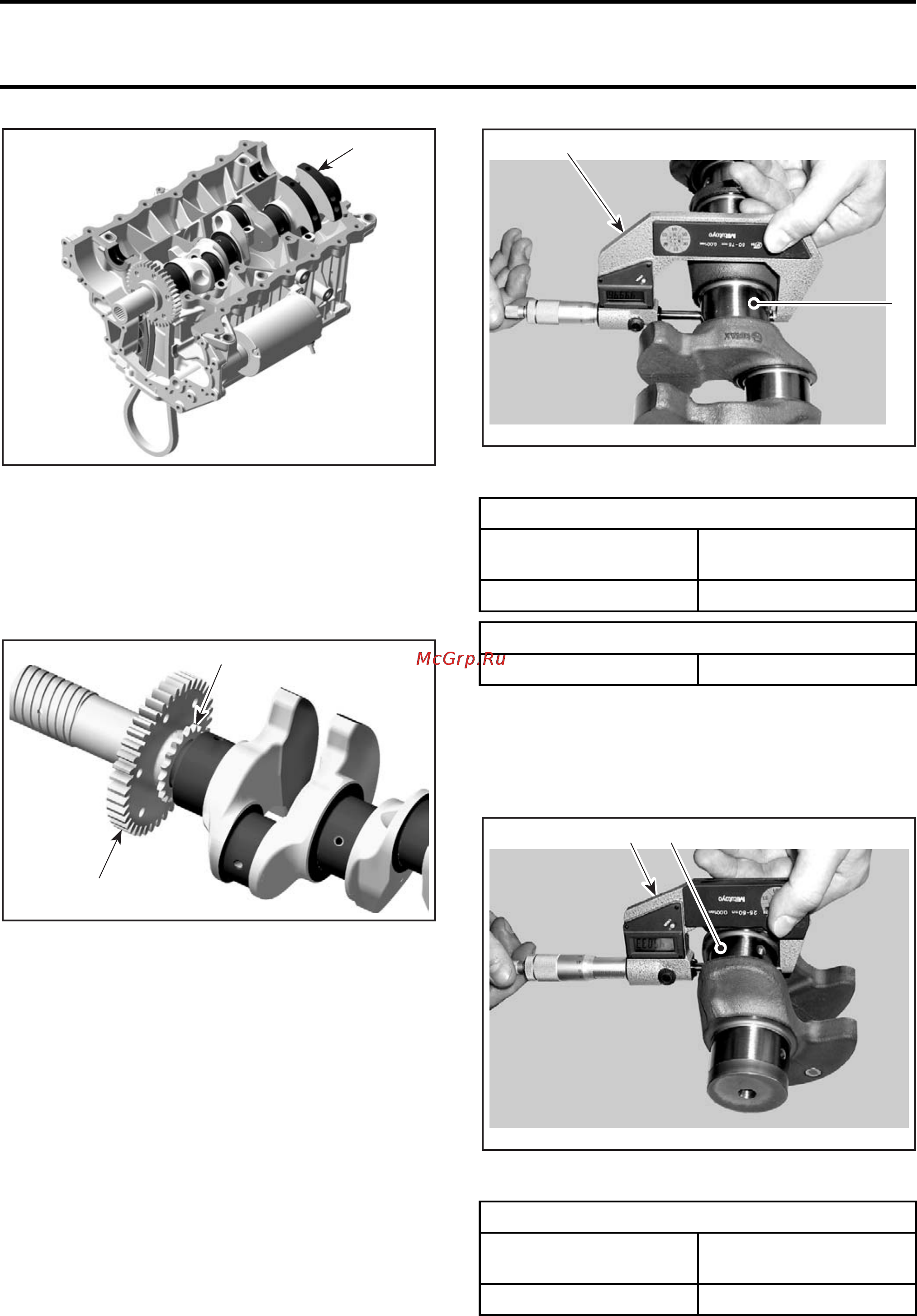

R1503motr10A

1. Crankshaft

Crankshaft Inspection

Crankshaft Gear Inspection

Replace crankshaft if the gears are worn or other-

wise damaged.

R1503motr11A

1. Balancer gear

2. Crank

shaft timing gear

Crankshaft Radial Play

Measure all crankshaft journals. Compare to in-

side diameter of crankshaft bearings (elsewhere

in this subsection).

R1503motr13A

1. Micrometer

2. Crankshaft area for bearing

CRANKSHAFT JOURNAL DIAMETER

NEW

49.991 mm - 50.01 mm

(1.9681in - 1.9689 in)

SERVICE LIMIT

49.95 mm (1.9665 in)

CRANKSHA

FT JOURNAL RADIAL CLEARANCE

SERVICE LIMIT

0.07 mm (.0028in)

Crankshaft Pin

Measure all crankshaft pin diameters. Compare to

inside diameter of connecting rod bearings (else-

where in this subsection).

R1503motr14A

1. Micrometer

2. Crankshaft pin area for bearing

CRA

NKSHAFT PIN DIAMETER

NEW

45.032 mm - 45.048 mm

(1.

7729 in - 1.7735 in)

SERVICE LIMIT

45.029 mm (1.7728 in)

162 smr2009-026
