Section 03 ELECTRONIC MANAGEMENT SYSTEMS
Subsection 04 (MONITORING SYSTEM AND FAULT CODES)
Fault Code Types
There are 4 types of fault codes used on the vehi-
cle:
– “B” for information center and switches faults
(Bxxxx)
– “C” for iBR and iS faults (Cxxxx)
– “P” for power train faults (Pxxxx)
– “U” for CAN communication faults (Uxxxx).
There are 4 modules that stores the fault codes:
– ECM (Engine Control Module)
– iBR (Intelligent Brake and Reverse)
– Cluster (Information Center)
– iS (Intelligent Suspension)
The ECM stores mainly “P” codes and some “U”
codes.
The iBR stores mainly “C” codes and a few “U”
codes.
The Cluster mainly “B” codes and a few “P”
codes.
The iS stores mainly “C” codes and a few “U”
codes.
Fault Code Reading on the Information
Center
NOTE: Only active faults will be displayed.
Press the MODE button repeatedly until the
FAULT CODE function is visible in the multifunc-
tion display.
Press the SET button or the UP or DOWN arrow
button to enter the function and display the first
fault code, then press the UP or DOWN arrow but-
ton repeatedly to display each subsequent code.
NOTE: When the last fault code has been dis-
played and the button is pressed again, the
system loops back to the first fault code dis-
played, and all fault codes can again be displayed.
If there was one active fault code when entering
the FAULT CODE mode, and it becomes occurred
(no longer active), a NO ACTIVE FAULT CODE
message will scroll in the display.
To exit the FAULT CODE display function, the
MODE or SET button must be pressed once.
There is no time out on this function.

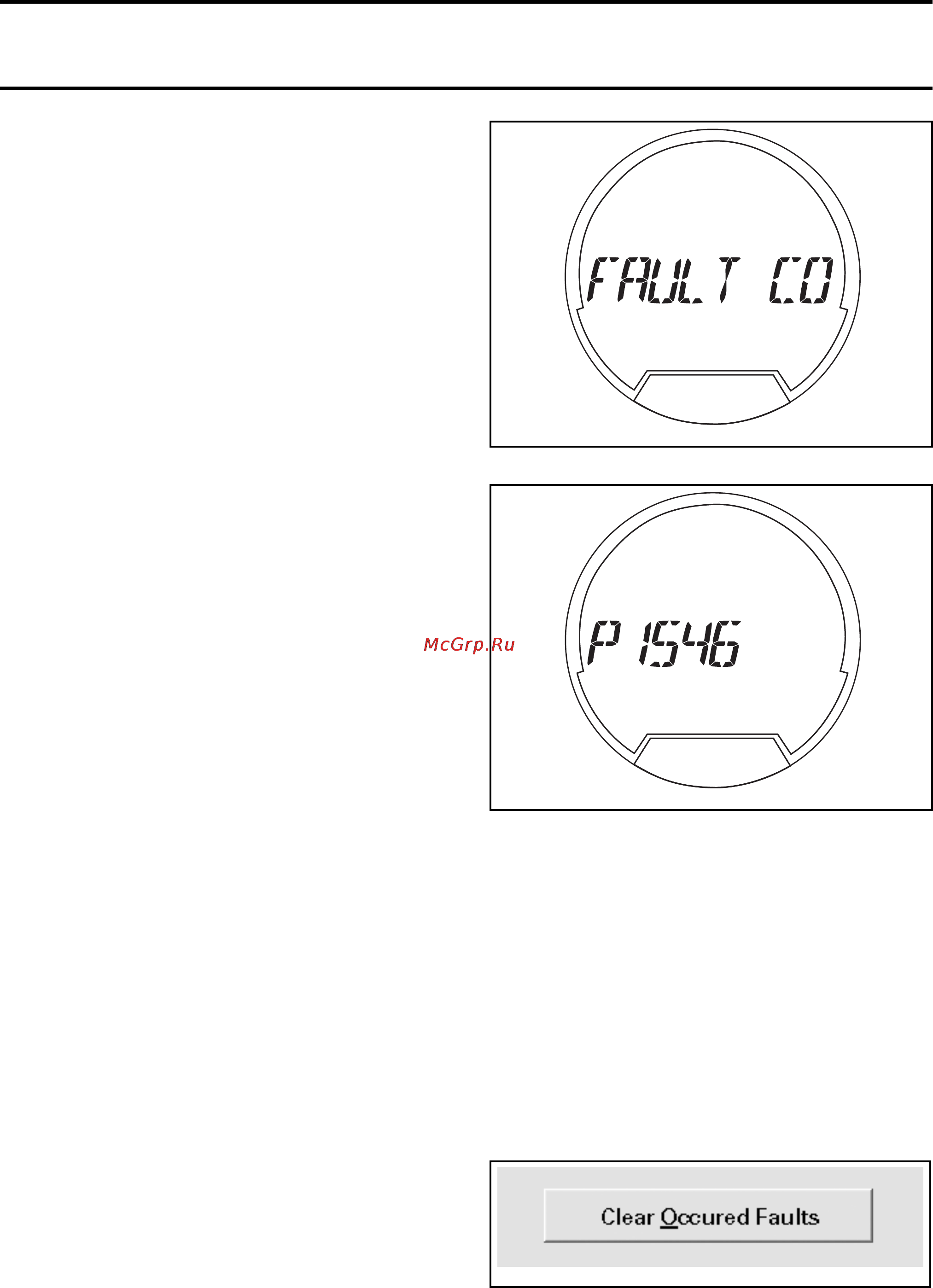

smo2009-002-114_w
FAULT CODE DISPLAY FUNCTION
smo2009-002-114_x
TYPICAL - ENGINE FAULT CODE EXAMPLE
Fault Code Reading Using B.U.D.S.
Software
Refer to
COMMUNICATION TOOLS AND
B.U.D.S. SOFTWARE
section.
Clearing Fault Codes using B.U.D.S.
Software
The fault(s) (occurred state) can be cleared by
pressing the shown button in B.U.D.S.
NOTE: An active fault code cannot be cleared. In
other words, the problem must be repaired before
clearing the fault.
rmr2008-039-009
FAULTS TAB, ALL FAULTS
smr2009-029 191
