Section 04 FUEL SYSTEM

Subsection 02 (ELECTRONIC FUEL INJECTION (EFI))

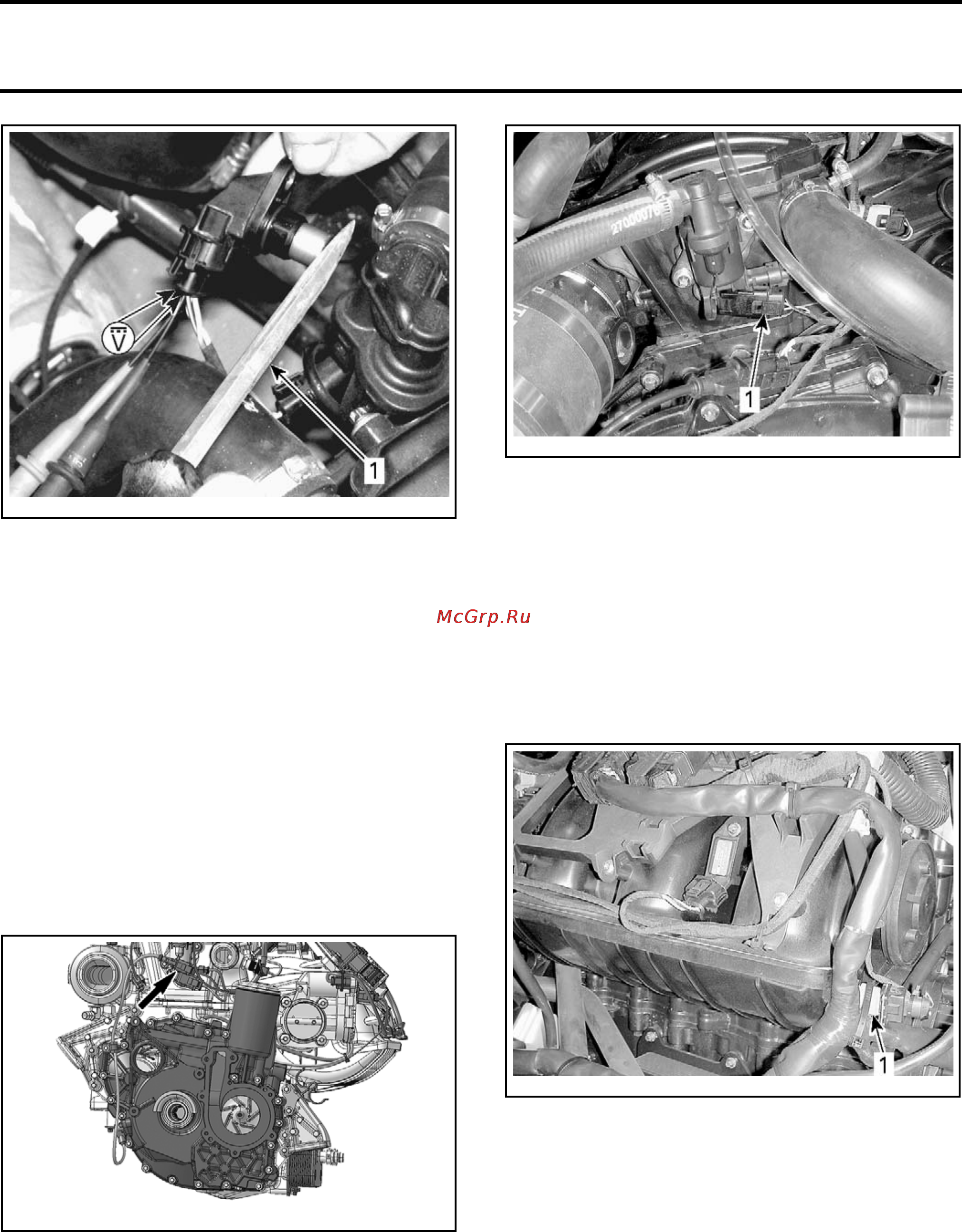

smr2007-021-009_c

1. Metallic object

If voltage is appropriate, check/repair wiring/con-

nector between sensor and ECM. If it is good,

check ECM. Refer to

ENGINE CONTROL MOD-

ULE (ECM)

If voltage is wrong, try a new CAPS.

CAPS Replacement

Open seat.

Remove rear ventilation box. Refer to

AIR INTAKE

SYSTEM

Remove deck extension. Refer to

BODY

Remove air intake silencer. Refer to

AIR INTAKE

SYSTEM

Detach CPS connector from its holder.

smr2008-023-016_a

TYPICA

Disconnect CAPS connector.

smr2009-030-034_a

1. CAPS connector

Unscrew the retaining screw.

Pull out CAPS from engine.

Install the CAPS. Ensure to reinstall O-ring.

Apply Loctite 243 (blue) on thread and torque to

9N•m(80lbf•in).

MANIFOLD AIR TEMPERATURE

SENSOR (MATS)

smr2009-030-036_b

1. Manifold air temperature sensor (MATS)

MATS Resistance Test

To gain access to the MATS, remove the required

parts as described in

MATS REPLACEMENT.

Disconnect the MATS connector.

smr2009-030 245
