Section 04 FUEL SYSTEM

Subsection 03 (FUEL TANK AND FUEL PUMP)

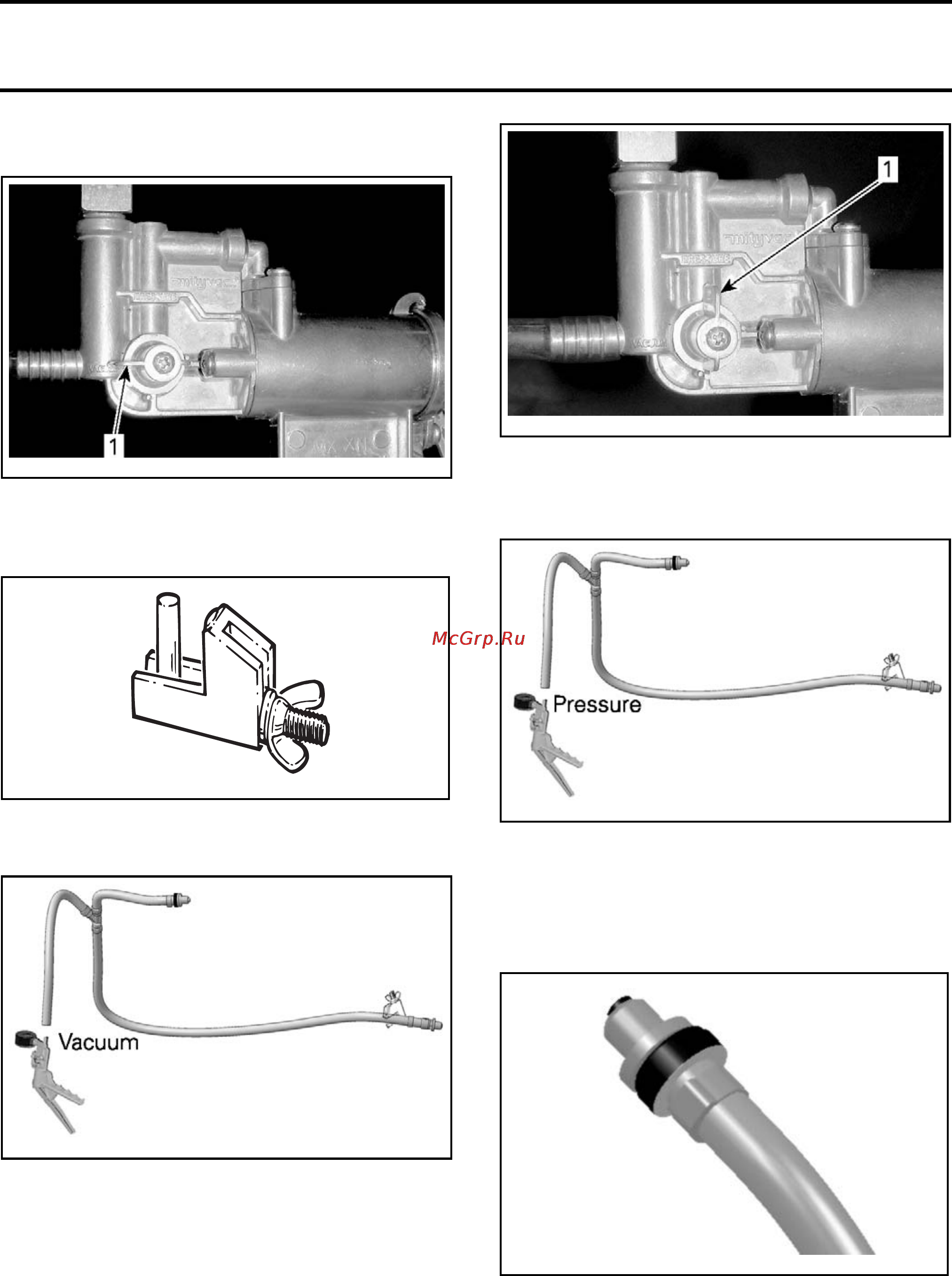

Set the vacuum/pressure pump to vacuum.

smr2009-031-013_a

1. Vacuum selected

Install a S

MALL HOSE PINCHER (P/N 295 000 076)

near outle

tvalve.

295000076

Connect

vacuum/pressure pump to the vent hose

end.

smr2009-031-015_a

TEST SETUP

Squeeze the vacuum/pressure pump handle sev-

eral times to draw air in through the inlet valve.

Air should be drawn in freely and vacuum pres-

sure indication on gauge should remain at zero. If

vacuum value rises, replace inlet valve.

Set vacuum/pressure pump to pressure.

smr2009-031-012_a

1. Pressure selected

Squeeze the vacuum/pressure pump handle sev-

eral times to pressurize air to the inlet valve.

smr2009-031-015_b

TEST SET

Valve should hold 34.5 kPa (5 PSI) without leak-

age. Otherwise, replace inlet valve.

When rep

lacing valve, always reinstall it with the

black s

ide as shown.

smr2006-026-004

Reinstall valve in its grommet.

Reinstall remaining removed components.

smr2009-031 261
