Section 04 FUEL SYSTEM

Subsection 03 (FUEL TANK AND FUEL PUMP)

FUEL SYSTEM HIGH PRESSURE

LEAK TEST

WARNING

A high pressure leak test must be carried

out before starting the engine anytime a fuel

system component has been disconnected

for maintenance, or replacement.

Visually inspect fuel system to ensure all fuel sys-

tem connections are installed.

Lightly pull on hoses at each connection to ensure

they are properly locked at the quick connect fit-

tings.

Remove D.E.S.S. key from its post to prevent en-

gine starting.

Press the START button to turn on the fuel pump

for a few seconds and pressurize the fuel system.

Check for fuel odor and visually inspect hoses, fit-

tings and components for leaking fuel.

If a leak is detected, repair or replace the leaking

component and repeat leak test after the repair.

If no leak is found, engine can be started.

FUEL PUMP PRESSURE TEST

Preparation

Before proceeding, ensure the battery is fully

charged.

The pressure test will show the available pressure

at the fuel pump outlet. It validates the pressure

regulator, the fuel pump and tests for leaks in the

system.

Release fuel pressure. Refer to

FUEL PUMP

this subsection.

Open front storage compartment cover.

Remove the storage basket.

Remove front ventilation box.

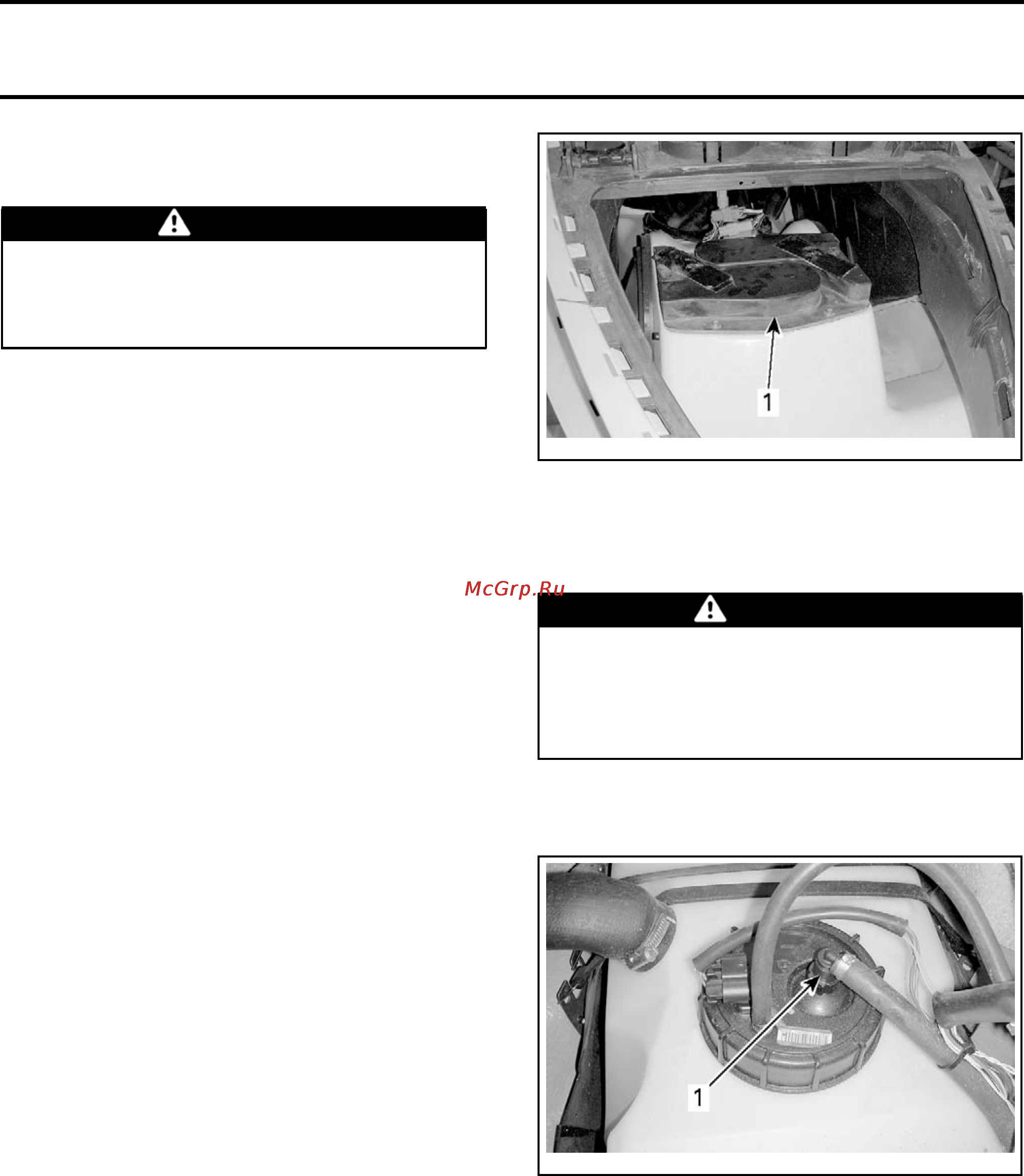

smr2009-03

1-008_a

1. Ventilation box

Ensure hoses and fittings are not leaking. Repair

any leak.

Ensure there is enough gas in fuel tank.

WARNING

The fuel hose may be under pressure. Cover

the fuel line connection with an absorbent

shop rag. Slowly disconnect the fuel hose to

release any residual pressure. Wipe off any

fuel spillage inside bilge.

Disconnect the pressure outlet hose from the fuel

pump.

smr2009-031-017_a

1. Outle

t hose

Install the PRESSURE GAUGE (P/N 529 035 709)

and the FUEL HOSE ADAPTER (P/N 529 036 023)

between disconnected hose and fuel pump fitting

(inline installation).

262 smr2009-031
