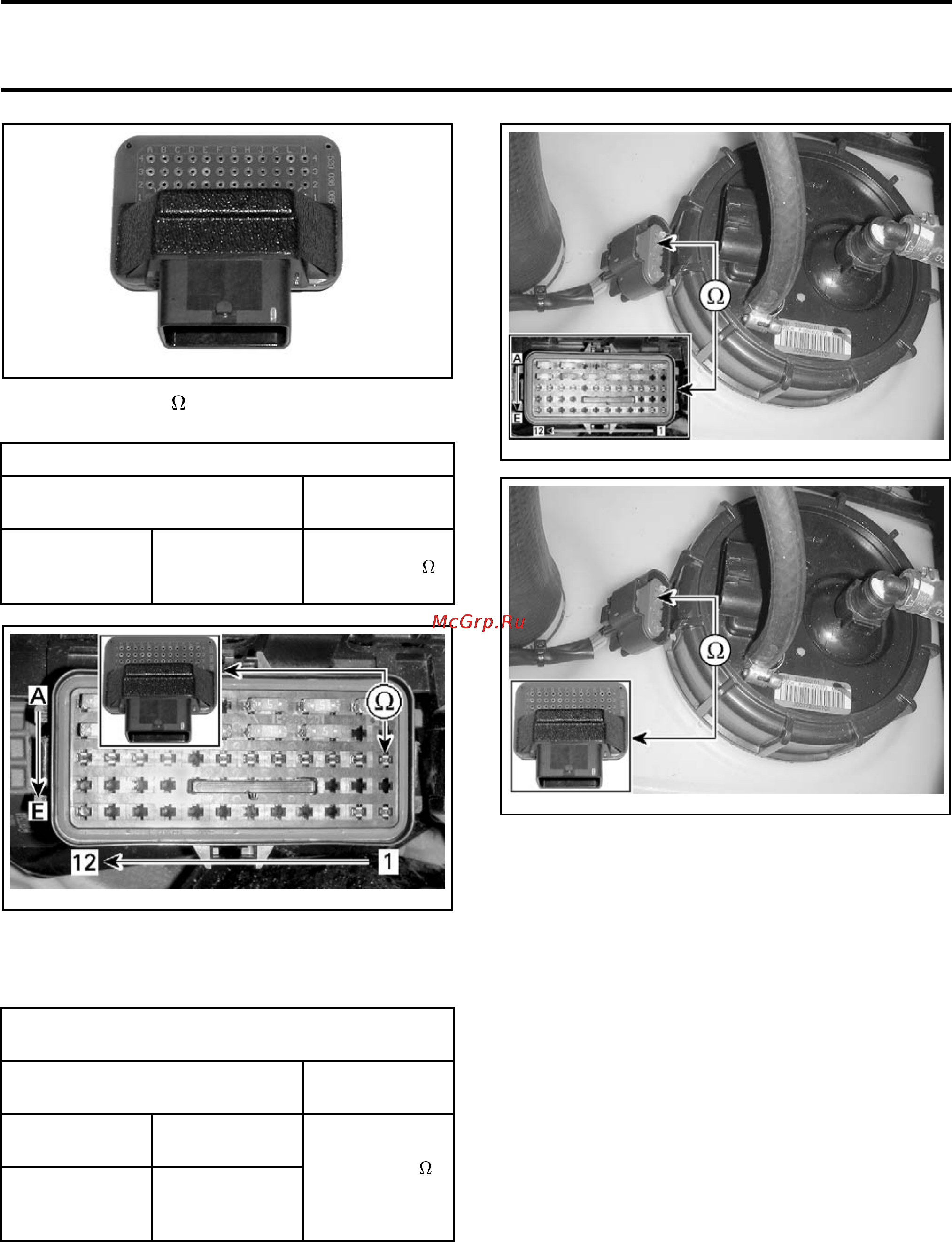

Section 04 FUEL SYSTEM
Subsection 03 (FUEL TANK AND FUEL PUMP)
529036166
Set multimeter to and test pump circuit as per
following table.
PUMP CIRCUIT TEST THROUGH FUEL PUMP
TEST PROBES
RESISTANCE @
20°C (68°F)
Fuse box #1
terminal C1
ECM
connector
B
pin B-M1
Approx. 12
smr2009-030-015_g
If test succeeded, the fuel pump and its wiring
harness are good.
If test failed, test wiring continuity as per table.
FUEL PUM
P HARNESS CONTINUITY
TEST (WIRING ONLY)
TEST PROBES
RESISTANCE @
20°C (68°F)
Pump harness
connector pin B
Fuse box #1
terminal C1
Pump harness
conne
ctor pin A
ECM
connector B
pin B-M1
Closeto0
(continuity)
smr2009-031-021_a
smr2009-031-021_b
Repair or replace wiring as required.
If every test succeeded and fuel pump still does
not work, try a new ECM. Refer to
ELECTRONIC
FUEL INJECTION
subsection.
Fuel Pump Removal
Release fuel pressure. Refer to
FUEL PUMP
in
this subsection.
Open front storage compartment cover and re-
move storage bin.
NOTE: Removing dashboard may help to give
some light on the working area.
Remove front ventilation box.
266 smr2009-031
