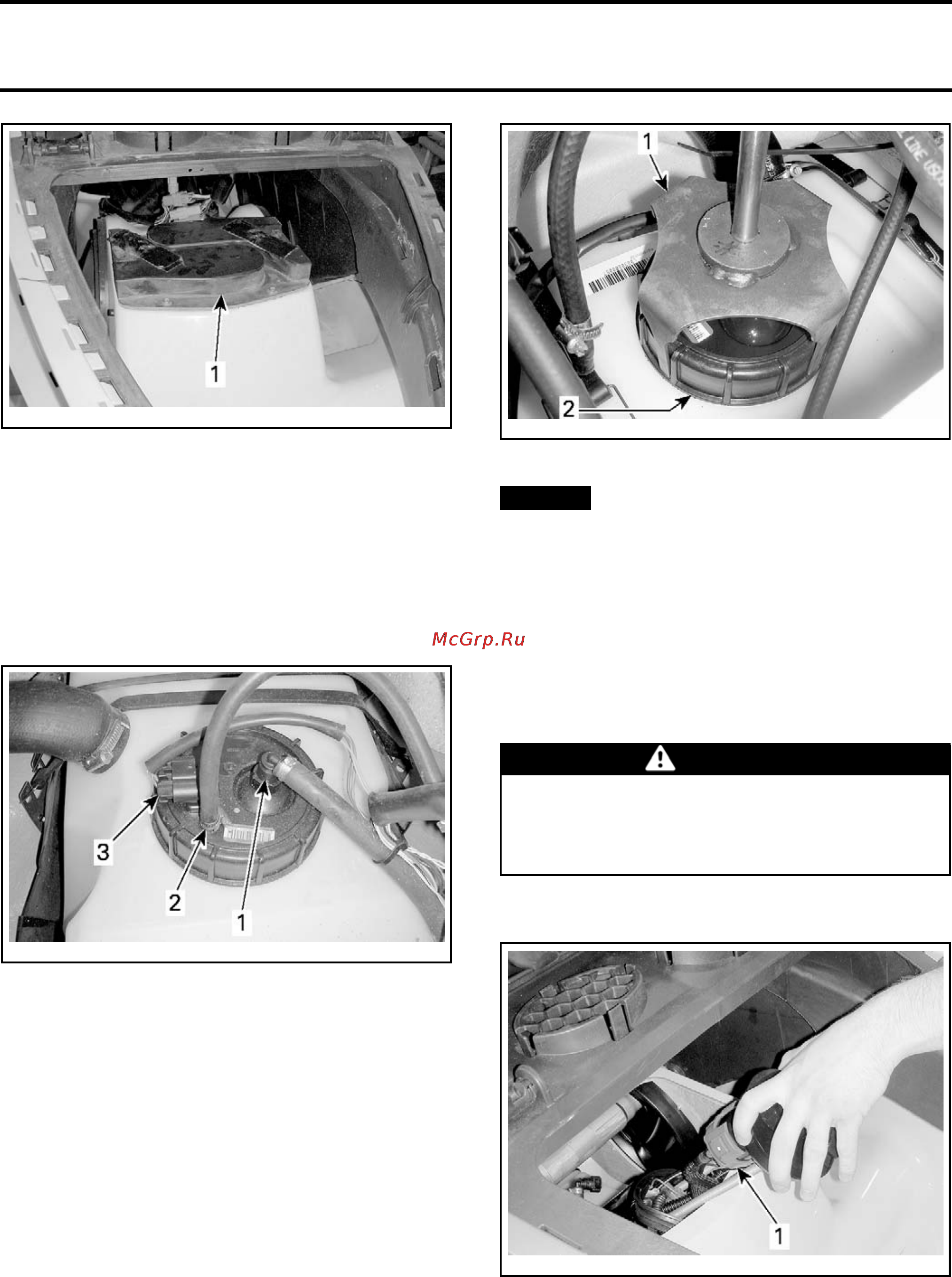

Section 04 FUEL SYSTEM
Subsection 03 (FUEL TANK AND FUEL PUMP)
smr2009-03
1-008_a
1. Ventilation box
Disconnect the negative battery terminal, refer to
CHARGING SYSTEM
subsection.
Disconnect fuel pump electrical connector.
Disconnect
the vent tube from the fuel pump.
Wrap shop rags around the high pressure fuel
hose fitting, then press on the release button of
the quick connect fitting and disconnect the hose.
smr2009
-031-017_b
1. Quick connect fitting (high pressure fuel hose)
2. Vent hose
3. Harnes
s connector
Unscrew the fuel pump retaining nut using the
FUEL PUMP MODULE SOCKET (P/N 529 036 125).
smr2009-031-022_a
1. Fuel pump module socket
2. Fuel pump re
taining nut
NOTICE
While pulling out the fuel pump
module, pay attention to the corrugated tubes
and fuel sensor float arm. Float arm can get
caught up and bend which will reduce fuel sen-
sor accuracy. If fuel pump module is dropped
or damaged, it must be replaced.
Slowly pull fuel pump module up through opening
until corrugated tubes contact sides of opening.
Tilt the fuel pump module as you slowly pull the
pump upwards.
WARNING
The uppe
r filter and fuel pump reservoir on
the fuel
pump module contain fuel which will
drain ou
t when fuel pump module is not in an
upright
position.
Carefully pull fuel pump module out.
smr2009-031-023_a
1. Pull out fuel pump module
smr2009-031 267
