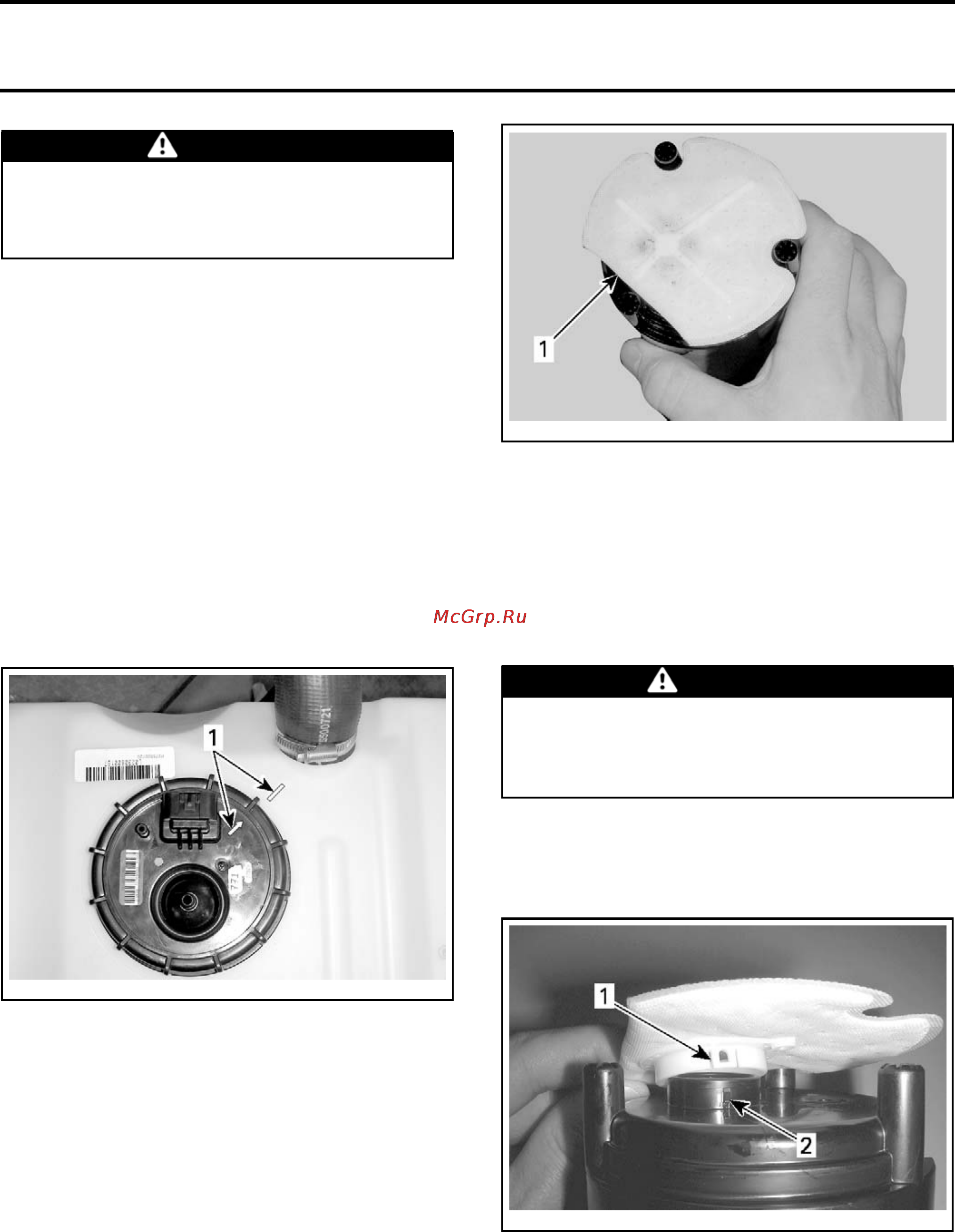

Section 04 FUEL SYSTEM
Subsection 03 (FUEL TANK AND FUEL PUMP)
WARNING
Always wipe off any fuel spillage from the
watercraft. When working with fuel or fuel
system and its components, always work in
a well ventilated area.
Fuel Pump Installation
Reverse the removal procedure however, pay at-
tention to the following.
Carefully insert fuel pump module in fuel tank so
as not to bend float arm.
Install a new fuel pump module gasket each time
the module is reinstalled.
NOTE: Wipe off parts to prevent fuel pump from
turning while torquing fuel pump nut.
Align arrow on top of fuel pump module with index
mark on top of fuel tank or fuel sensor accuracy
will be affected.
NOTE: Index mark and arrow locations are high-
lighted for clarity in following illustration.
smr2009
-031-024_a
FUEL PUMP MODULE INDEXING
1. IAlign marks
Apply to
rque values as per exploded view.
Carry out a
FUEL TANK LEAK TEST
and a
FUEL
SYSTEM HIGH PRESSURE LEAK TEST
. See pro-
cedures in this subsection.
FUEL FILTER
Fuel Fil
ter Inspection
Check if fuel filter is dirty. If so, replace it.
smr2009-031-025_a
1. Fuel filter
Fuel Filter Removal
NOTE: The lower fuel filter on the fuel pump mod-
ule does not require replacement under normal
operating conditions. Replace only if permanently
clogged or damaged.
Remove fuel pump. Refer to
FUEL PUMP
in this
subsection.
WARNING
The upper filter and fuel pump reservoir on
the fuel pump module contain fuel which will
drain out when fuel pump module is not in an
upright position.
Turn fuel pump upside down.
Using a small flat screwdriver, pry up the filter
locking tabs.
smr2008-022-013_a
1. Fuel filter locking tab (x2)
2. Filte
r locking pin (x2)
Pull filter off fuel pump reservoir housing.
Fuel Filter Installation
Align new filter with pump reservoir housing.
268 smr2009-031
