Section 04 FUEL SYSTEM

Subsection 03 (FUEL TANK AND FUEL PUMP)

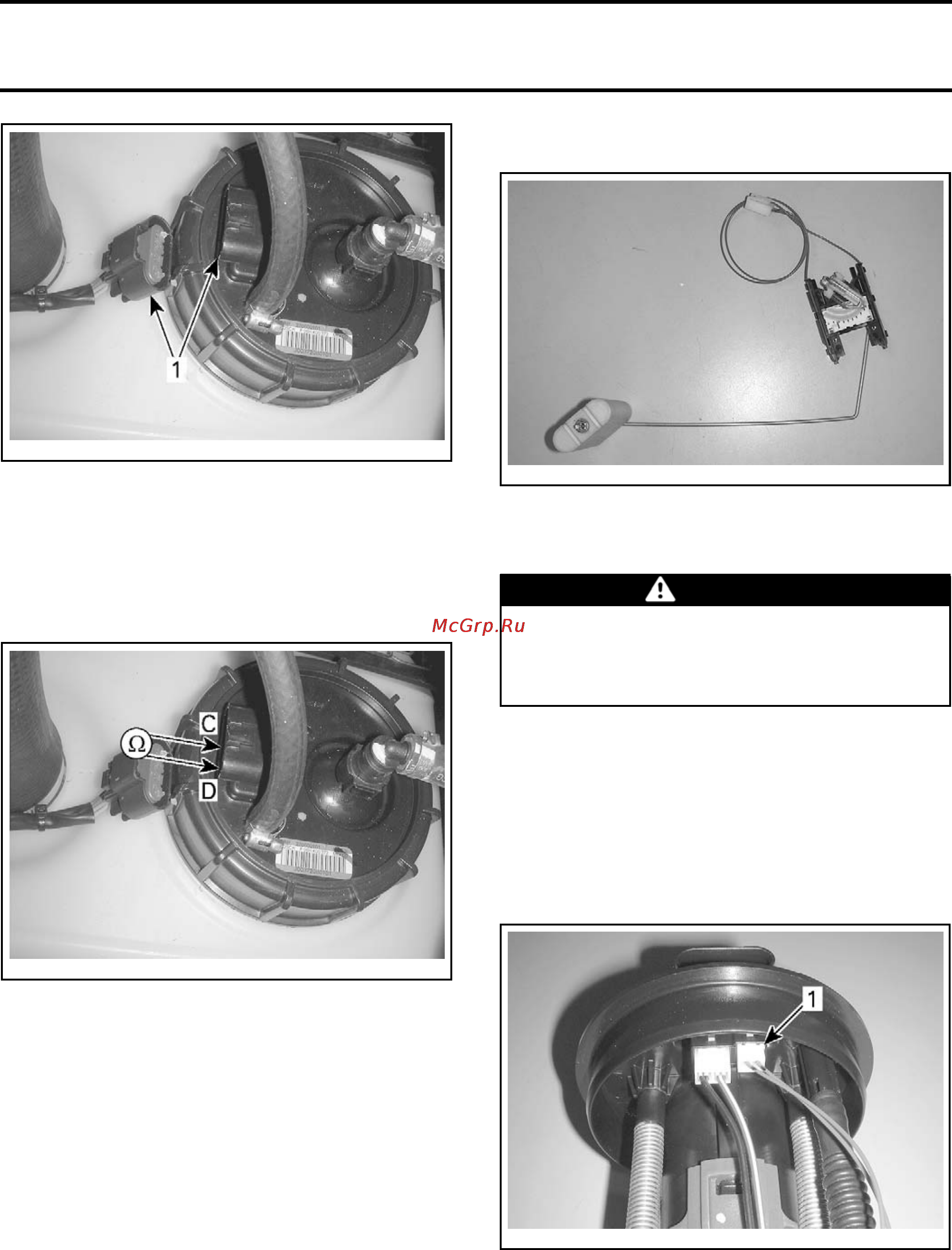

smr2008-022-018_f

TYPICAL — FUEL PUMP MODULE

1. Fuel pump module connector

Alternately drain then fill fuel tank and measure

the sensor resistance between pins C and D of the

fuel pump connector. See table in

FUEL LEVEL

SENSOR RESISTANCE TEST AT INFORMATION

CENTER

smr200

8-022-018_e

TYPICAL — FUEL LEVEL SENSOR RESISTANCE TEST

If readings are out of specifications, replace sen-

sor.

When everything else has been tested and fuel

level is still not working, try a new information

center.

Fuel Level Sensor Removal

smr2008-022-029

FUEL LEVEL SENSOR

Remove fuel pump module from fuel tank, see

FUEL PUMP REMOVAL

in this subsection.

WARNING

The upper filter and fuel pump reservoir on

the fuel pump module contain fuel which will

drain out when fuel pump module is not in an

upright position.

Drain all fuel from the upper fuel filter and fuel

pump reservoir in an appropriate container.

NOTE: Note routing of fuel level sensor wires

prior to disconnecting the sensor from the fuel

pump module flange.

Disconnect the fuel level sensor connector from

the fuel pump module upper flange.

smr2008-022-021_a

1. Fuel level sensor connector

Disconnect the ground wire from the pressure

regulator. Be careful not to bend the ground con-

tact on the pressure regulator.

smr2009-031 273
