Section 04 FUEL SYSTEM

Subsection 03 (FUEL TANK AND FUEL PUMP)

smr2008-02

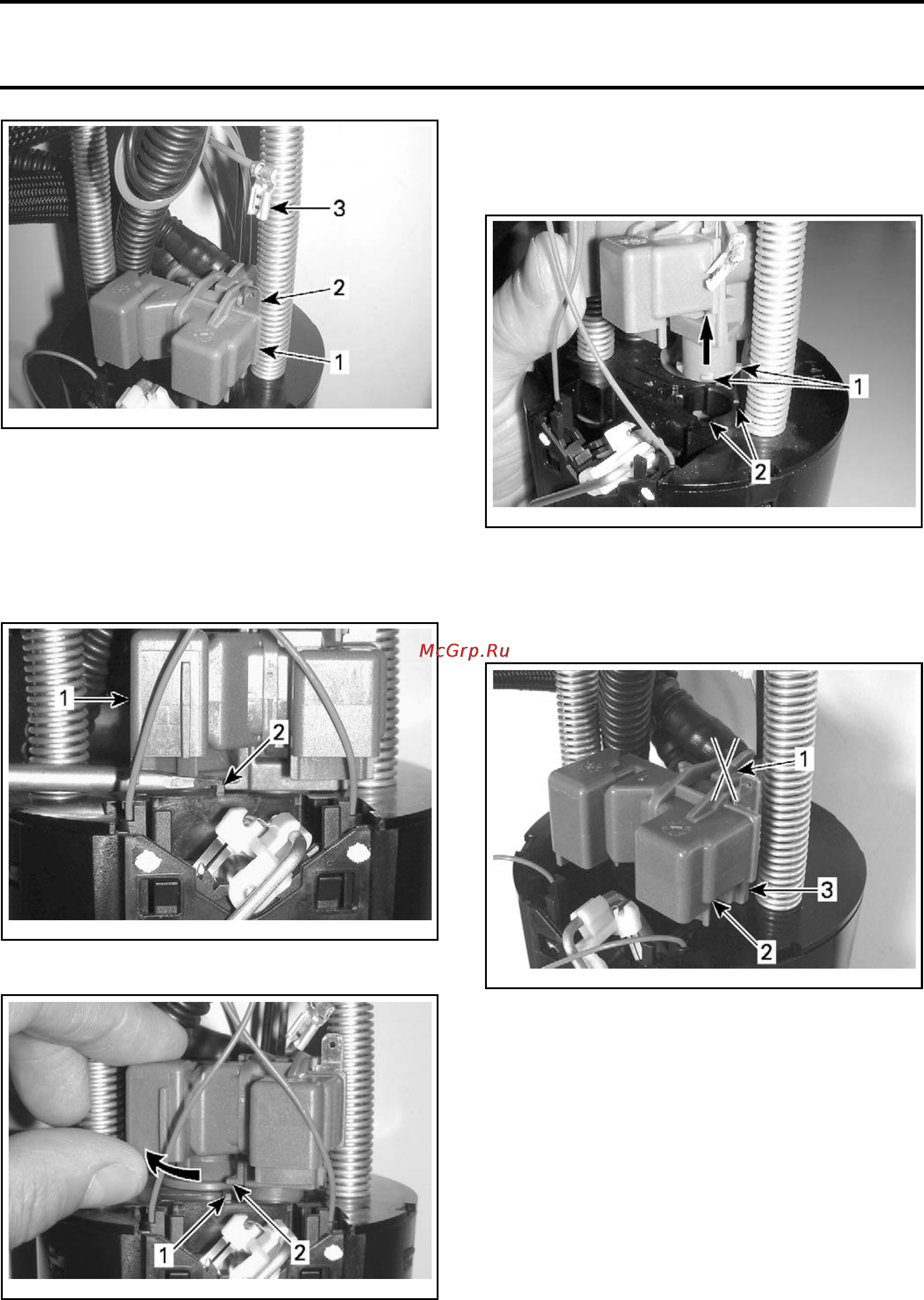

2-022_a

1. Pressure regulator

2. Ground wire contact on pressure regulator

3. Ground wir

e disconnected

Using a flat screwdriver, press down on the lock-

ing tab just below the pressure regulator to re-

lease it from the pump reservoir cover, and rotate

it clockwise simultaneously so that it slips over

the locking tab.

smr2008 022-023_a

1. Pressure regulator

2. Press

ure regulator locking tab

smr2008-022-024_a

1. Pressure regulator locking tab

2. Pressure regulator rotated clockwise over locking tab

Once the pressure regulator is rotate over the

locking tab, pull up on it to remove it from the

pump reservoir cover.

smr2008-022-025_a

1. Pressure

regulator alignment tabs

2. Fuel pump reservoir alignment tabs

NOTE: The pressure regulator cover must not be

removed from the pressure regulator housing as-

sembly.

smr2008-022-028_a

1. Do not remove pressure regulator cover at locking tabs

2. Pressure regulator cover

3. Pressure regulator housing

Push in on the release tabs at the top of the fuel

level sensor to unlock it from the fuel pump reser-

voir housing, and simultaneously pull up on the

fuel level sensor to remove it.

274 smr2009-031
