Section 04 FUEL SYSTEM

Subsection 03 (FUEL TANK AND FUEL PUMP)

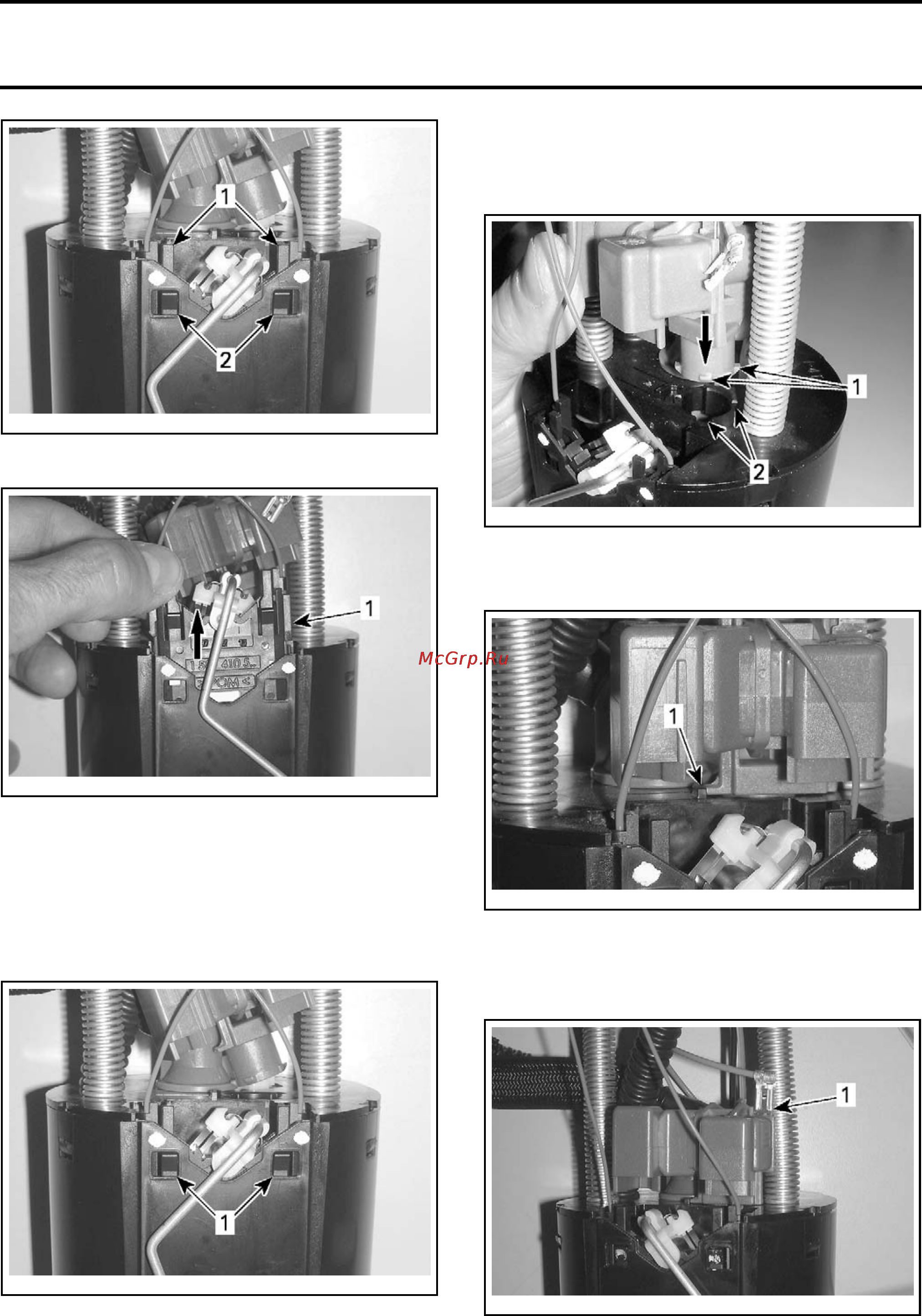

smr2008-022-026_a

1. Fuel level sensor release tabs

2. Locking pins

smr2008-022-027_a

1. Pull up on fuel level sensor

Fuel Level Sensor Installation

Installation is the reverse of the removal proce-

dure however, pay attention to the following.

Ensure fuel level sensor locking pins are properly

engaged into the fuel pump reservoir.

smr2008-022-026_b

1. Ensure engagement of sensor locking pins

Align the fuel pressure regulator tabs into the

pump reservoir cover and turn it counterclock-

wise until it locks properly.

smr2008-022-025_b

PRESSURE R

EGULATOR INSERTION INTO PUMP RESERVOIR

COVER

1. Pressure regulator alignment tabs

2. Fuel pump

reservoir alignment tabs

smr2008-022-030_a

TAB UP W

HEN PRESSURE REGULATOR PROPERLY LOCKED

1. Pressure regulator locking tab

Reconnect the ground wire onto the pressure reg-

ulator.

smr2008-022-031_a

1. Pressure regulator ground wire installed

smr2009-031 275
