Section 05 ELECTRICAL SYSTEM

Subsection 01 (CONTROLLER AREA NETWORK (CAN))

CAN Continuity Tests

If a communication problem is present, perform

the appropriate continuity test relating to the com-

ponent reported by B.U.D.S.

Test wire continuity between the corresponding

terminal of the CAN bus bar in fuse box no. 2 and

the suspected component as follows.

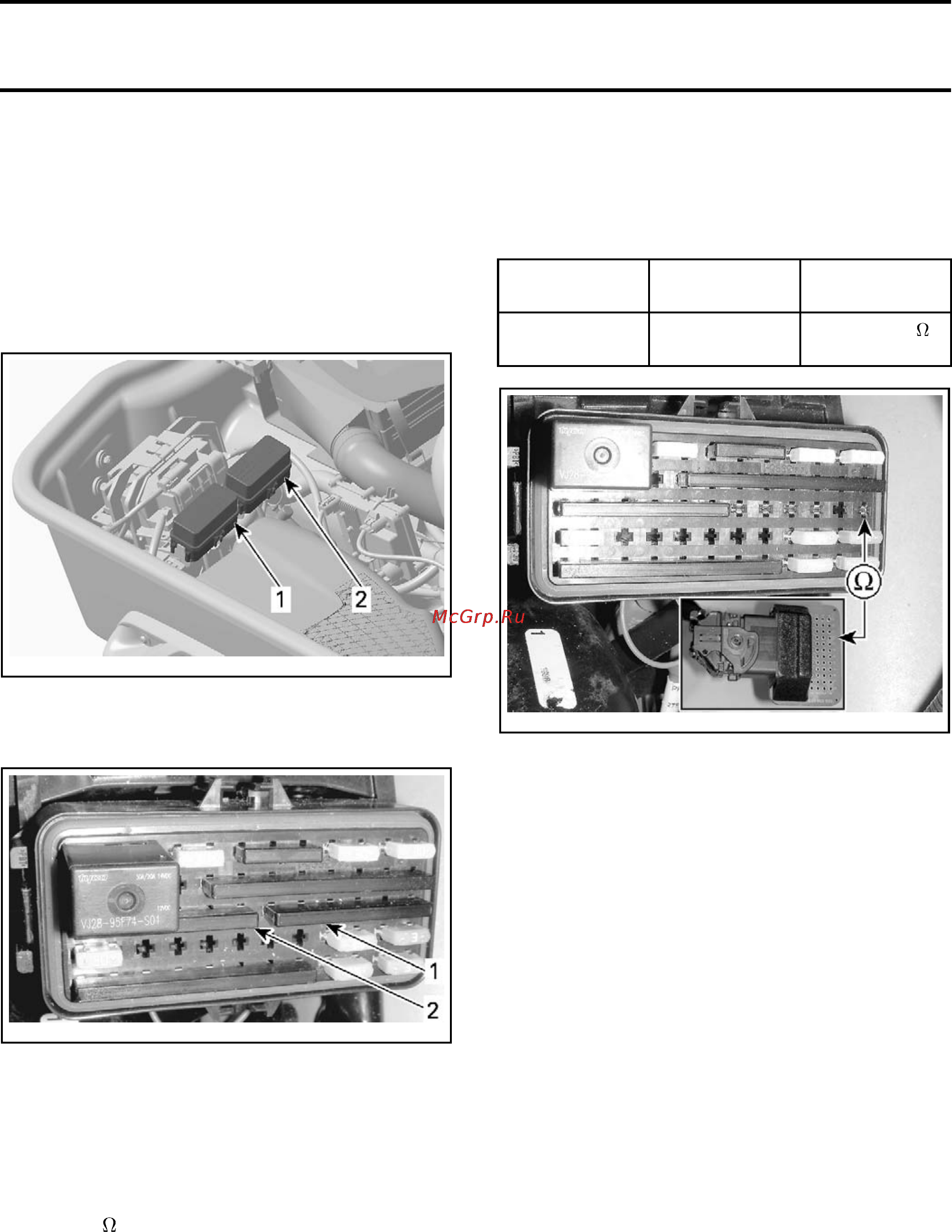

Remove cover from fuse box no. 2.

2009-027-009_a

1. Fuse box no. 1

2. Fuse box no

Pull out both CAN bus bars.

smr2009-027-010_d

FUSE BOX #2

1. CAN LO bus bar

2. CAN HI bus bar

Inspect bus bar condition.

Disconnect the connector from the component to

be tested. Refer to its appropriate subsection.

Use the

FLUKE 115 MULTIMETER (P/N 529 035 868)

and select .

Refer to the

CAN BUS DIAGRAM

above and read

wire resistance between the proper bus bar termi-

nal and the component terminal. Check the con-

tinuity of the WHITE/RED wire and the continuity

of the WHITE/BLACK wire.

The following gives an example between the CAN

LO wire and the ECM.

NOTE: When working with the ECM, install the

ECM ADAPTER TOOL (P/N 529 036 166) on ECM "B"

connector.

ECM

CONNECTOR

FUSE BOX

TERMINAL

RESISTANCE

B-C2 FB2-C1

Closeto0

(continuity)

smr2009-

048-001_a

EXAMPLE CHECKING ECM CAN LO WIRE

If continuity is good, CAN lines are functional.

If continuity is not good, check wiring, connectors

and terminals condition.

NOTE: It m

ay be necessary to check the continu-

ity to mor

e than one component.

Reconnect connectors and reinstall removed

parts.

smr2009-048 279
