Section 05 ELECTRICAL SYSTEM

Subsection 04 (CHARGING SYSTEM)

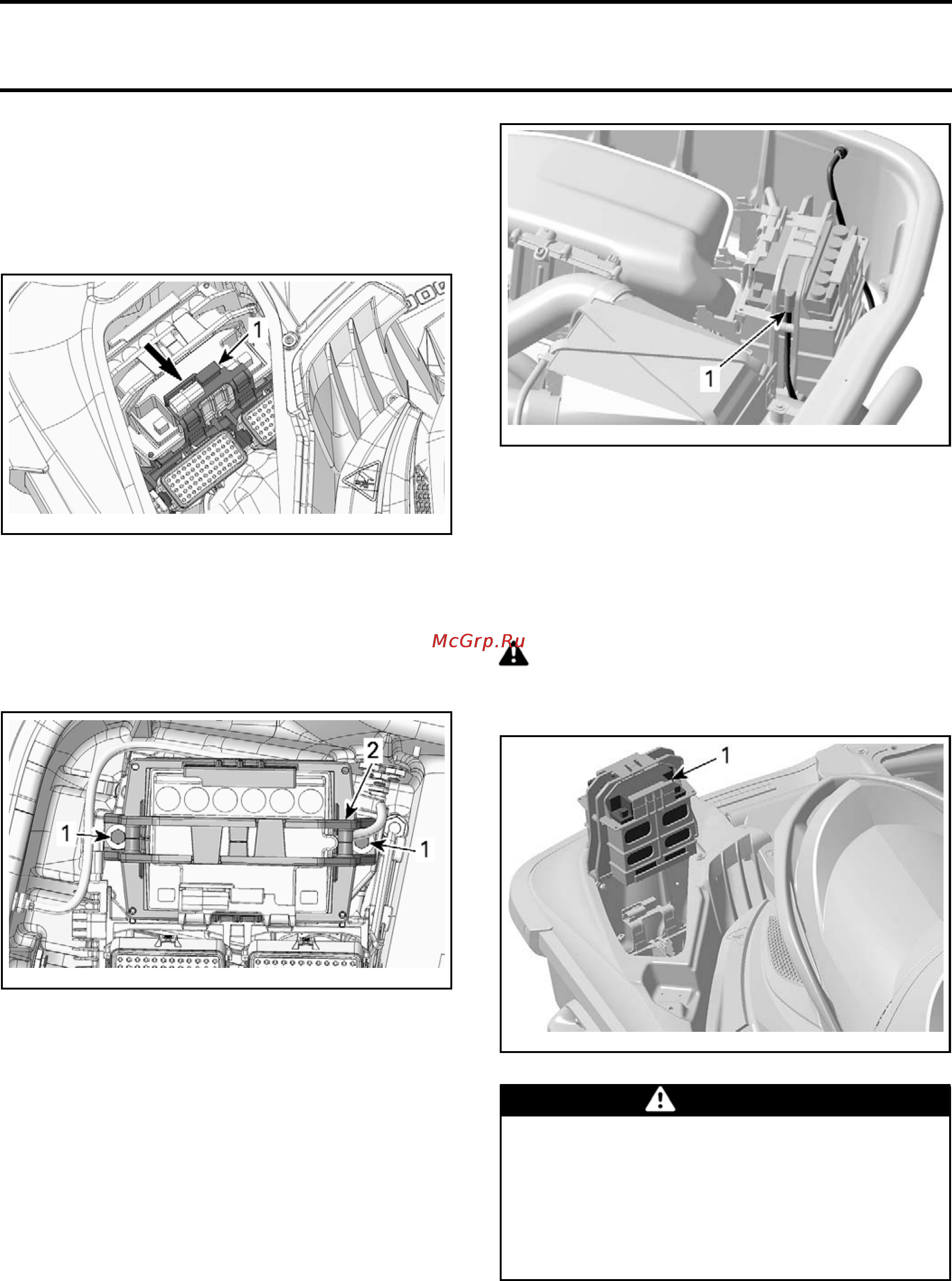

6. Remove the electrical component support from

the battery holder.

6.1 Lift and push the top of electrical compo-

nent support forward to unlock it from bat-

tery holder.

ssi2009-002-008_a

1. Electrical component support

6.2 Pull up th

e components support to unhook

from batt

ery holder and move it aside to

make room

for removing battery.

7. Remove and discard both screws securing bat-

tery holder to battery holder base.

ssi2009-002-009_a

1. Retaining screws

2. Battery holder

8. Disconnect the vent hose from battery.

smr2009-033-009_a

1. Disconnect here

9. Install a piece of hose (same type as vent hose)

with a cap or small hose pincher onto the bat-

tery vent to prevent electrolyte spillage when

removing the battery.

10. Remove battery with battery holder from ve-

hicle.

CAUTION Be careful not to disconnect the

hose from the battery vent and cause an elec-

trolyte spill in the watercraft.

smr2009-033-008_a

1. Vent plugged for removal

WARNING

Electrolyte is poisonous and corrosive. Avoid

contact with eyes, skin and clothing. Wear a

suitable pair of non-absorbent gloves when

removing the battery by hand. Rinse any

affected area with clear running water for

at least 15 minutes, then seek professional

medical attention.

304 smr2009-033
