Section 05 ELECTRICAL SYSTEM

Subsection 04 (CHARGING SYSTEM)

smr2006-023-003_a

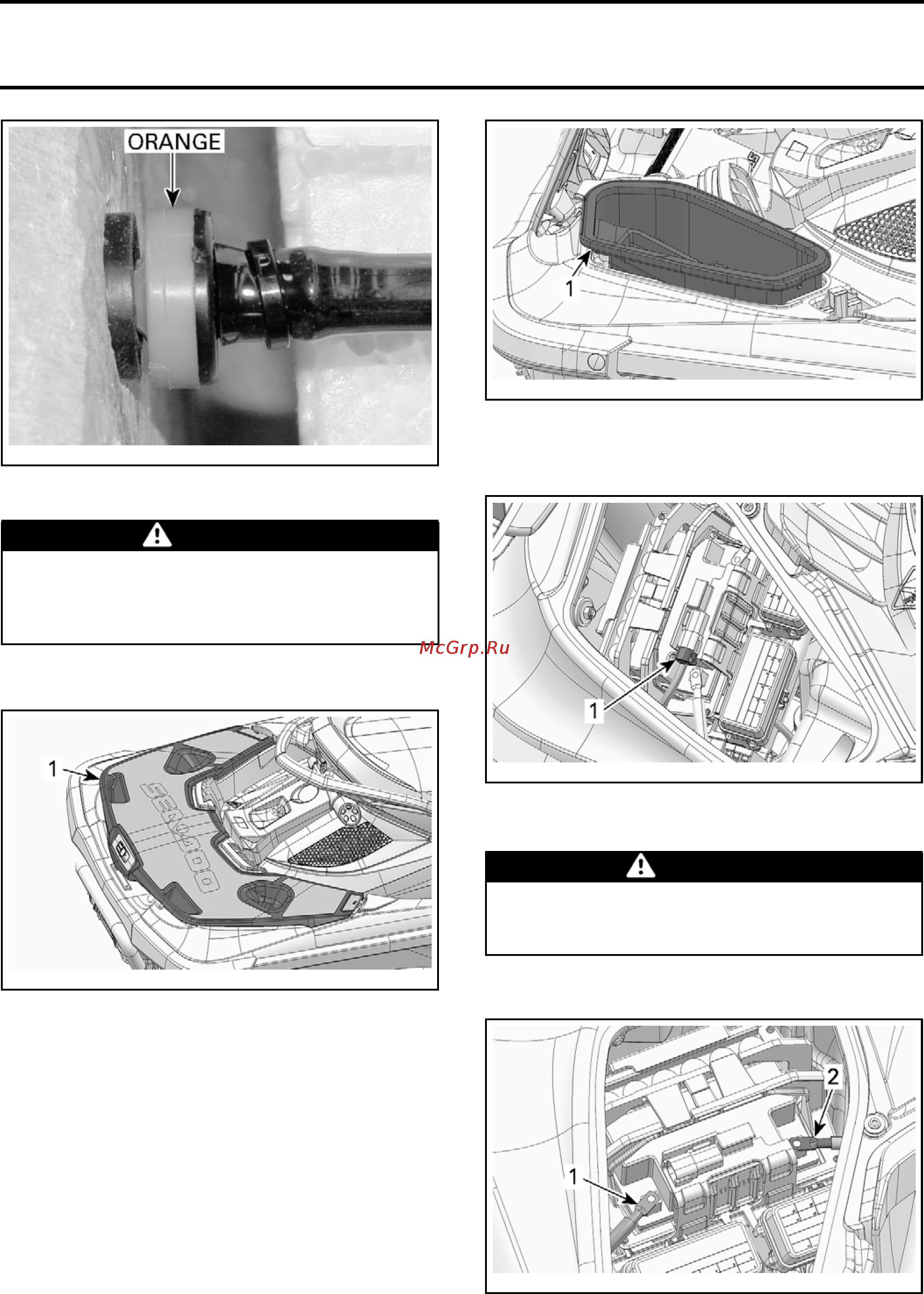

Battery Removal

WARNING

The BLACK negative battery cable must al-

ways be disconnected first and reconnected

last. Never charge or boost battery while in-

stalled in watercraft.

1. Open the boarding platform.

ssi2009-002-002_a

1. Boarding platform

2. Remove the starboard (RH) storage bin.

ssi2009-002-003_a

1. Storage bin

3. Disconnect the diagnostic connector from its

holder.

ssi2009-002-004_a

1. Disconn

ect

4. Disconnect the BLACK (-) battery cable.

WARNING

Always disconnect battery cables exactly in

the specified order, BLACK (-) battery cable

first then the RED (+) cable last.

5. Disco

nnect the RED (+) cable.

ssi2009-002-005_a

1. BLACK (-) cable

2. RE

D (+) cable

smr2009-033 303
