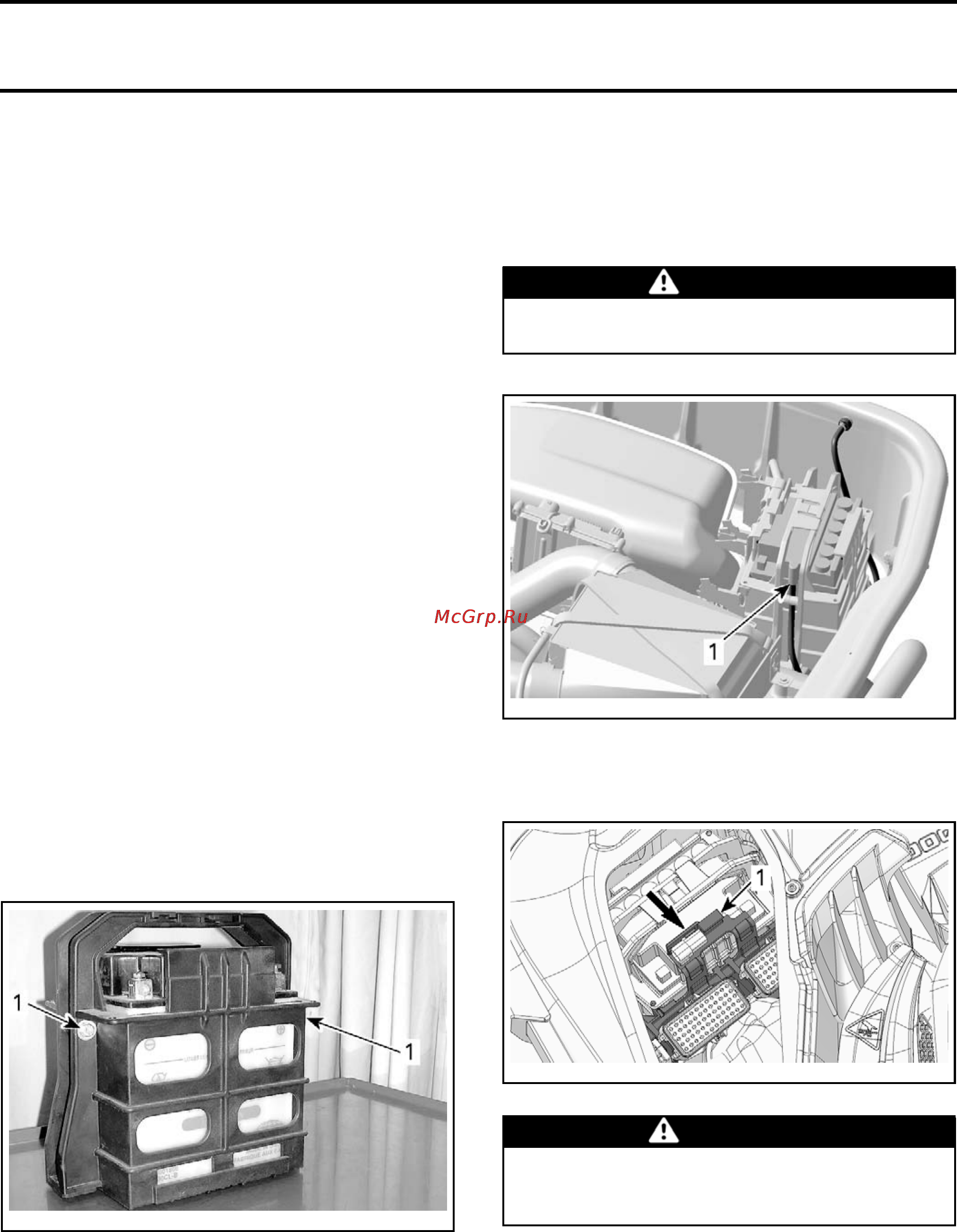

Section 05 ELECTRICAL SYSTEM

Subsection 04 (CHARGING SYSTEM)

NOTE: Some chargers have a polarity protec-

tion feature which prevents charging unless the

charger leads are connected to the correct battery

terminals. A completely discharged battery may

not have enough voltage to activate this circuitry,

even though the leads are connected properly.

This will make it appear that the battery will not

accept a charge. Follow the charger manufac-

turer's instruction on how to bypass or override

this circuitry so that the charger will turn on and

charge a low-voltage battery.

3. Since battery chargers vary in the amount of

voltage and current they provide, the time re-

quired for the battery to accept a measurable

charger current may be up to 10 hours or more.

4. If the charging current is not up to a measurable

amount after 10 hours, the battery should be

replaced.

5. If the charging current is measurable before

the end of the 10 hour period, the battery is

good and charging should be completed at a

lower rate as specified in

ACTIVATION OF A

NEW BATTERY

6. It is recommended that any battery recharged

using this procedure be tested under load prior

to returning it to service.

Battery Installation

1. Install battery in its holder and lock holder.

2. Secure battery holder with its retaining screws

if they were present at removal.

smr

2009-005-004_a

1. Torque to 6 N•m (53 lbf•in)

3. Install the battery in the watercraft using new

screws.

4. Tighten battery holder screws to 14 N•m

(124 lbf•in).

5. Remove the temporary hose used to plug the

battery vent.

6. Reconnect the watercraft vent hose to the bat-

tery vent outlet. Make sure vent hose is not

pinched or bent.

WARNING

Vent hose must be free and open. Avoid skin

contact with electrolyte.

smr2009-033-009_a

1. Connect

here

7. Attach the electrical component support to the

battery holder.

ssi2009-002-008_a

1. Electrical component support

WARNING

Always connect battery cables in the spec-

ified order, RED positive cable first, BLACK

negative cable last.

8. Con

nect RED (+) cable.

9. Connect BLACK (-) cable last.

310 smr2009-033
