Section 05 ELECTRICAL SYSTEM
Subsection 05 (STARTING SYSTEM)
START/STOP SWI
TCH INPUT VOLTAGE TEST
SWITCH
POSITION
8-PIN
CONNECTOR
OF
DIAGNOSTIC
HARNESS
VOLTAGE
Released Battery voltage
Pressed and held
Pins 1 and 2
Close to 0 Vdc
smr2009-030-033_a
If both tests succeeded, the START/STOP switch
and its circuit, the control circuit and ECM are
functional.
If any test failed, perform the following test.
START/ST
OP SWITCH INPUT VOLTAGE TEST
SWITCH
POSITION
8-PIN CONNECTOR
OF DIAGNOSTIC
HARNESS
VOLTAGE
Released
Pin 2 and battery
ground
Battery voltage
smr2009-030-033_e
If test failed, problem is in the power circuit com-
ing from fuse box 2. Perform the
START/STOP
SWITCH POWER CIRCUIT TEST
.
If test succeeded, problem is in the control circuit
going to ECM. Perform the
START/STOP SWITCH
CONTROL CIRCUIT TEST
.
Start/Stop Switch Power Circuit Test
Keep the same test setup as for the
START/STOP
SWITCH OPERATION TEST
.
Remove cover from fuse box 2. Refer to
POWER
DISTRIBUTION
.
2009-027-
009_a

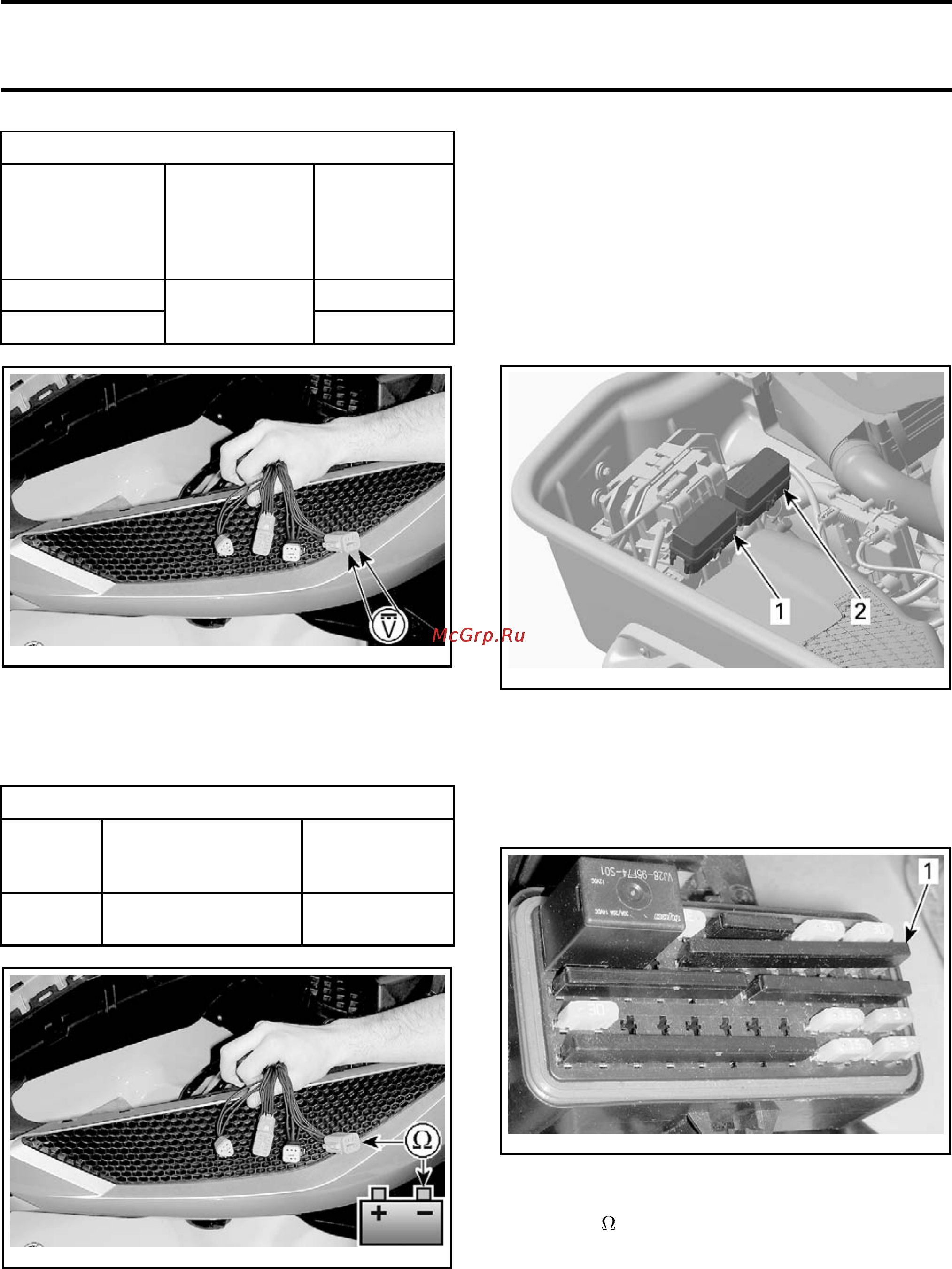

1. Fuse box 1
2. Fuse box 2
Slightly r
aise the end of the long bus bar just
enough to
probe the fuse box terminal without
losing co
ntact between all the terminals and the
bus bar.
smr2009-034-001_a
1. Slightly raise this end
Use the FLUKE 115 MULTIMETER (P/N 529 035 868)
and select .
Test continuity of the circuit as per following table.
316 smr2009-034
