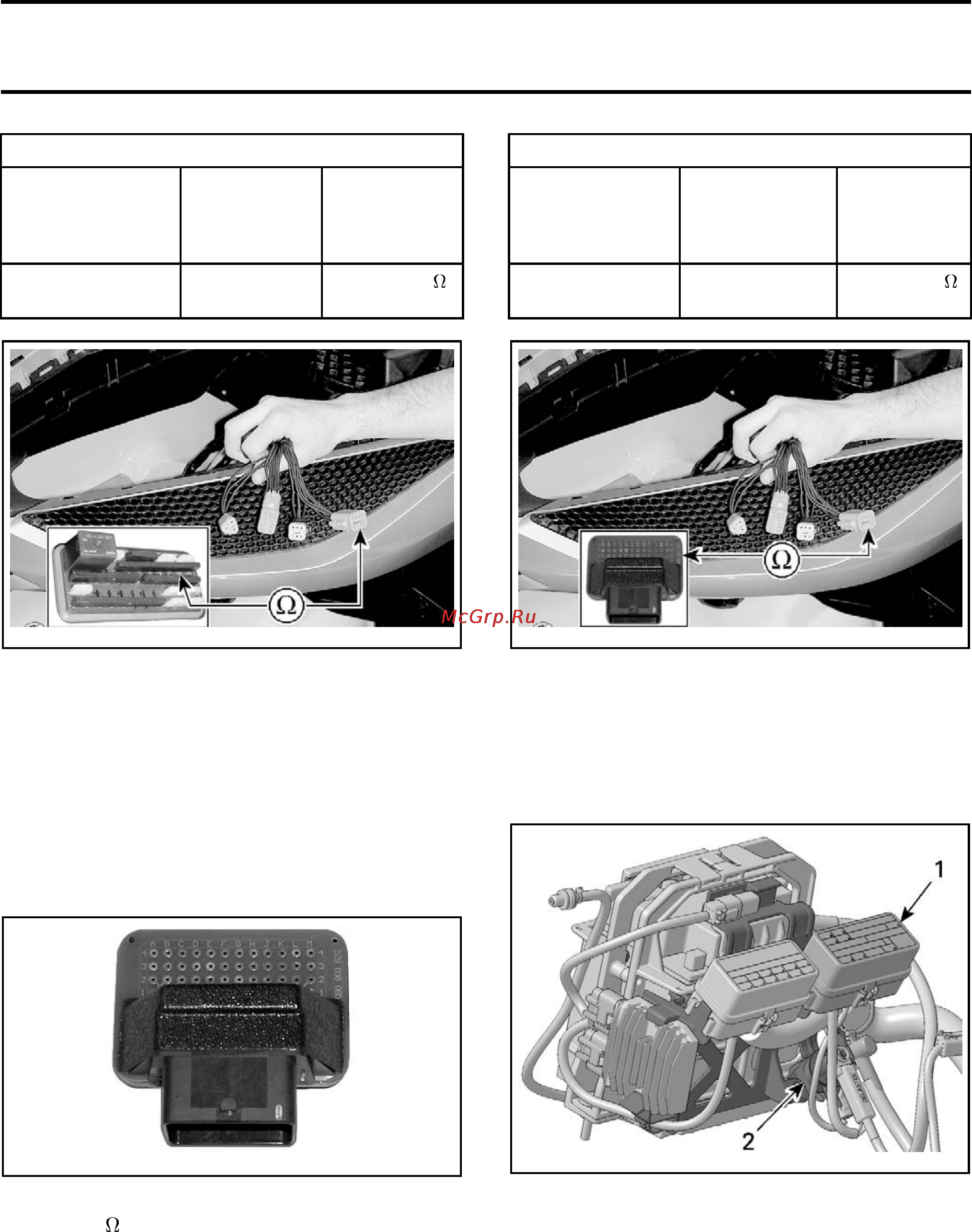

Section 05 ELECTRICAL SYSTEM
Subsection 05 (STARTING SYSTEM)
POWER CIRCUIT T
EST
8-PIN
CONNECTOR
OF DIAGNOSTIC
HARNESS
FUSE BOX 2 RESISTANCE
Pin 2 Terminal B2
Closeto0
(continuity)
smr2009-030-033_f
If test succeeded, the circuit is functional.
If test failed, repair wiring/connectors.
Start/Stop Switch Control Circuit Test
Keep the same test setup as for the
START/STOP
SWITCH OPERATION TEST
.
Disconnect the B connector from ECM.
Install
ECM ADAPTER TOOL (P/N 529 036 166) on
ECM connector.
529036166
Use the FLUKE 115 MULTIMETER (P/N 529 035 868)
and select .
Test continuity of the circuit as per following table.
CONTROL CIRCUI
T TEST
8-PIN
CONNECTOR
OF DIAGNOSTIC
HARNESS
ECM
CONNECTOR
B
RESISTANCE
Pin 1 B-D1
Closeto0
(continuity)
smr2009-030-033_g
If test succeeded, circuit is functional.
If test fai
led, repair harness/connectors.
STARTER SO
LENOID
Solenoid is located below fuse box 2.
smr2009-034-002_b
1. Fuse box 2
2. Solenoid
To reach the solenoid, detach fuse box 2 from its
rack. Move fuse box aside to gain access.
smr2009-034 317
