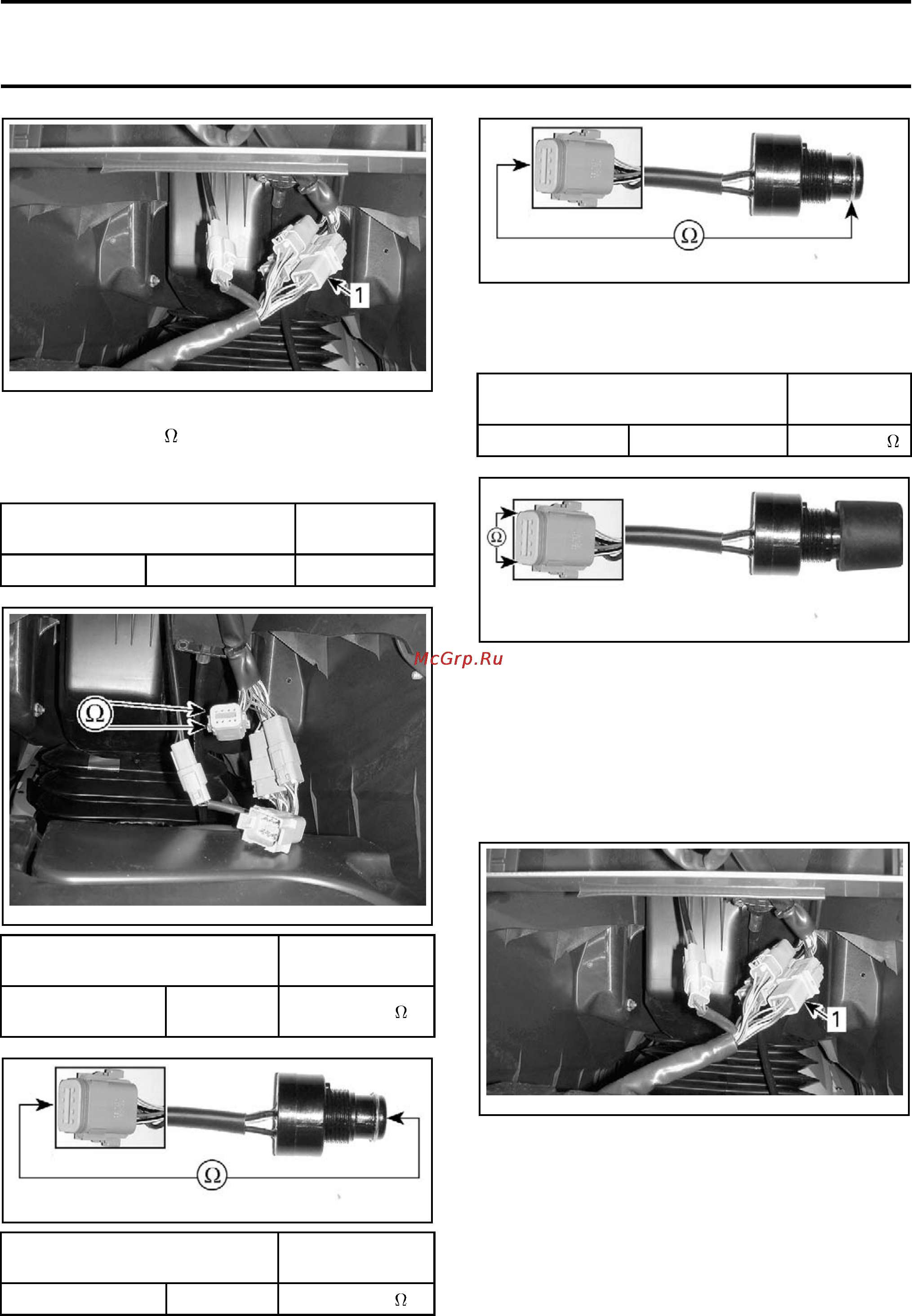

Section 05 ELECTRICAL SYSTEM
Subsection 06 (DIGITALLY ENCODED SECURITY SYSTEM (D.E.S.S.))
smr2009-042-005_b
1. 8-pin conne
ctor here
Set multimeter to .
Probe D.E.S
.S. post terminals to check continuity
as follows.
8-PIN CONNECTOR
D.E.S.S. POST HARNESS
RESISTANCE
@ 20°C (68°F)
Pin 3 Pin 5
Open circuit
smr2009-035-008_a
8-PIN CONNECTOR
D.E.S.
S. POST HARNESS
RESISTANCE
@20°C(
68°F)
Pin 4
Post
termin
al
Closeto0
smr2009-035-001_a
8-PIN CONNECTOR
D.E.S.S. POST HARNESS
RESISTANCE
@ 20°C (68°F)
Pin 3 Post ring
Closeto0
smr2009-035-001_b
D.E.S.S. Key on Post
Probe D.E.S.S. post terminals to check continuity
as follows.
8-PIN CONNEC
TOR
D.E.S.S. POST HARNESS
RESISTANCE
@ 20°C (68°F)
Pin 3 Pin 5
Closeto0
smr2009-035-002_a
Reconnect
D.E.S.S. post connectors.
If any continuity test fails, replace D.E.S.S. post.
D.E.S.S. P
ost Vehicle Harness
Continuity Test
Disconnect the 8-pin connector attached to the
vehicle harness of the D.E.S.S. post.
smr2009-042-005_b
1. 8-pin connector here
Discon
nect the "B" connector from ECM. Refer to
ELECTR
ONIC FUEL INJECTION
subsection.
Install the
ECM ADAPTER TOOL (P/N 529 036 166)
on ECM connector.
Probe vehicle harness terminals to check continu-
ityasfollows.
smr2009-035 331
