Section 05 ELECTRICAL SYSTEM
Subsection 07 (GAUGE)

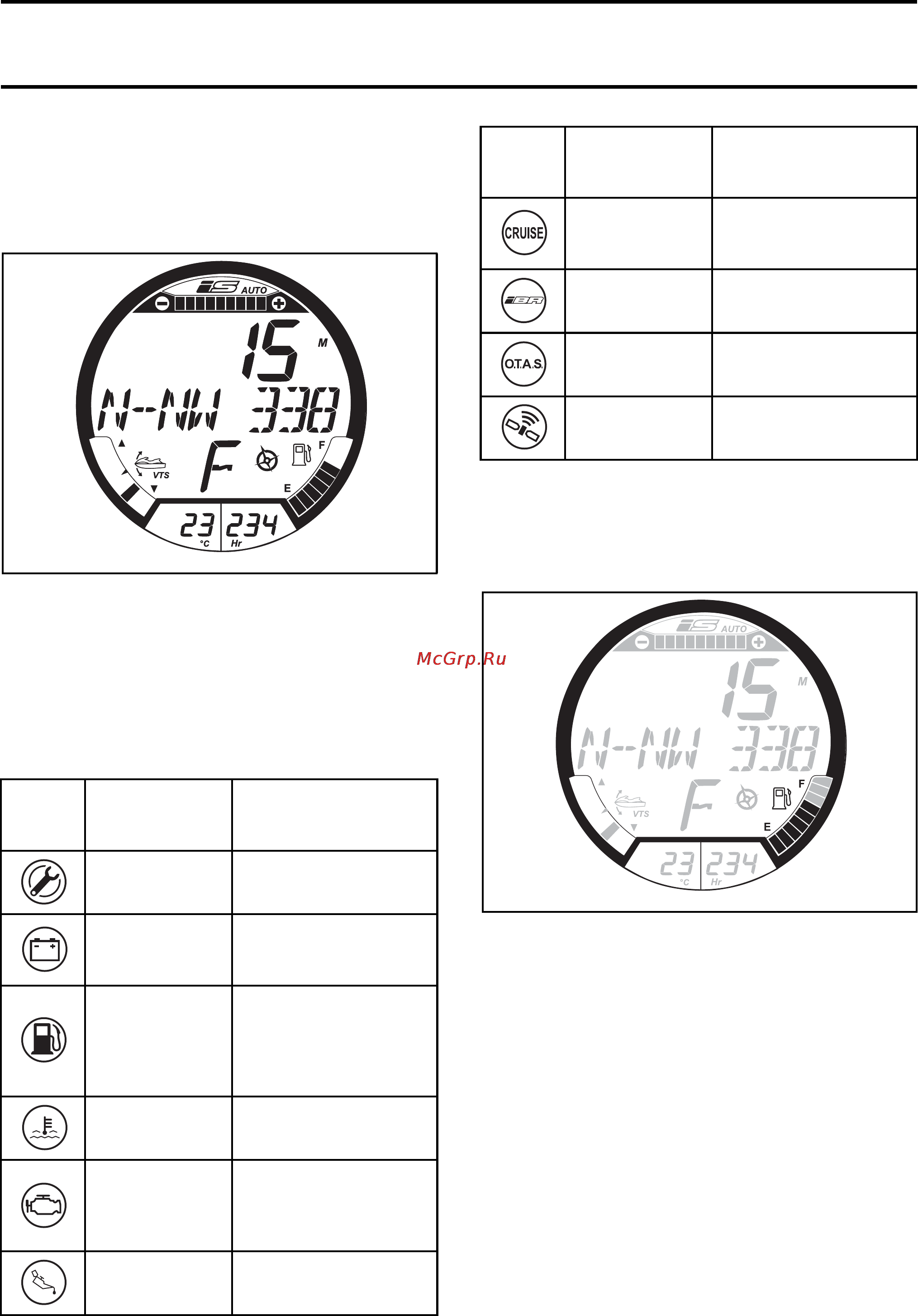

The numerical and multifunction displays in the
digital screen can be used to display various indi-
cations, or for selecting modes of operation and
changing settings as explained in their respective
subsections.
smo2009-0
02-114_j
DIGITAL SCREEN
4) Indicator Lights
Indicator lights (pilot lamps), located in the
speedometer and tachometer indicator, inform
you of a selected function, a normal condition, a
system anomaly, or a serious malfunction.
An indicator light may be accompanied by a
scrolling message in the multifunction display.
PILOT
LAMPS
(ON)
MESSAGE
DISPLAY
DESCRIPTION
MAINTENANCE
REMINDER
Maintenance required
LOW or HIGH
BATTERY
VOLTAGE
Low/high battery
voltage
LOW-FUEL
Low fuel level, approx.
20% tank capacity,
14 L (3.7 U.S. gal.)
or fuel level sensor
disconnected
HIGH
TEMPERATURE
Engine or exhaust
system overheating
CHECK
ENGINE or
LIMP HO
ME
MODE
Check engine (minor
fault req. maint.) or
LIMP HO
ME MODE
(major eng. fault)
LOW OIL
PRESSURE
Low oil pressure
PILOT
LAMPS
(ON)
MESSAGE
DISPLAY
DESCRIPTION
_
CRUISE mode or
SLOW SPEED MODE
engaged
_
iBR system fault
_
O.T.A.S. system fault
_
Good GPS uplink
5) Fuel Level
A bar gauge located in the bottom RH side of the
digital screen continuously indicates the amount
of fuel in the fuel tank while riding.
smo2009-002-114_k
FUEL LEVEL INDICATION
When the
fuel tank is full, 8 segments (bars) of
the indi
cator are turned on. The top segment is
not used
.
When there is only 2 segments of fuel indicated
(approximately 20% fuel tank capacity or 14 L
(3.7 U.S. gal.), the low fuel indicator light will
come on to advise you of the low fuel condition.
See
INDICATOR LIGHTS
.
An audible warning (one long beep) will be heard
periodically as long as the low fuel condition ex-
ists.
6) VTS P
osition
The VTS position indication located in the bottom
LH side of the digital screen indicates the riding
attitude of the watercraft.
336 smr2009-036
