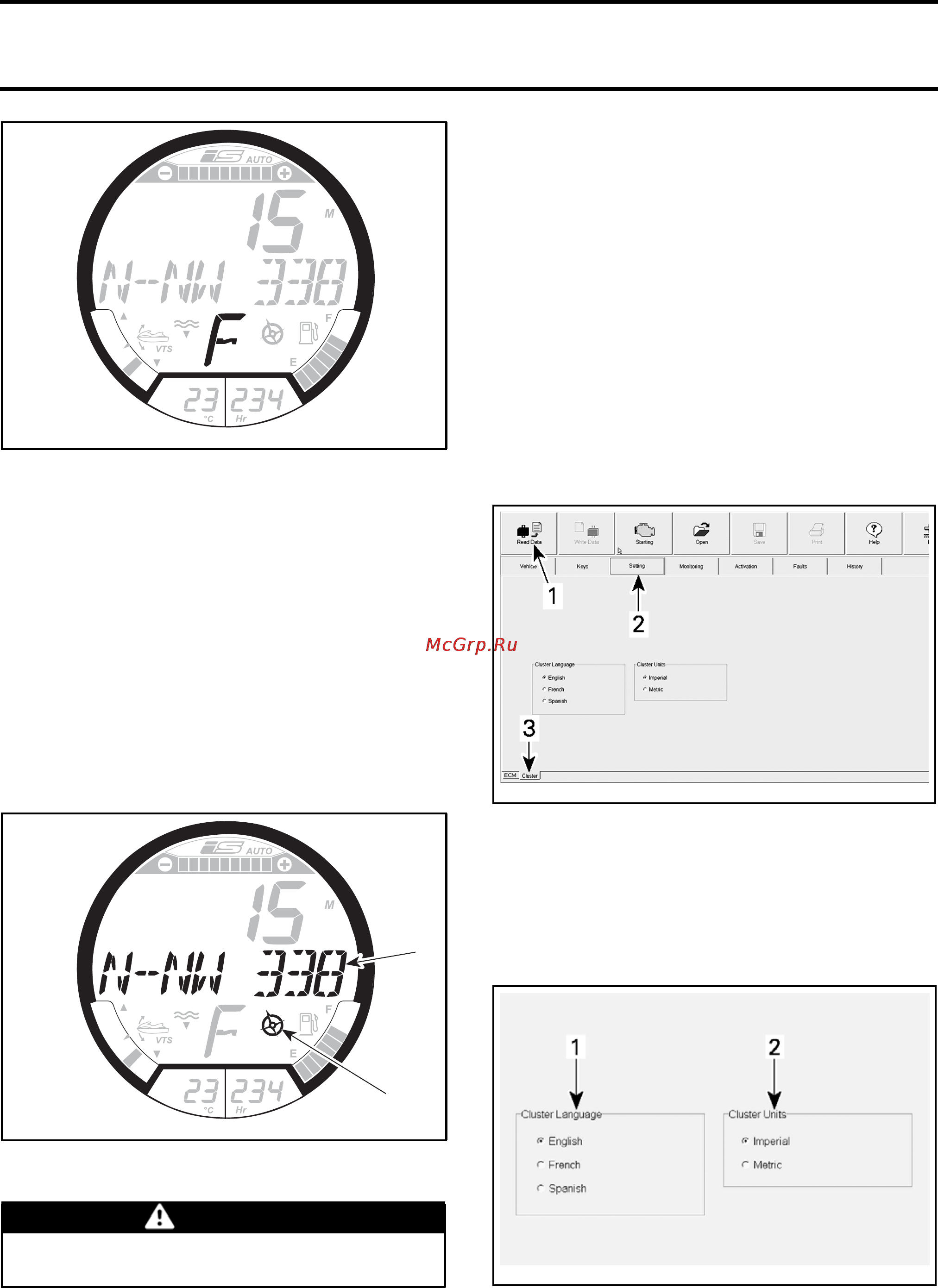

Section 05 ELECTRICAL SYSTEM
Subsection 07 (GAUGE)
smo2009-002-114_u
IBR POSITION - FORWARD ILLUSTRATED (F)
14) Compass
A GPS incorporated in the information center pro-
vides the indication in the multifunction display.
The cardinal points, intermediate cardinal points,
as well as the azimuth the watercraft is travelling
are displayed in the multifunction display by de-
fault when the watercraft is moving.
For a compass indication to be displayed, the GPS
must first have a good link with the navigation
satellites as confirmed by the COMPASS active
indicator being on in the digital screen. The wa-
tercraft must also be traveling at a speed over
5km/h(3MPH).
2
1
smo2009-002-114_v
TYPICAL
1. Compass indication
2. Compass active indicator
WARNING
Use the compass as a guide only. Not to be
used for precision navigation purposes.
Setting Language and Units of
Measurement
Connect vehicle to the latest applicable B.U.D.S.
software, refer to the
COMMUNICATION TOOLS
AND B.U.D.S. SOFTWARE
subsection.
1. Press the START/STOP button to energize the
electrical system.
NOTE: You will need to press the START button
every three minutes or the electrical system will
shut off.
2. Select the Read Data button.
3. Choose the Setting tab at the top of the page.
At the bottom LH side of the setting page, select
the Cluster tab.
smr2009-036-001_a
1. Read Data
2. Setting tab
3. Cluster tab
In the Cluster Language field, choose the desired
unit of language, English, French or Spanish.
In the Cluster Units field, choose the desired unit
of measurement, Imperial or Metric.
smr2008-028-002_a
1. Cluster Language field
2. Cluster Units field
smr2009-036 341
