Section 05 ELECTRICAL SYSTEM

Subsection 07 (GAUGE)

Clearing the Maintenance Reminder

Indicators

When the watercraft, engine or supercharger is

due for maintenance, the maintenance reminder

indicator light in the speedometer will come on,

and a scrolling MAINTENANCE REQUIRED or

SUPERCHARGER MAINTENANCE REQUIRED

message will scroll in the digital screen. These

maintenance reminders must be cleared using

B.U.D.S.

1. Connect vehicle to the latest applicable

B.U.D.S. software, refer to the

COMMUNI-

CATION TOOLS AND B.U.D.S. SOFTWARE

subsection.

2. Press the START/STOP button to energize the

electrical system.

NOTE: You will need to press the START button

every three minutes or the electrical system will

shut off.

3. Select the Read Data button.

4. Choose the Vehicle tab at the top of the page.

5. At the bottom RH side of the vehicle page

in the Last Service field, choose Reset Ser-

vice/”Maint” or Reset Supercharger Mainte-

nance button as applicable.

NOTE: If the supercharger maintenance was car-

ried out before the reminder appeared in the in-

formation center, the supercharger maintenance

reminder must be reset in order to reset the su-

percharger maintenance hour counter and prevent

the reminder from appearing prematurely.

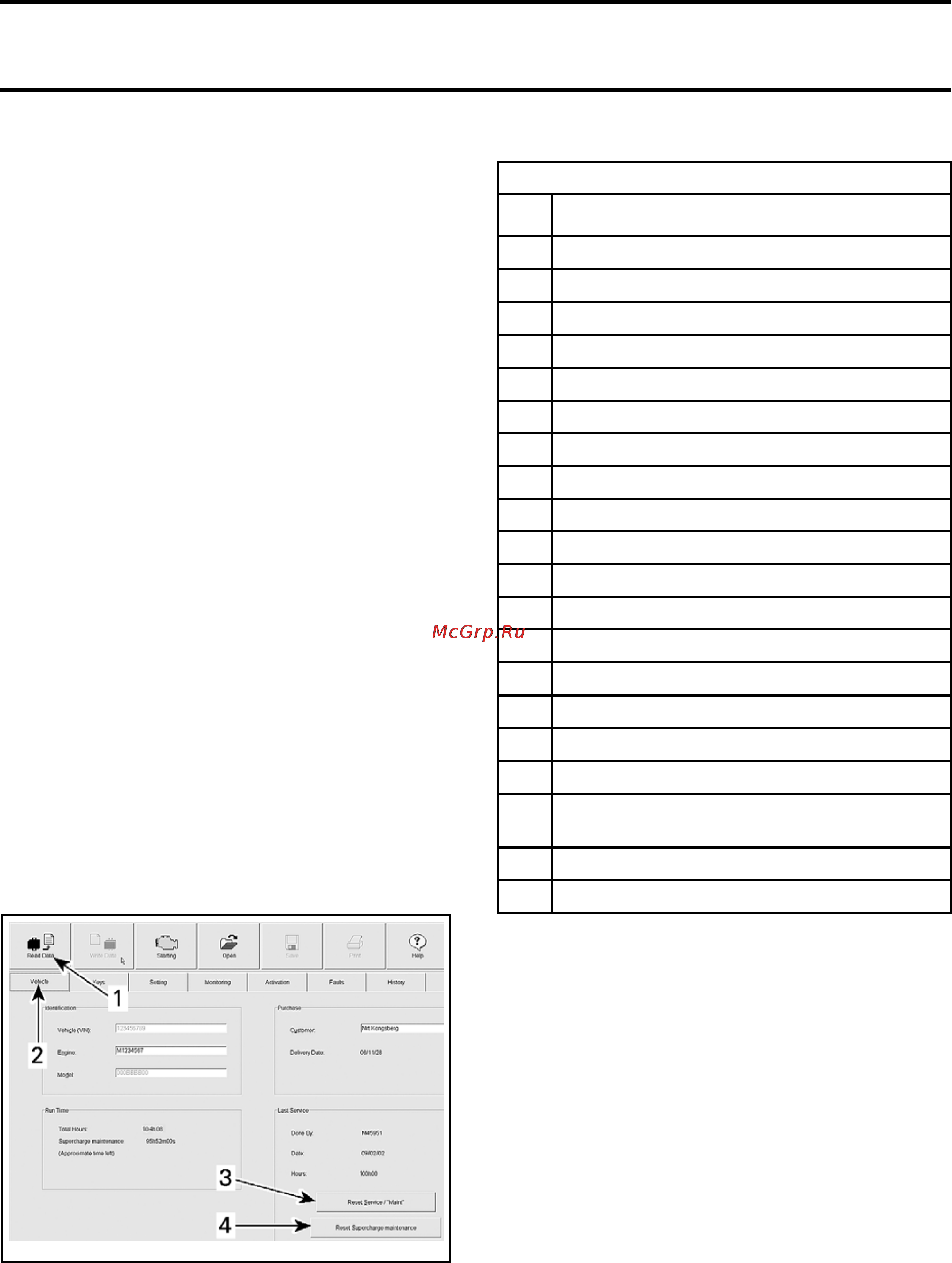

smr2009-036-011_a

TYPICAL

1. Read Data

2. Vehicle tab

3. Reset Service/”Maint” button

4. Reset Supercharger Maintenance button

Information Center Pin-Out

INFORMATION CENTER PIN-OUT

PIN

NO.

FUNCTION

1

GPS back-up power

2

CAN HI

3

CAN LOW

4

Spare (Buzzer external GND)

5

Spare (Buzzer external GND)

6 Not used

7

Cruise switch signal Vdc

8

Spare (digital input)

9 Not used

10

Cruise switch ground

11

Gauge GND

12

Gauge input V

dc power

13

VTS switch signal (UP or DOWN)

14

iS switch signal (UP or DOWN)

15

VTS and iS swi

tch common

16

UP or DOWN arrow switch signal

17

MODE and SET switch signal

18

MODE/SET, UP/

DOWN arrow switch

common

19

Fuel level se

nsor VDC signal

20

Fuel level sensor GND

Information Center Troubleshooting

Press the STA

RT/STOP button and install the

D.E.S.S. key

on the D.E.S.S. post.

NOTE: Information center should come on, cycle

through its self test function, and stay on for

approximately 3 minutes after which all electrical

power will turn off. Briefly press the START/STOP

button every 3 minutes to reenergize the electri-

cal system. Do not hold the START/STOP button

to avoid engine starting.

Information Center “Does Not Turn ON”

When the inf

ormation center does not turn ON

when the STA

RT/STOP button is pressed, the

power circ

uit or ground circuit to the information

center is p

robably open.

342 smr2009-036
