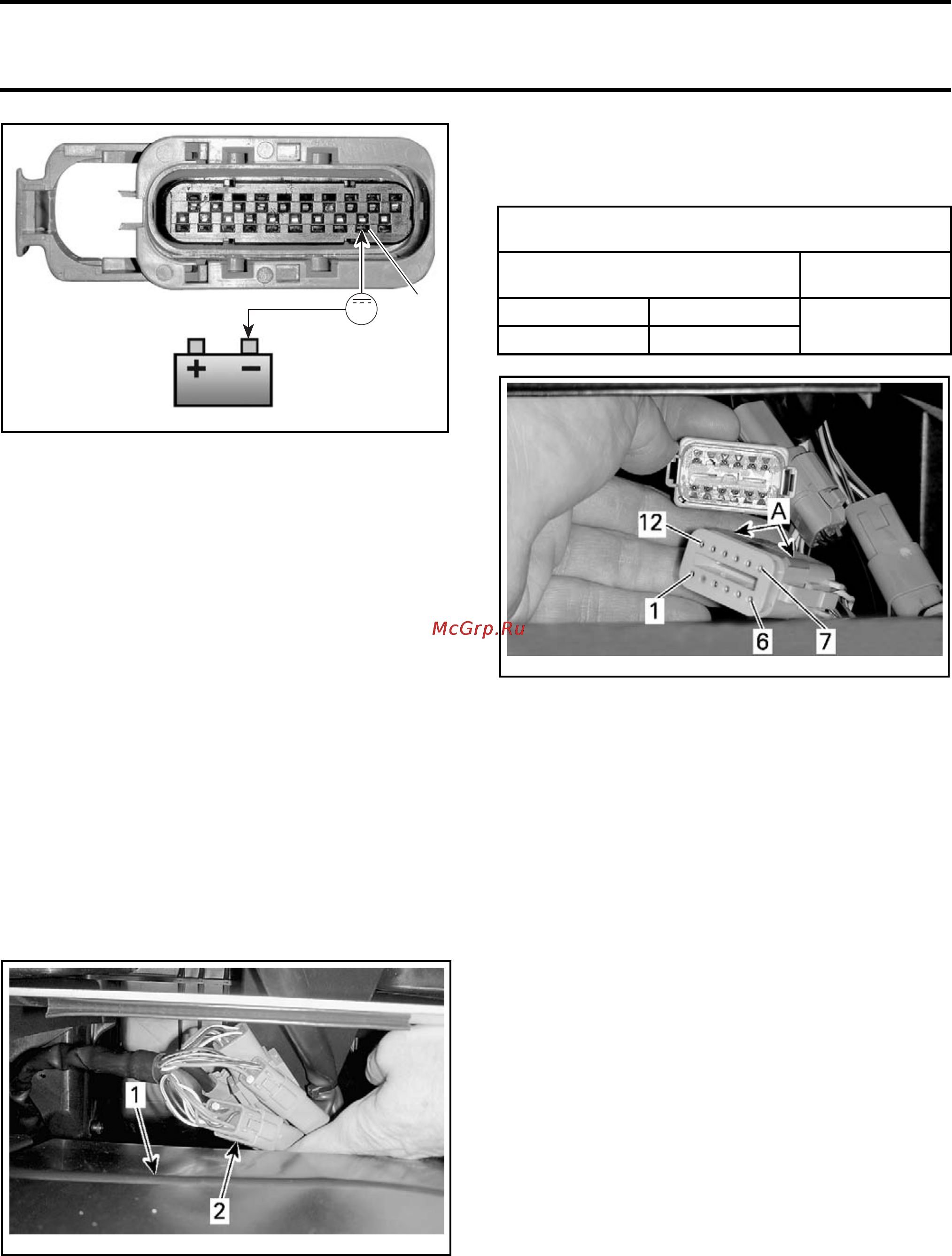

Section 05 ELECTRICAL SYSTEM
Subsection 07 (GAUGE)
12
V
smr2009-036-003_c
INPUT VOLTAGE TEST AT GAUGE CONNECTOR (12 TO
BATTERY GROUND)
If battery voltage is measured as specified in ta-
ble, replace the information center.
If battery voltage is measured to battery ground
but not to pin 11, carry out a
CONTINUITY TEST
OF GAUGE GROUND WIRE
circuit from the
gauge connector to the ground bus-bar contact in
FB2 as described further in this subsection.
6. If battery voltage is not measured at the gauge
connector, carry out an
INFORMATION CEN-
TER INPUT VOLTAGE TEST (AT STEERING
CONNECTOR)
.
Information Center Input Voltage Test
(at Steering Connector)
1. Open the front storage compartment cover and
remove the storage bin.
2. Reach in over top of front ventilation box and
disconnect the 12 pin steering connector (C01-
12POS).
smr2009-036-004_a
1. Fron
t ventilation box
2. 12 pin steering connector
3. Press the START/STOP switch and install the
safety lanyard on the D.E.S.S. post.
4. Carry out an input voltage test at the steering
connector (vehicle harness side) as per follow-
ing table.
INFORMATION CENTER INPUT VOLTAGE
TEST (STEERING CONNECTOR)
INFORMATION CENTER
STEERING CONNECTOR
VOLTAGE
Pin7(Violet) Pin6(Black)
Pin 7 (Violet) Battery ground
Battery voltage
smr2009-036-005_a
PIN-OUT - 12 PIN STEERING CONNECTOR
A. Connector alignment keys
If battery voltage is read atf steering connector
(vehicle harness side) as specified in previous ta-
ble, but was not measured to pin 11 at the gauge
connector (gauge ground wire), repair or replace
the black ground wire between the gauge connec-
tor and the steering connector.
If battery voltage is measured to battery ground
but not to pin 6, carry out a
CONTINUITY TEST OF
GAUGE GROUND WIRE
described further in this
subsection.
If no voltage is measured, carry out the following
steps.
5. Open the boarding platform and remove the RH
storage bin.
6. Test the battery voltage at the battery terminals.
smr2009-036 345
