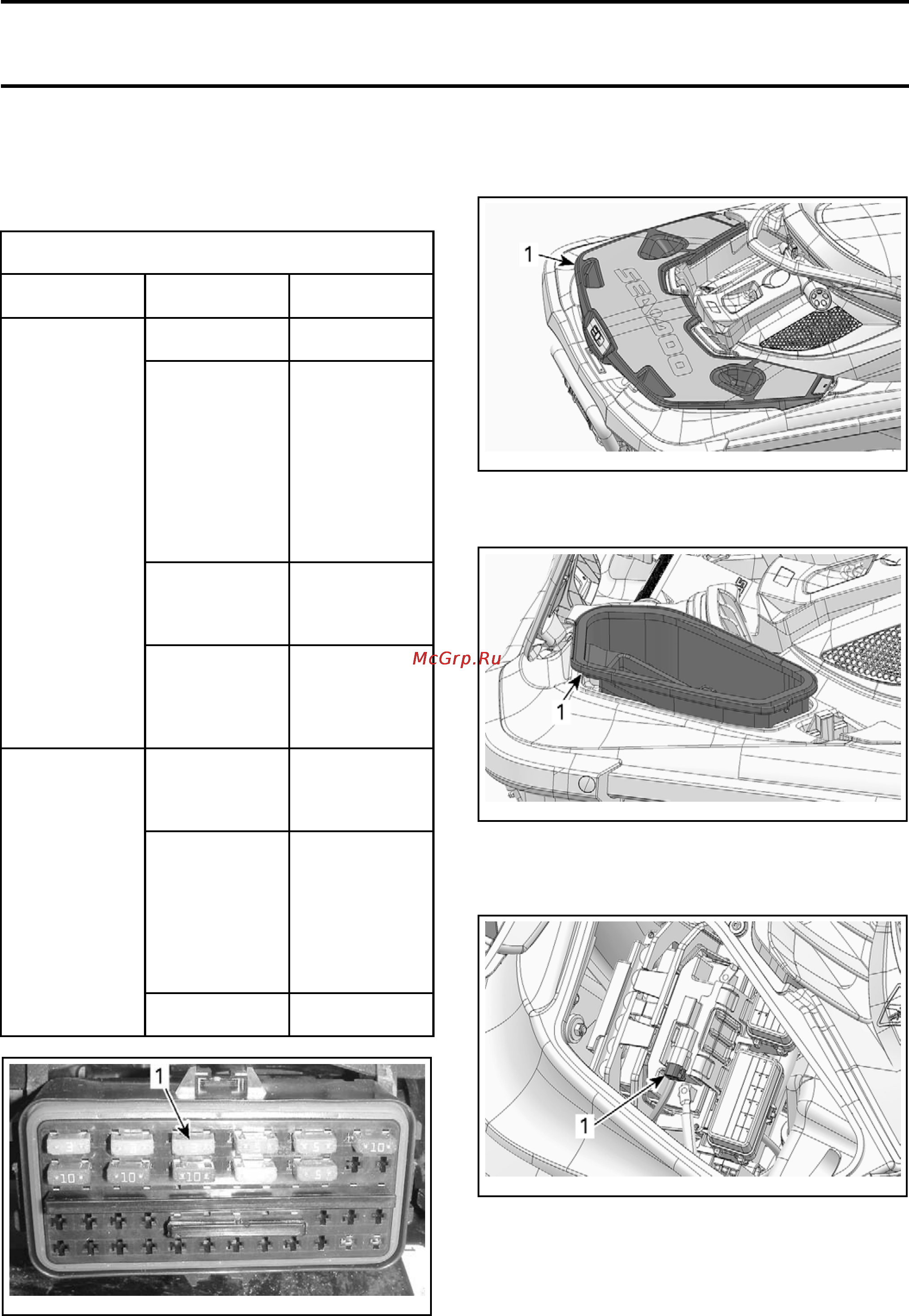

Section 05 ELECTRICAL SYSTEM
Subsection 07 (GAUGE)
DEPTH SOUNDER
GTX Limited iS Models
Depth Sounder Troubleshooting
DEPTH SOUNDER TROUBLESHOOTING
SYMPTOM
POSSIBLE
CAUSE
REMEDY
Depth sounder
not connected.
Properly connect
depth sounder.
Depth sounder
not properly
installed.
Make sure
depth sounder
is properly
installed in
battery holder
base. There
must be no air
gap between
hull and gel
pad(s).
12 Vdc wire or
ground wire to
depth sounder
open.
Check fuse 3 in
FB1 and wiring
harnesses.
Nothing is
displayed in
the inform
ation
center
Problem with
communication
link wires.
Check
WHITE/BLACK
and WHITE/RED
wires to CAN
bus-bars in FB1.
Watercraft is not
in water.
Launch
watercraft in
water and
recheck.
There is air
between gel
pad and depth
sounder or
between depth
sounder and
battery holder
base.
Remove depth
sounder.
Replace gel pad.
----(ftorm)
is displayed
Depth sounder
is defective.
Try a new depth
sounder.
smr2009-027-011_c
1. Depth sounder 3A fuse (FB1)
Depth Sounder Removal
1. Open the boarding platform.
ssi2009-002-002_a
1. Re-boarding platform
2. Remove the starboard (RH) storage bin.
ssi2009-002-003_a
1. Starboard storage bin
3. Disconnect the diagnostic connector from its
holder.
ssi2009-002-004_a
1. Diagnostic connector
4. Remove the electrical component support from
the battery holder, refer to
CHARGING SYS-
TEM
.
smr2009-036 355
