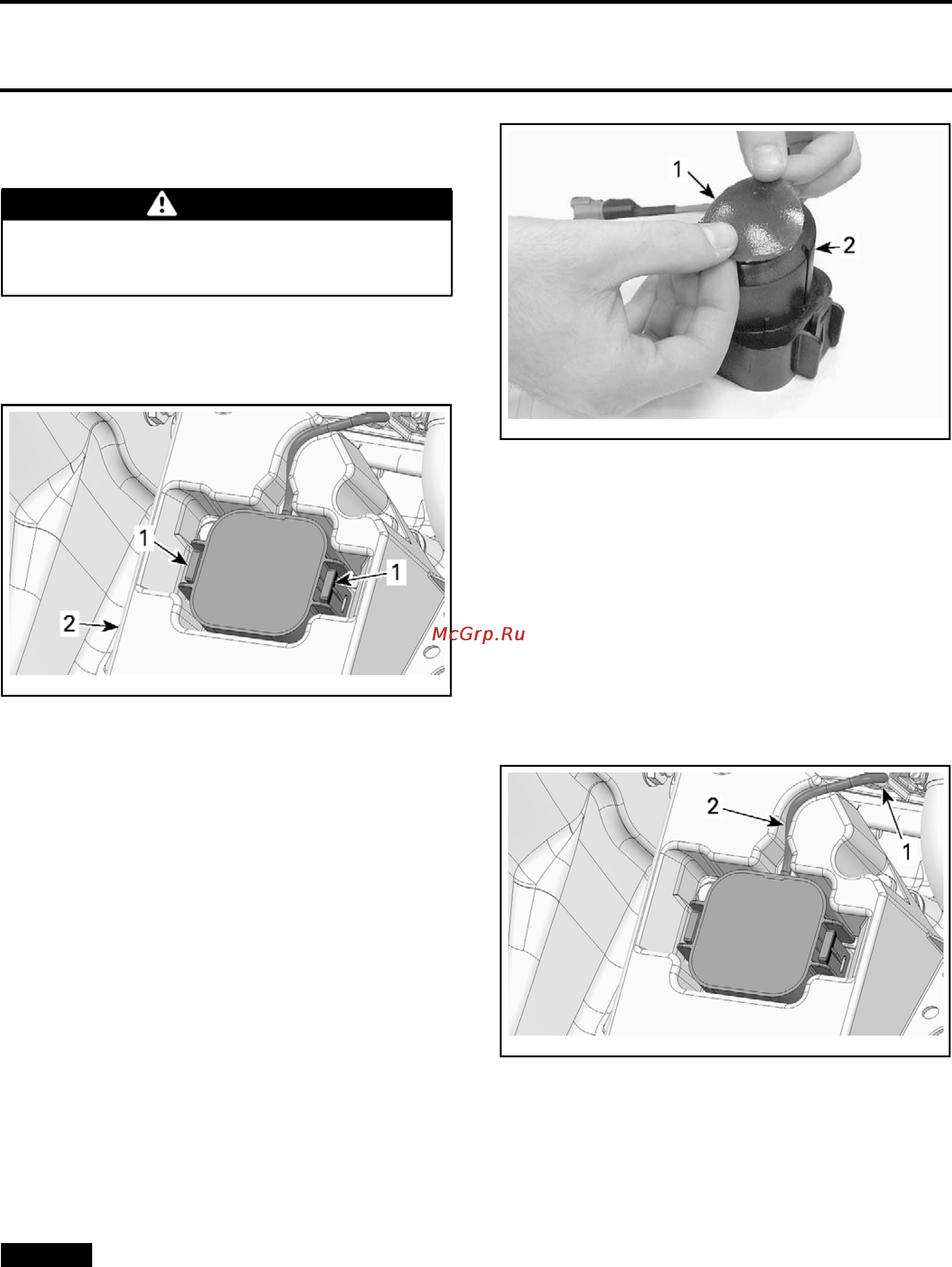

Section 05 ELECTRICAL SYSTEM
Subsection 07 (GAUGE)
5. Remove the battery (with holder) from the wa-
tercraft, refer to
CHARGING SYSTEM
.
WARNING
Always disconnect the battery cables exactly
in the specified order, BLACK (-) battery cable
first then the RED (+) cable last.
6. Unlock the depth sounder clocking tabs from
the battery holder base and pull the depth
sounder out from the base.
ssi2009-002-014_a
1. Locking tabs
2. Battery holder base
7. Disconnect the depth sounder connector from
the wiring harness.
Depth Sounder Inspection
Ensure the silicone pad is in good condition.
NOTE: There must not be any air trapped be-
tween the bottom of the depth sounder and the
bilge. Otherwise, the sounder will not function
correctly.
If the silicone gel pad is damaged, replace it.
Depth Sounder Gel Pad Replacement
1. Place the flat side of the depth sounder on a
level surface.
2. Remove the old gel pad from the bottom of the
depth sounder.
3. Clean the concave surface of depth sounder.
4. Remove both protectors from the gel pad.
5. Apply gel pad on depth sounder.
NOTICE
Make sure do not trap air between
gel pad and depth sounder. Otherwise, the de-
vice will not work.
ssi2009-002-013_a
1. Gel pad
2. Depth sound
er
Depth Sounder Installation
1. Insert the
depth sounder in the battery holder
base while
paying attention to the position of
the wiring
on the sounder with the groove in the
battery ho
lder base.
2. Press firmly on the depth sounder until both
locking tabs are locked into the base.
3. Connect the sounder connector to the wiring
harness and route the wiring in the groove pro-
vided in the battery holder base.
ssi2009-002-014_b
1. Depth sounder connector
2. Wiring harness
4. After installation:
4.1 Try pulling the sounder out to ensure it
is properly locked in the battery support
base.
4.2 Try pushing on depth sounder. You must
feel a resistance (no air gap).
NOTE: An air gap can be eliminated by adding an
additional gel pad.
5. Install the battery and electrical component
support in the reverse order of removal, refer
to
CHARGING SYSTEM
.
356 smr2009-036
