Section 06 STEERING AND PROPULSION
Subsection 01 (STEERING AND O.T.A.S.)

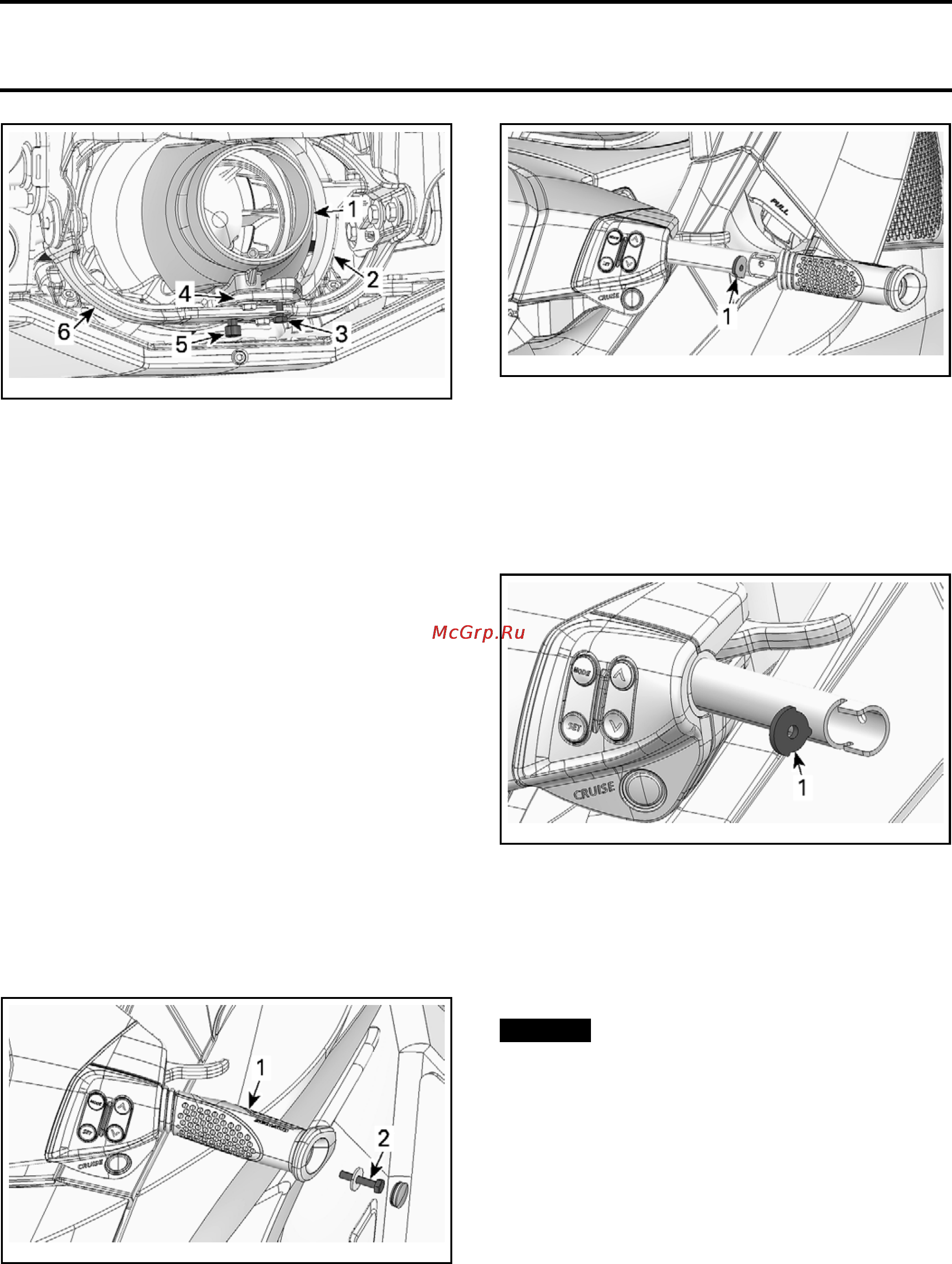

smr2009-037-041_a
1. Nozzle
2. Nozzle arm
3. Hexagonal screw
4. Nozzle link rod
5. Socket screw
6. VTS trim ring
Remove nozzle from watercraft.
Nozzle Installation
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Apply
LOCTITE 243 (BLUE) (P/N 293 800 060) on
hexagonal screw threads (or use new self-locking
screws).
Tighten hexagonal screws to 10 N•m (89 lbf•in).
Secure steering cable to nozzle. Refer to
STEER-
ING CABLE
in this subsection.
Perform the
STEERING ALIGNMENT
, see the pro-
cedure in this subsection.
HANDLEBAR GRIP
Handlebar Grip Removal
To remove handlebar grip, pull out cap and remove
screw.
smr2009-037-006_a
1. Handle
bar grip
2. Handlebar grip screw
Pull out handlebar grip and remove grip insert
from handlebar.
smr2009-037-007_a
1. Grip insert
NOTE: Verify grip insert for damage.
Handlebar Grip Installation
When installing the grip insert in the handlebar,
ensure that it is properly inserted in the slot at the
end of the handlebar tubing.
smr2009-037-008_a
1. Grip ins
ert
Install handlebar grip on handlebar matching it to
the notch in the handlebar.
Apply
LO
CTITE 243 (BLUE) (P/N 293 800 060)
on
screw th
reads.
Install flat washer and handlebar grip screw.
NOTICE
Ensure t
o install flat washer other-
wise scr
ew will damage grip end.
Torque handlebar grip screw to 7 N•m (62 lbf•in).
Install
cap.
smr2009-037 363
