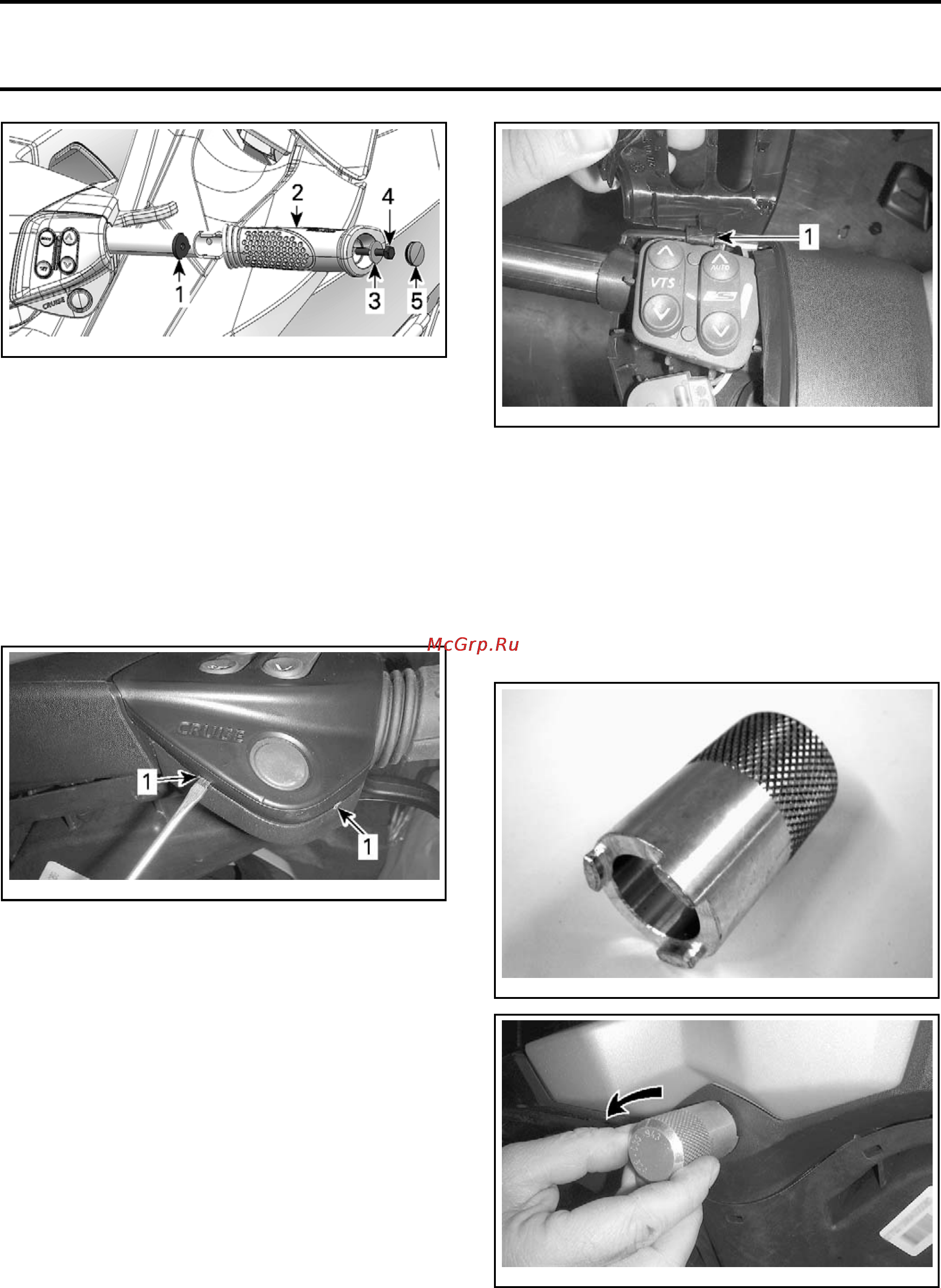

Section 06 STEERING AND PROPULSION

Subsection 01 (STEERING AND O.T.A.S.)

smr2009-037-009_a

1. Grip insert

2. Grip

3. Flat washer

4. Screw

5. Cap

HANDLEBAR SWITCH COVER (LH

OR RH)

Handlebar Switch Cover Removal (LH

or RH)

1. Insert the end of a small screwdriver in one of

cover slots.

smr2009-037-010_a

RH SIDE SHOWN

1. Cover slots

2. Turn screwdriver to open cover.

3. Remove the switch cover.

Handlebar Switch Cover Installation

(LH or RH)

Install the round rubber button in the cover.

Insert the front tab and tilt the cover over the

switches.

smr2009-037-012_a

RH SIDE SHOWN

1. Front tab

Press on the cover to lock it.

STEERING COVER

Steering Cover Removal

1. Using the D.E.S.S. POST REMOVER (P/N 529 035

943)

, remove the nut retaining the D.E.S.S.

post.

529035943

smr2009-037-015_a

2. Remove both handlebar switch covers. See

procedure in this subsection.
