Section 02 ENGINE
Subsection 01 (ENGINE REMOVAL AND INSTALLATION)
6. Drain cooling system. Refer to
COOLING SYS-
TEM
subsection.
7. Cut locking tie securing exhaust water outlet
hose and engine blow-by hose.
8. Disconnect the exhaust water outlet hose from
the exhaust manifold.
9. Disconnect the hose from the blow-by valve.

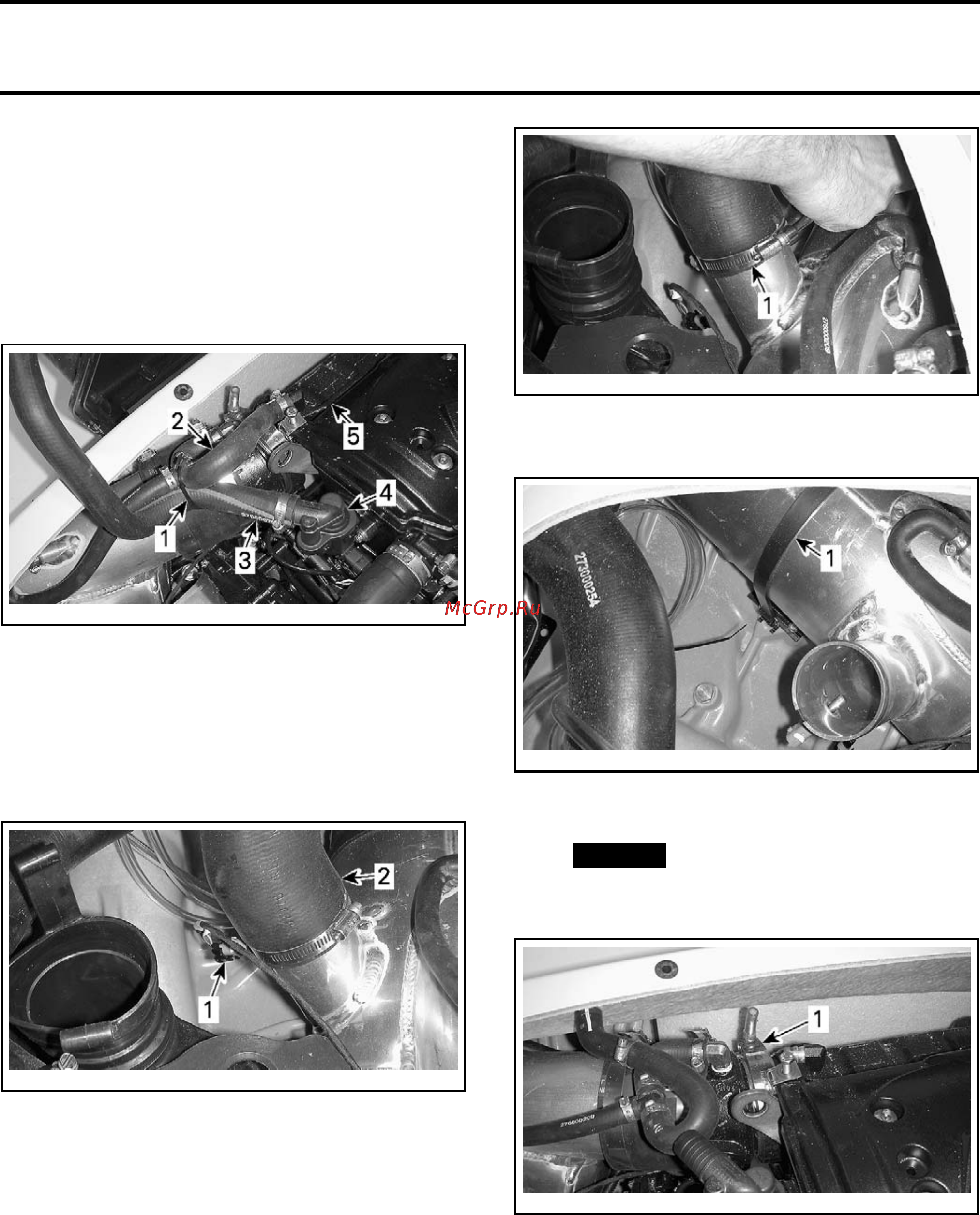

smr2009-016-003_a
1. Cut this locking tie
2. Exhaust w
ater outlet hose
3. Blow-by hose
4. Blow-by valve
5. Exhaust
manifold
10. Move muffler rearward.
10.1 Unplug t
he exhaust gas temperature sen-
sor (EG
TS).
smr2
009-016-004_a
1. EGTS sensor
2. Exhaust hose
10.2 Disc
onnect the exhaust hose.
smr2009-016-005_a
1. Exhaust hose clamp
10.3 Detach retaining strap.
smr2009-016-006_a
1. Muffler retaining strap
10.4 Unscre
w exhaust clamp.
NOTICE
Do not use pneumatic or elec-
tric tools on exhaust clamp as seizure
may occurs.
smr2009-016-007_a
1. Exhaust clamp
10.5 Move muffler back.
11. Remove jet pump. Refer to
JET PUMP
sub-
section.
12. Remove the drive shaft. Refer to
DRIVE
SHAFT
subsection.
16 smr2009-016
