Section 02 ENGINE

Subsection 01 (ENGINE REMOVAL AND INSTALLATION)

13. Connect B.U.D.S. Refer to

COMMUNICA-

TION TOOLS AND B.U.D.S. SOFTWARE

subsection.

14. Release fuel pressure using B.U.D.S.

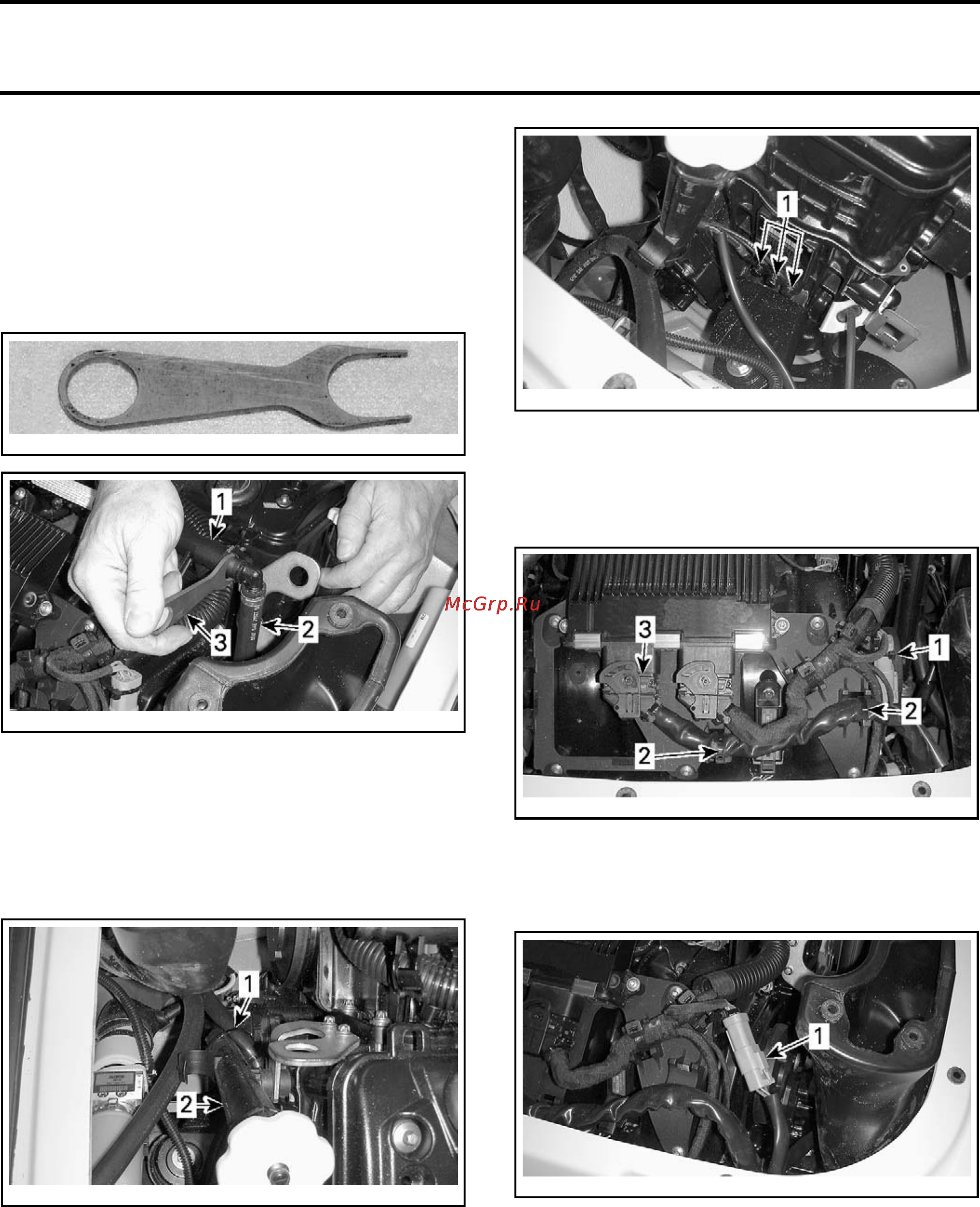

15. Using the

FUEL HOSE DISCONNECT TOOL

(P/N 529 036 037)

disconnect fuel hose from

fuel rail.

529036037

smr2009-016-009_a

1. Fuel rail

2. Fuel hose

3. Fuel hose disconnect tool

16. Disconnect battery. Refer to

CHARGING SYS-

TEM

subsection.

17. Cut locking tie securing wiring harness to oil

filler tube.

smr2009-016-010_a

1. Cut t

his locking tie

2. Oil filler tube

18. Unscrew ground wires from engine.

smr2009-016-011_a

1. Ground wires

19. On top of engine, cut locking ties securing ve-

hicle harness and engine connector to engine.

20. Unplug the "B" connector from the ECM.

smr2009-016-012_a

1. Locking tie retaining engine connector

2. Lockin

g ties securing vehicle harness

3. "B" connector

21. Unplug the engine connector.

smr2009-016-013_a

1. Engine connector

22. Cut locking tie securing vehicle harness to

manifold air temperature sensor (MATS).

smr2009-016 17
