Section 02 ENGINE

Subsection 01 (ENGINE REMOVAL AND INSTALLATION)

smr2009-016-014_a

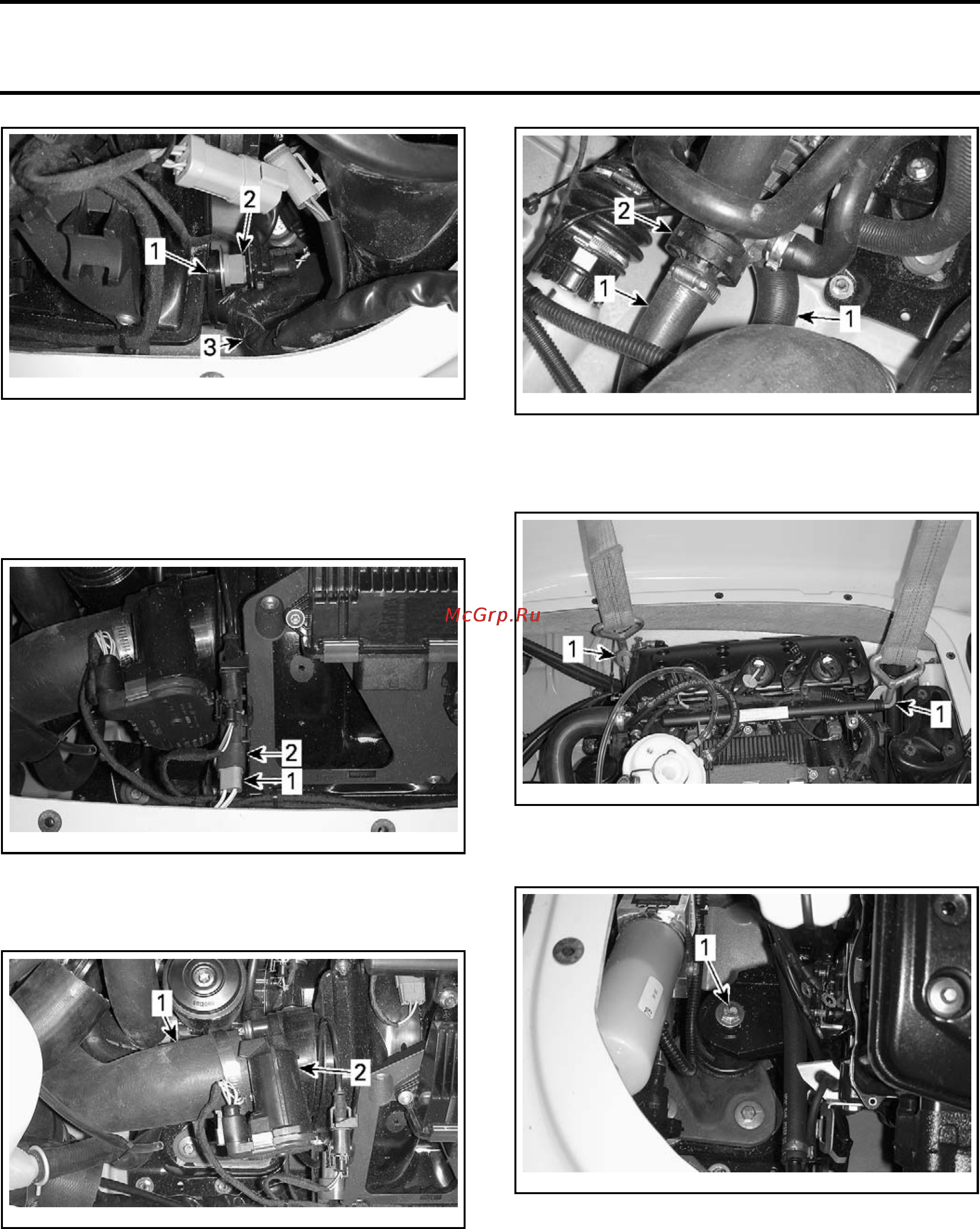

1. Cut this locking tie

2. MATS sensor

3. Vehicle harness

23. At the rear of engine, unplug the magneto

connector and detach connector housing

from ECM support.

smr2009-016-015_a

1. Magneto connector

2. Connec

tor housing

24. Disconnect air intake hose from throttle body.

smr2009-016-016_a

1. Air intake hose

2. Throttle body

25. Disconnect ride plate hoses from water pump

housing.

smr2009-016-017_a

1. Ride plate hoses

2. Water pump housing

26. Install a suitable lifting device.

smr2009-016-018_a

1. Engine

lifting brackets

27. Remove front engine support screw.

smr2009-016-019_a

1. Front engine support screw

28. Remove the rear starboard engine support

screw.

18 smr2009-016
