Section 02 ENGINE

Subsection 01 (ENGINE REMOVAL AND INSTALLATION)

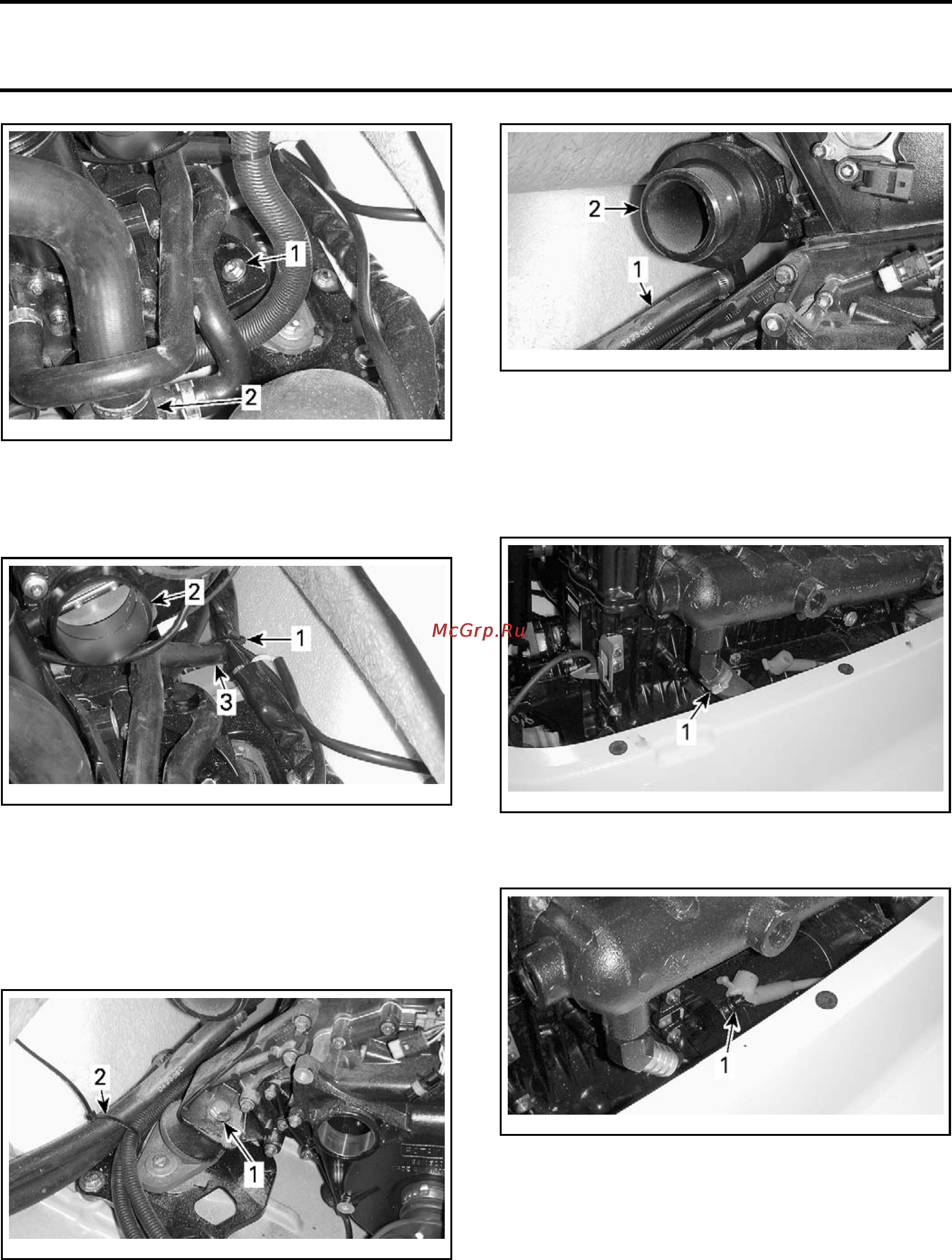

smr2009-016-020_a

1. Rear engine support screw on starboard side

2. Water pump housing

29. Cut locking tie from coolant hose alongside

throttle body that retains the vehicle harness.

smr2009-016-021_a

1. Cut thi

s locking tie

2. Throttle body

3. Coolant hose

30. Remove

the rear engine support screw on

port s

ide.

31. Cut locking tie securing coolant hoses, starter

cable and ground cable.

smr2009-016-022_a

1. Rear engine support screw on port side

2. Cut this locking tie

32. Disconnect the water outlet hose from the ex-

haust manifold.

smr2009-016-023_a

1. Water outlet hose

2. Exhaust manifold

33. Slightly lift engine to ease the remaining com-

ponent removal.

34. Disconnect the water inlet hose from the ex-

haust manifold.

smr2009-016-024_a

1. Exhaust

manifold water inlet hose

35. Unscrew starter cable nut.

smr2009-016-025_a

1. Starter cable nut

36. Remove screw securing the ground cable to

engine.

smr2009-016 19
