Section 06 STEERING AND PROPULSION
Subsection 01 (STEERING AND O.T.A.S.)

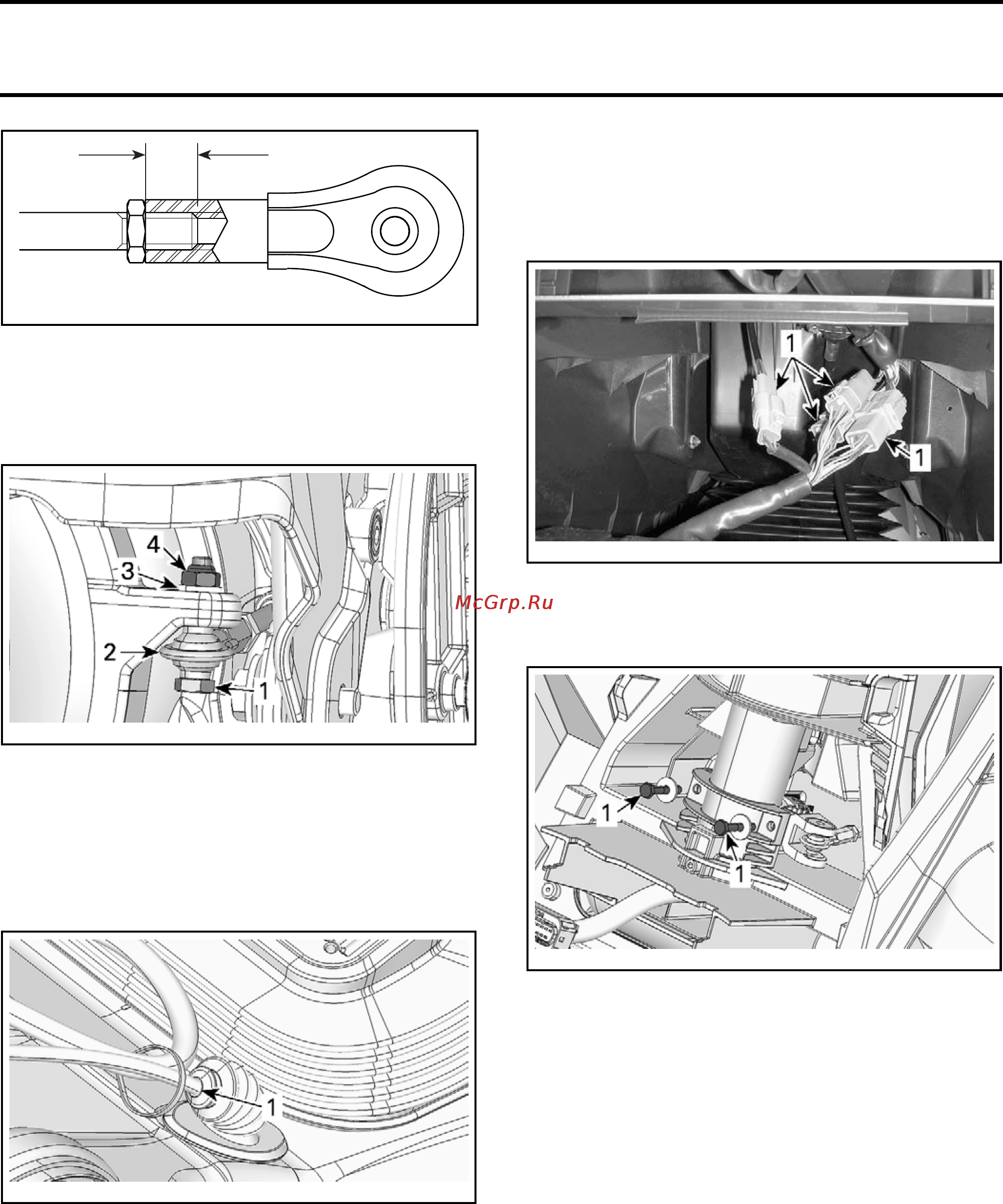

A
smr2006-031-006_a
A. 9 mm ± 1 mm (.354 in ± .039 in)
11.2 Tighten jam nut to 2.5 N•m (22 lbf•in).
11.3 Position the steering cable ball joint to the
nozzle as per following illustration.
smr2009
-037-025_a
1. Ball joint bolt
2. Ball joint under nozzle arm
3. Washer
4. Nut
11.4 Tighten ball joint nut to 6 N•m (53 lbf•in).
12. Check if the cable bellows is properly posi-
tioned all around steering cable.
smr2009-037-026_a
1. Check fit
13. Reinstall the moving deck. Refer to
BODY
subsection for complete procedure.
14. Check steering alignment.
STEERING COLUMN
Steering Column Removal
1. Open the front storage cover and remove the
storage basket.
2. Remove the gauge support. Refer to
GAUGE
subsection.
3. Disconnect the four connectors under moving
deck.
smr2009-042-005_a
1. Disconnec
t these connectors
4. Remove both screws securing the steering col-
umn.
smr2009-037-027_a
1. Steering column screws
5. Pull steering column out of its support. Ensure
to not damage wiring harness connectors and
O.T.A.S. magnets.
Steering Column Inspection
Check steering column for:
–Cracks
– Stress marks
– Wear indications.
Replace the steering as required.
Check both wear bushings in steering column
support. Replace if necessary.
368 smr2009-037
