Section 06 STEERING AND PROPULSION
Subsection 01 (STEERING AND O.T.A.S.)

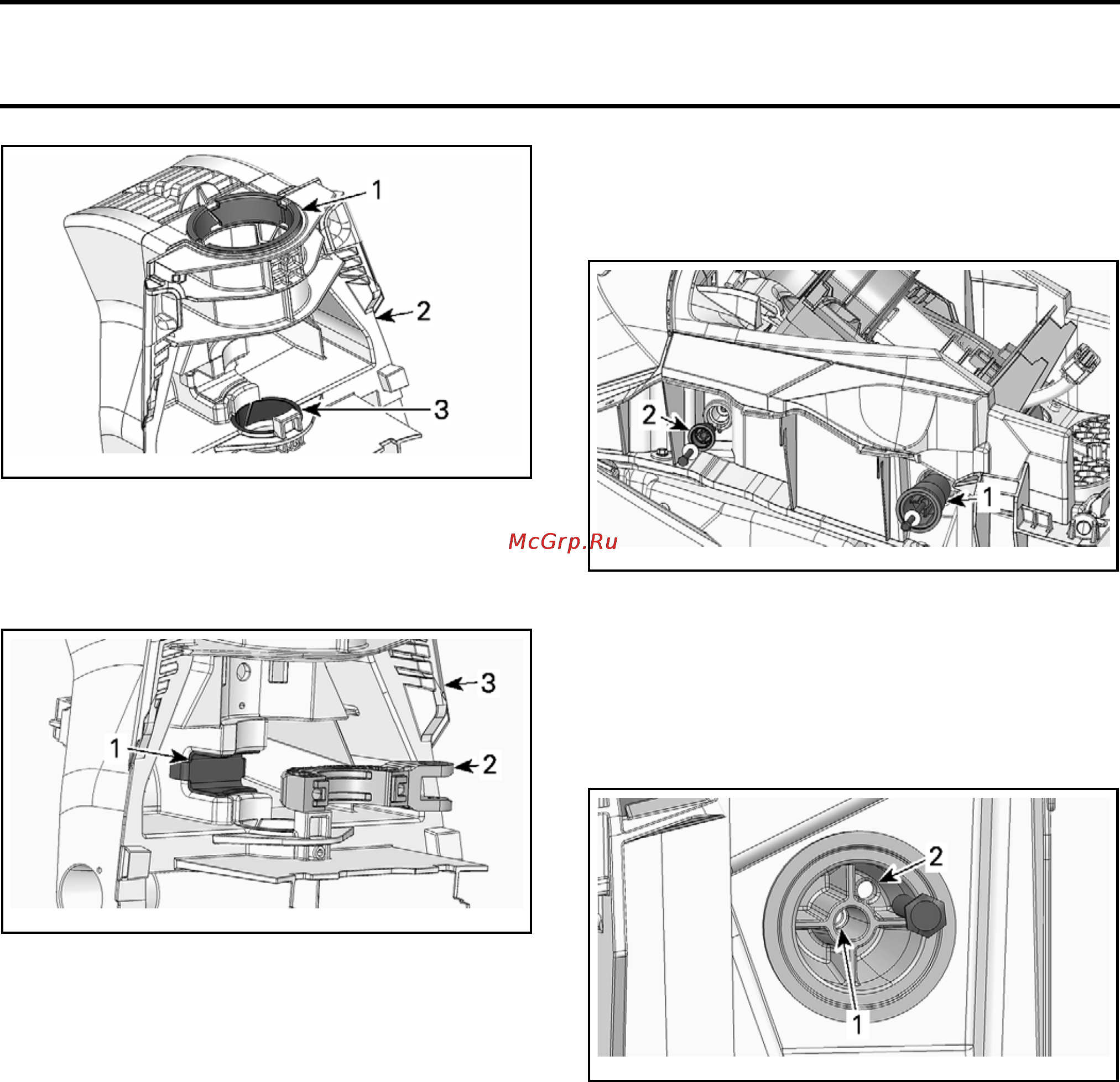

smr2009-037-028_a
1. Upper bushing
2. Steering column support
3. Lower bushing
Check wear sleeve behind the steering column
arm.
smr2009-
037-029_a
1. Wear sleeve
2. Steering column arm
3. Steerin
g column support
Steering Column Installation
The inst
allation is essentially the reverse of the re-
moval pr
ocedure. However, pay attention to the
followi
ng.
Carefully, drive steering column through steering
column support. Ensure to not hit the O.T.A.S.
magnet during steering column installation.
Tighten steering column screws to 6 N•m
(53 lbf•in).
Reinst
all all removed parts using appropriate pro-
cedure
.
STEERI
NG COLUMN SUPPORT
Steering Column Support Removal
1. Refer t
o
BODY
and remove the following parts:
Storage cover
Front grille
Body c
overs.
2. Remove the gauge support. Refer to
GAUGE
subsection.
3. On both side of vehicle, remove both pivot
bushings (steering column support and steer-
ing adjustment handle).
smr2009-0
37-033_a
1. Pivot bushing of steering column support
2. Pivot bushing of steering adjustment handle
NOTE: Pivo
t bushings retaining steering column
couldbeha
rd to remove, in this case remove the
retainin
g screw from the center hole and tighten it
into the o
ffset hole. Tighten screw until the pivot
bushing c
omes out of steering column support.
smr2009-037-040_a
1. Center hole
2. Offset hole
4. Remove steering column support and steering
adjustment handle from vehicle.
5. Remove
STEERING COLUMN
from its support.
See the procedure in this subsection.
Steering Column Support Installation
The installation is the reverse of the removal pro-
cedure.
STEERING TILT ADJUSTMENT
HANDLE
Steering Tilt Adjustment Handle
Replacement
Use the same procedure as for
STEERING COL-
UMN SUPPORT
.
smr2009-037 369
