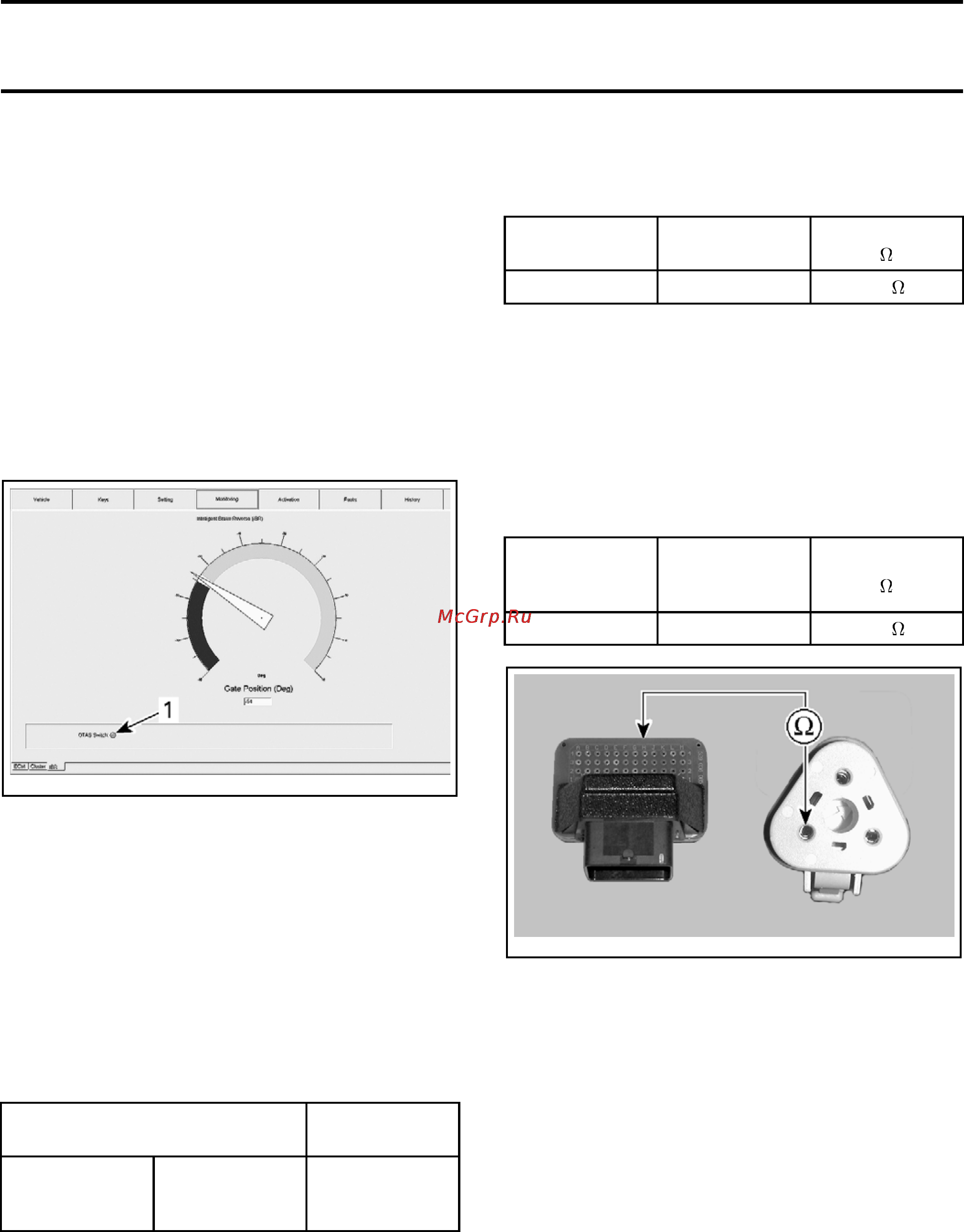

Section 06 STEERING AND PROPULSION
Subsection 01 (STEERING AND O.T.A.S.)
O.T.A.S. SWITCH
O.T.A.S. Switch Dynamic Test
Connect B.U.D.S. software. Refer to
COMMUNI-
CATION TOOLS AND B.U.D.S. SOFTWARE
sub-
section.
BrieflypresstheSTART/STOPbuttontowakeup
the ECM.
Install the D.E.S.S. key on its post.
Completely turn steering in one direction and keep
it in this position.
Look in B.U.D.S. to see if the O.T.A.S. system
“LED” turns on.
smr2009-037-034_a
MONITORING AND IBR TABS
1. O.T.A.S. "LED"
Repeat test for the other side.
If O.T.A.S. system “LED” does not turn on,
check for fault codes then check other tests for
the O.T.A.S. switch.
O.T.A.S. Switch Voltage Test
Press the START/STOP button to activate the
electrical system.
Using the
FLUKE 115 MULTIMETER (P/N 529 035
868)
, perform the following test.
TEST PROBES
VOLTAGE
(VDC)
PIN "A"
(3-pin
connector)
PIN "B"
(3-pin
connector)
Battery voltage
If there is voltage present, carry out the O.T.A.S.
switch continuity test.
If there is no voltage, check continuity of the
O.T.A.S. switch power wire.
O.T.A.S. Switch Power Wire Continuity Test
Check continuity between O.T.A.S. switch 3-pin
connector and fuse block (FB1).
3-PIN
CONNECTOR
FUSE BLOCK
(FB1)
RESISTANCE
PIN "A"
C3
.5
If there is no continuity, check fuse 6 (FB1), wiring,
connector and terminals.
If continuity is good, check continuity of the
O.T.A.S. switch ground wire.
O.T.A.S. Swi
tch Ground Wire Continuity Test
Check continuity between O.T.A.S. switch 3-pin
connector and ECM connector "B" using the
ECM
ADAPTER TOOL (P/N 529 036 166)
3-PIN
CONNECTOR
ECM
ADAPTER
TOOL
RESISTANCE
PIN "B" H3
.5
smr2009
-037-024_a
If continuity is good, check ECM ground. Refer to
POWER DISTRIBUTION
subsection for complete
procedure.
If there
is no continuity, repair or replace wiring,
connect
or or terminals.
O.T.A.S. Switch Continuity Test
Unplug t
he pin "C" from the 3-pin connector.
Briefly press on START/STOP button to wake up
the ECM.
Measure the resistance of switch as follows.
370 smr2009-037
