Section 06 STEERING AND PROPULSION

Subsection 02 (iBR AND VTS)

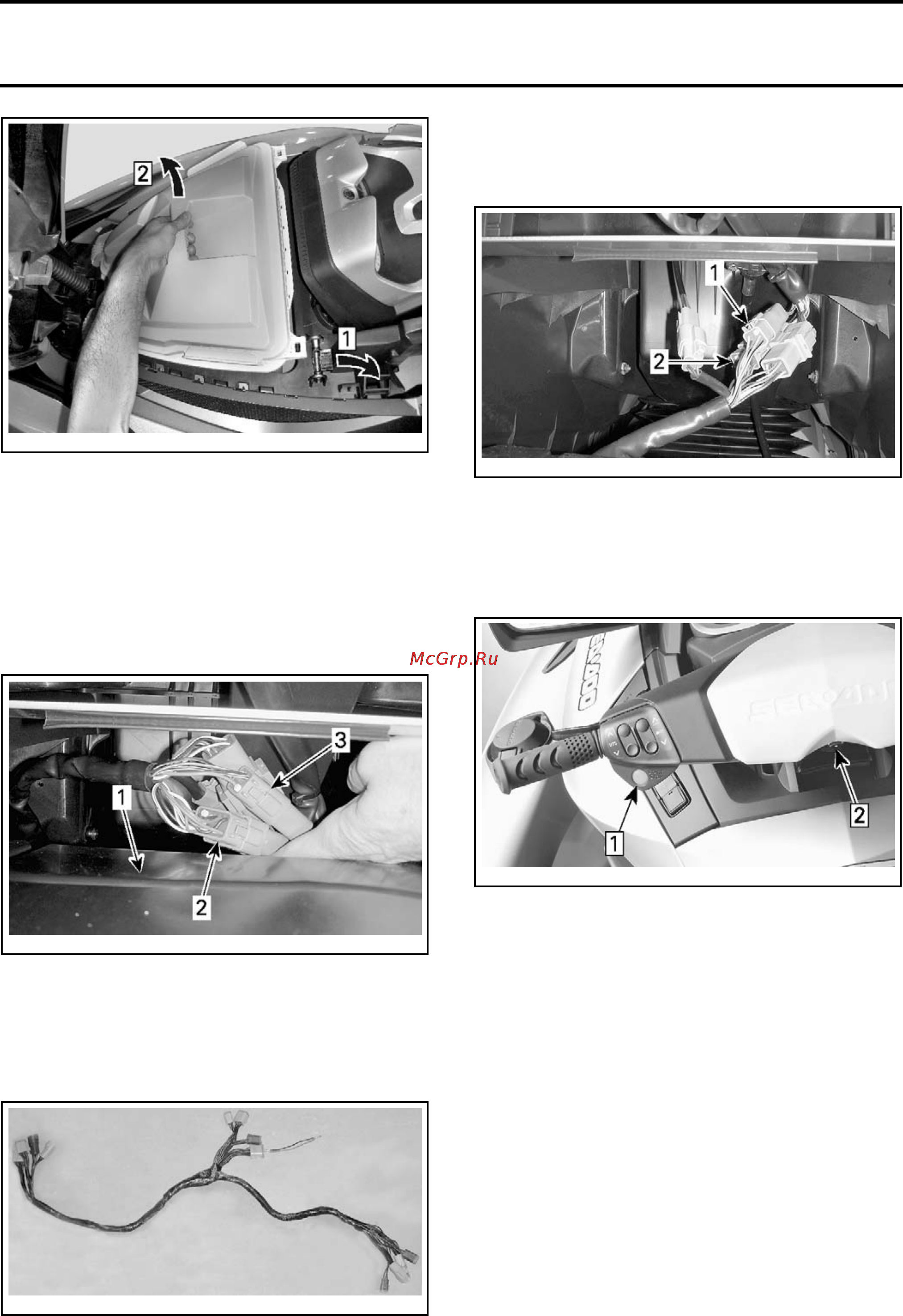

smo2009-002-124_a

Step 1: Push storage bin latches backwards (one each side)

Step 2: Lift and tilt forward to remove storage bin

5. Remove the D.E.S.S. key and wait approx-

imately 3 minutes for the electrical system

power to shut off.

6. Reach in under the moving deck (steering area)

and disconnect the 6-pin and the 12-pin steer-

ing connectors located just behind the forward

ventilation box.

smr2009-036-004_c

1. Forward ventilation box

2. 12-pin connector to disconnect

3. 6-pin connector to disconnect

7. Connect the DIAGNOSTIC HARNESS (P/N 529 036

179)

in series between the disconnected steer-

ing connectors.

529036179

NOTE: Connect only the test harness 12 and 6

pin connectors to both sides of same steering har-

ness connectors.

smr2009-042-005_e

1. 6-pin connector

2. 12-pin connector

8. Press the START/STOP button to wake up the

electrical system.

9. Install the D.E.S.S. key on its post.

sdd2009-001-019_g

Step 1

: Press START/STOP button

Step 2: Install D.E.S.S. key

NOTE: Electrical power will shut off after approx-

imately 3 minutes. Briefly press the START/STOP

button to reactivate the electrical system when re-

quired.

10. Using a

FLUKE 115 MULTIMETER (P/N 529 035

868)

set to Vdc, measure the BRLS voltages

from the installed diagnostic harness connec-

tors as per following tables.

384 smr2009-037
