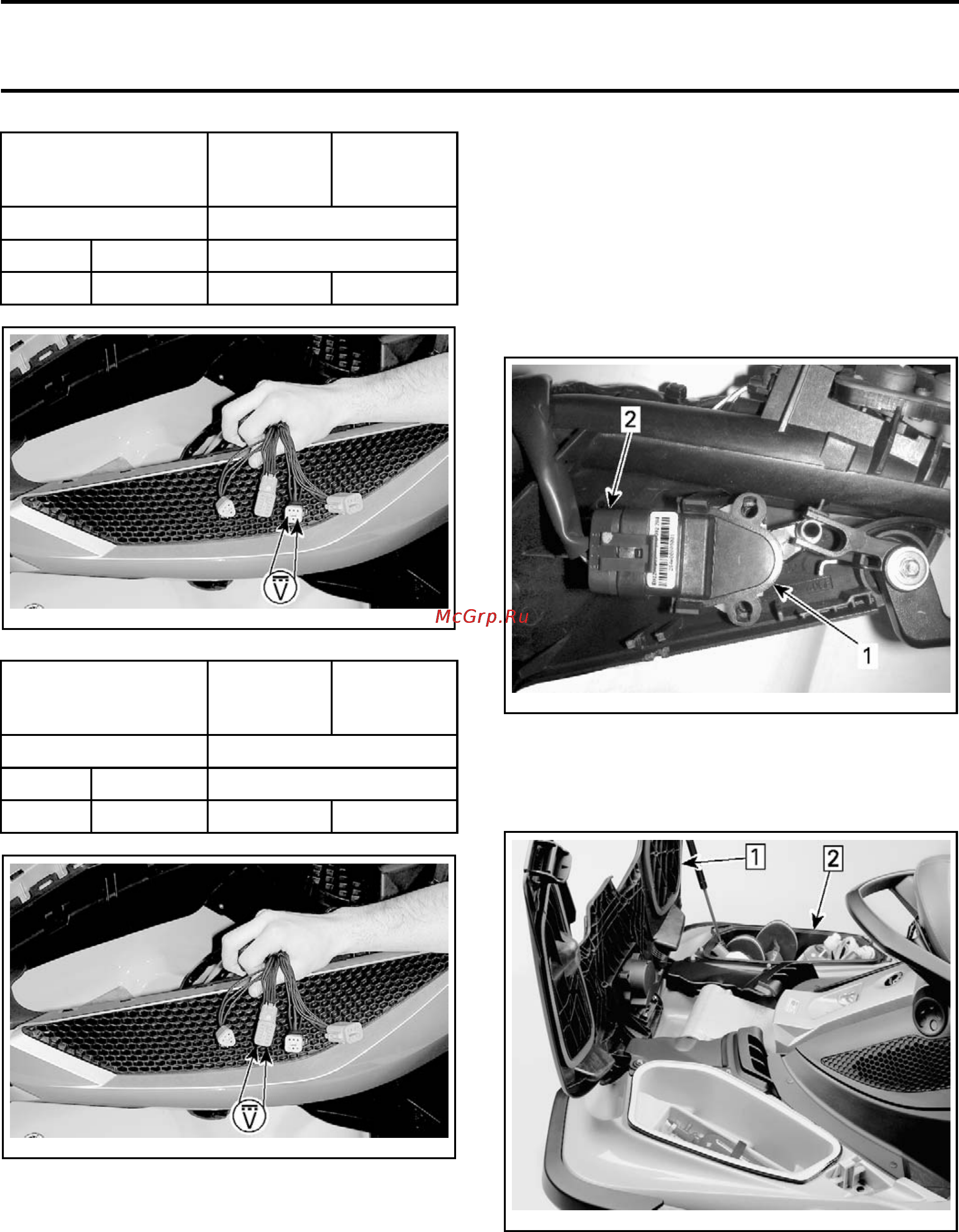

Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)
6-PIN CONNECTO
R
OF DIAGNOSTIC
HARNESS
iBR LEVER
RELEASED
iBR LEVER
PULLED IN
PIN VOLTAGE (Vdc)
45
4.9 - 5.1
5
6 0.15 - 0.35 1.4 - 1.6
smr2009-030-033_c
BRLS VOLTAGE TEST AT 6 PIN CONNECTOR
12-PIN CO
NNECTOR
OF DIAGNOSTIC
HARNESS
iBR LEVER
RELEASED
iBR LEVER
PULLED IN
PIN VOLTAGE (Vdc)
54
4.9 - 5.1
3
4
0.4 - 0.6 2.9 - 3.1
smr2009-030-033_b
BRLS VOLTAGE TEST AT 12 PIN CONNECTOR
11. If voltage measured is as specified, the BRLS
sensor is functioning properly.
NOTE: When moving iBR lever, BRLS voltage
change should increase or decrease in a steady
linear fashion.
12. If voltage is out of specification, carry out a
continuity test of the wiring between the iBR
module and the BRLS sensor, refer to
CONTI-
NUITY TEST OF BRLS WIRING HARNESS
.
Continuity Test of BRLS Wiring
Harness
1. Ensure the steering connector (C01-12 POS
and C03-6 POS) pins are clean, make good
contact, and properly connected.
2. Remove the steering cover, refer to
BODY
sub-
section.
3. Disconnect the BRLS connector.
smr2009-038-001_a
1. BRLS
2. BRLS connector
4. Open the boarding platform and remove the LH
storage bin.
smo2009-002-127_b
Step 1: Open the boarding platform
Step 2: Remove the LH storage bin
5. Disconnect the 12 pin connector from the iBR
actuator.
smr2009-037 385
