Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)

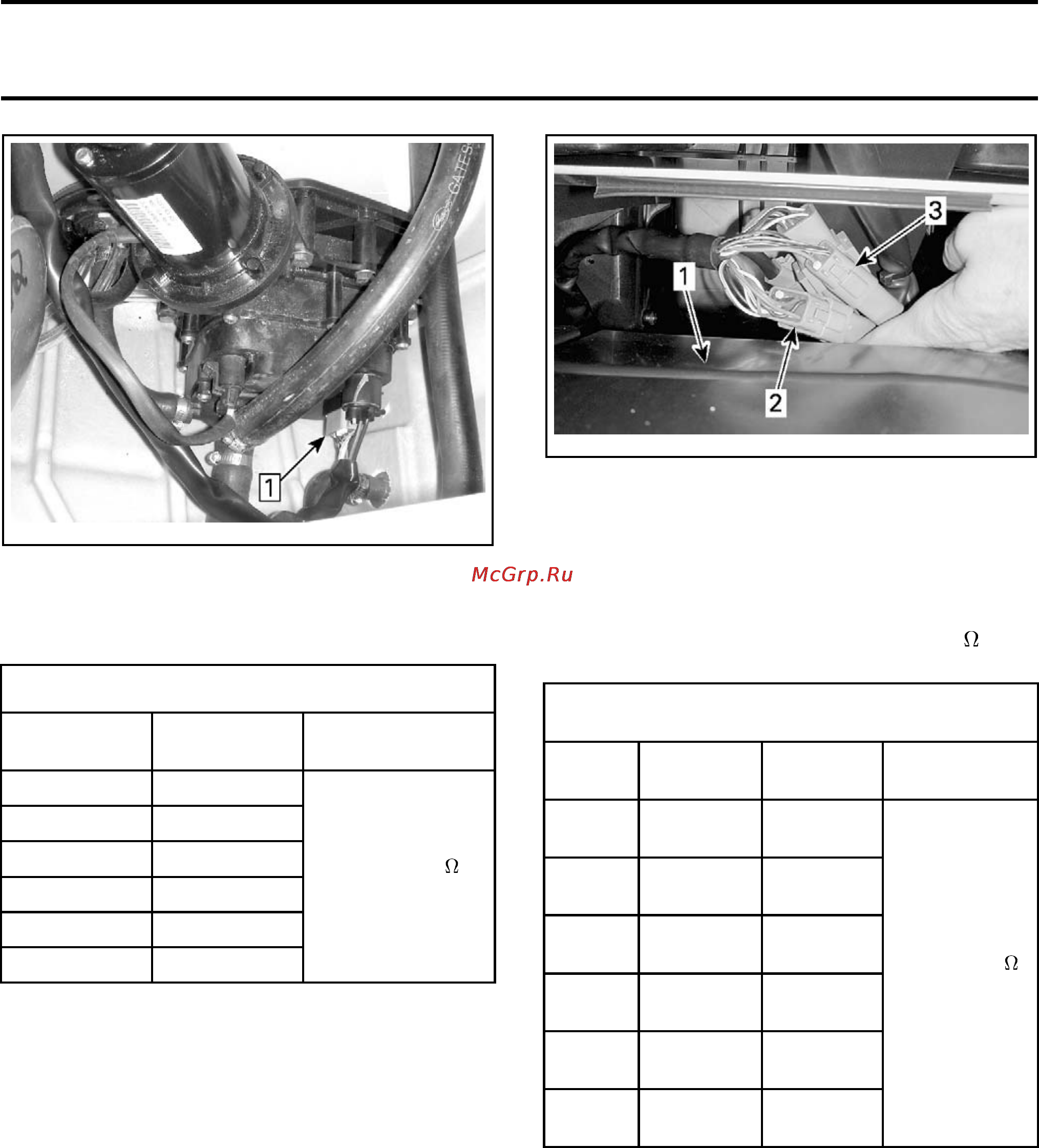

smr2009-038-003_b
Step 1: Disconnect the 12 pin connector
6. Measure for continuity from the BRLS connec-
tor to the 12 pin iBR actuator connector as per
following table.
CONTINUITY TEST OF BRLS WIRING HARNESS
BRLS
CONNECTOR
12 PIN iBR
CONNECTOR
RESISTANCE
Pin A (VI/YL) Pin 4 (VI/YL)
Pin B (BK) Pin 6 (BK)
Pin C (YL/BK)
Pin 8 (YL/BK)
Pin D (VI/YL) Pin 7 (VI/YL)
Pin E (BK) Pin 9 (BK)
PinF(YL/WH) Pin5(YL/WH)
Closeto0
(continuity)
If continuity is good, replace BRLS.
If an open circuit or a higher than normal resis-
tance is measured, carry out the following conti-
nuity tests to find the problem wire or connection:
From the BRLS to the steering connectors
(C01-12 POS and C03-6 POS)
From the steering connectors to the iBR actua-
tor 12 pin connector.
smr2009-036-004_c
1. Forward ventilation box
2. 12 pin steering connector to disconnect
3. 6 pin steering connector to disconnect
NOTE: Connecting the DIAGNOSTIC HARNESS
(P/N 529 036 179)
to the steering connectors
(steering side only then vehicle side only) will
facilitate access. Resistance readings may be
slightly higher than normal (maximum .5
)with
test harness installed.
CONTINUITY TEST BRLS TO STEERING
CONNECTORS
BRLS
12 PIN
STEERING
6PIN
STEERING
RESISTANCE
Pin A
(VI/YL)
-
Pin 4
(VI/YL)
Pin B
(BK)
-
Pin5(BK)
Pin C
(YL/BK)
-
Pin 6
(YL/BK)
Pin D
(VI/YL)
Pin 5
(VI/YL)
-
Pin E
(BK)
Pin 4 (BK)
-
Pin F
(YL/WH)
Pin 3
(YL/WH)
-
Close to 0
(continuity)
386 smr2009-037
