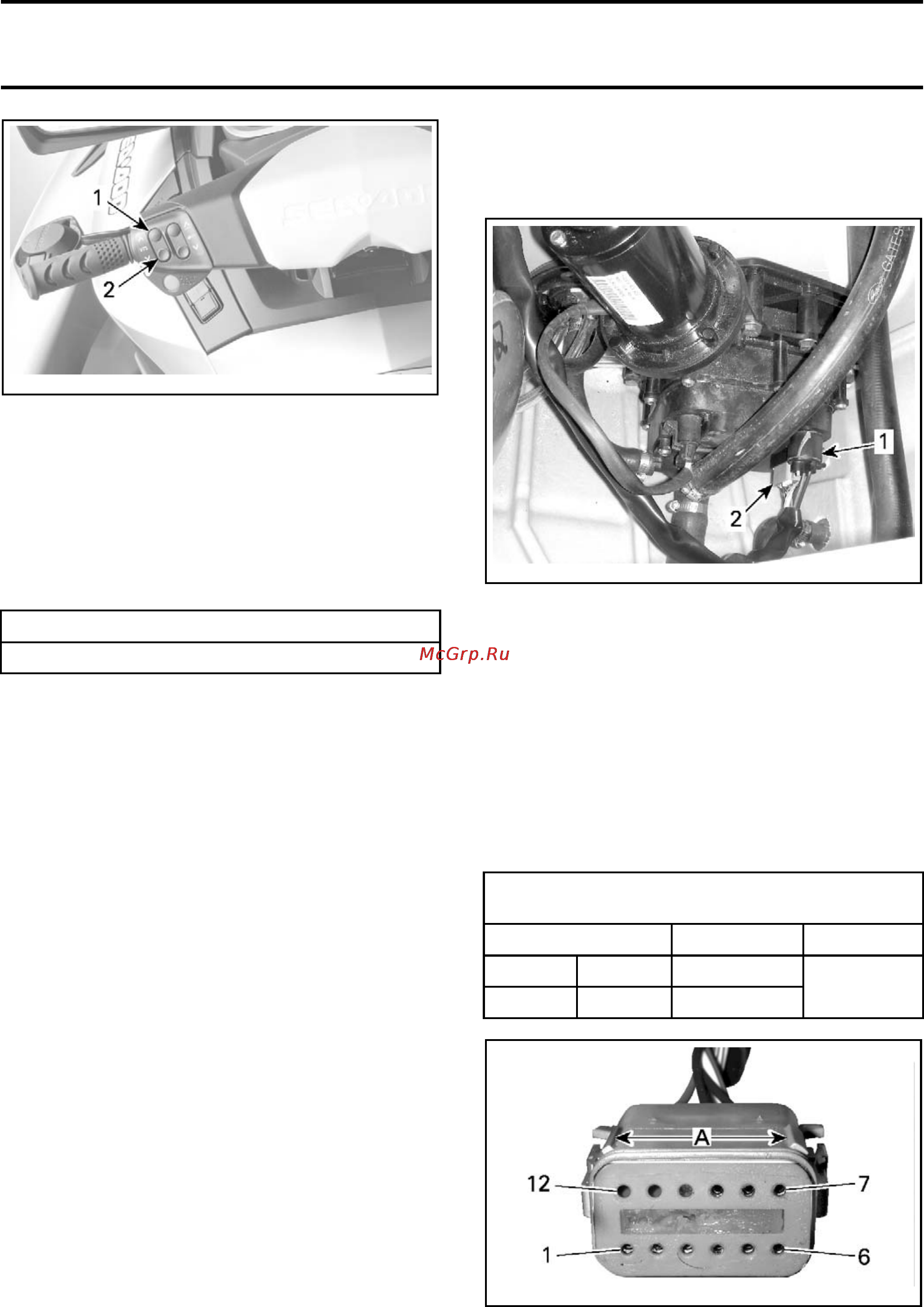

Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)
sdd2009-00
1-019_c
1. VTS UP
2. VTS DOWN
NOTE: Elect
rical power will shut off after approx-
imately 3 m
inutes. Briefly press the START/STOP
buttontor
eactivate the electrical system when re-
quired.
5. Press the VTS DOWN button (or the iBR DOWN
button on the iBR Activation page in B.U.D.S.),
and read the iBR module motor output voltage.
iBR MOTOR VOLTAGE TEST
Battery voltage (over 12 Vdc)
NOTE: Voltage measured should be battery volt-
age in both UP or DOWN directions. Voltage po-
larity should reverse as UP or DOWN button is
pressed alternately.
– If battery voltage is not measured, refer to
iBR
ACTUATOR INPUT VOLTAGE TEST
in this sub-
section.
– If battery voltage is measured in both direc-
tions, refer to
iBR POWER TEST USING A TEST
LIGHT
in this subsection.
– If battery voltage is measured and the test light
is bright for both iBR UP or DOWN selections,
theiBRmotorisatfaultandtheiBRactuator
must be replaced.
– If battery voltage is low or test light is dim in
both directions, refer to
iBR ACTUATOR INPUT
VOLTAGE TEST
in this subsection.
– If battery voltage is measured and test light is
dim in one direction, replace the iBR actuator.
iBR Power Test Using a Test Light
1. Connect the clip of a 12 Vdc test light to the
battery ground (or engine ground).
2. Touch the test light probe to each pin of the
motor output connector on the iBR module as
you select the iBR up and down alternately.
The test light should come on bright for one pin
only in each direction (alternating 12 Vdc and
ground with change of iBR direction).
iBR Actuator Input Voltage Test
1. Disconnect the 3 pin and 12 pin connectors
from the iBR actuator.
smr2009-038-003_a
1. 3 pin conn
ector
2. 12 pin connector
NOTE: The 3 pin connector provides battery
power directly to the iBR module for the actuator
motor through a 30 A fuse. The 12 pin connector
provides BRLS signals, CAN bus, and a switched
12 Vdc power to the iBR module through a 5 A
fuse.
2. Set the
FLUKE 115 MULTIMETER (P/N 529 035
868)
to Vdc selection.
3. Measur
e for the 30iA battery input voltage to
the iBR
actuator as per following table.
iBR ACTUATOR INPUT VOLTAGE TEST
(30 AMP BATTERY POWER)
3 PIN CONNECTOR BATTERY READING
Pin 2 Pin 1
-
Pin 2
-
Neg. (-) post
Battery
volta
ge
smr2009-038-027_a
iBR 12 PIN CONNECTOR PIN-OUT
A. Con
nector keys
390
smr2009-037
