Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)

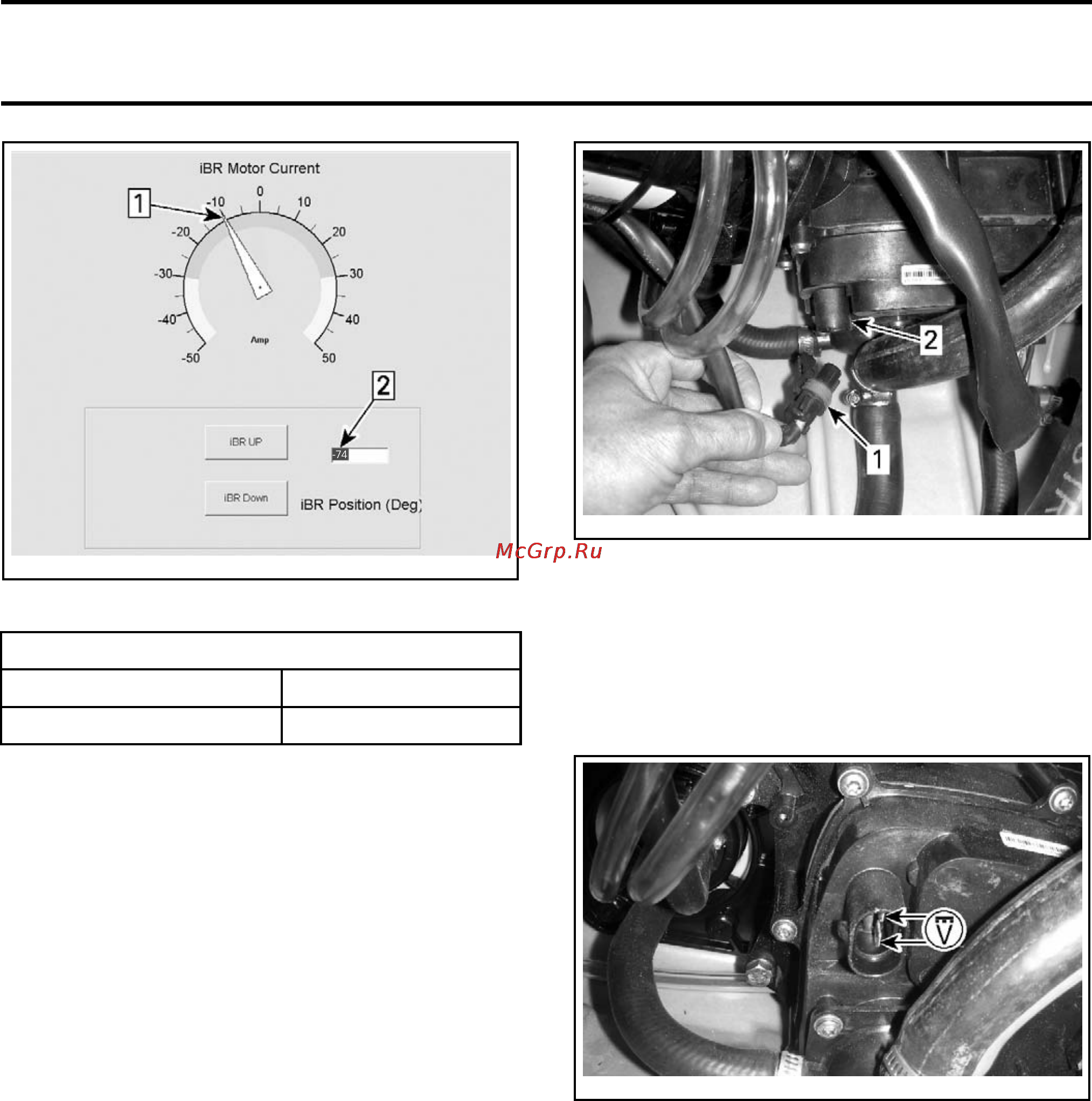

smr2009-038-033_b
Step 1: Note iBR current draw
Step 2: Note iBR position indication change
iBR ACTUATOR CURRENT DRAW
DOWN SELECTION
-5 to -15 A
UP SELECT
ION
+10to+20A
If current draw is abnormally high (between 20
and 30 A), check the following:
Ensure iBR gate is free of debris.
Remove i
BR gate key and check for excessive
frictio
n in gate movement.
Check iBR gate friction sleeves and bushings.
Check for proper voltage to the iBR motor, see
iBR MOTOR VOLTAGE TEST
in this subsection
Check f
or fault codes using B.U.D.S.
Remove debris, replace iBR gate components, or
replace the iBR actuator as applicable.
iBR Mot
or Voltage Test
1. Disconnect the iBR actuator motor connector
from the electronic module on the actuator.
smr2009-038-030_a
1. iBR motor harness connector
2. iBR motor module connector
2. Set the FLUKE 115 MULTIMETER (P/N 529 035
868)
to Vdc selection.
3. Install insulated clips on the multimeter leads
and clip leads to pins in the motor connector on
the iBR module.
smr2009-038-031_a
TEST OF
iBR MODULE OUTPUT VDC TO iBR MOTOR
4. Using the iBR override function (see
SYSTEM
DESCRIPTION (iBR
in this subsection), press
the VTS UP button and read the iBR module
motor output voltage.
NOTE:
The iBR UP button on the iBR Activation
page i
n B.U.D.S. may be used instead of the iBR
over
ride function.
smr2009-037 389
