Section 06 STEERING AND PROPULSION

Subsection 02 (iBR AND VTS)

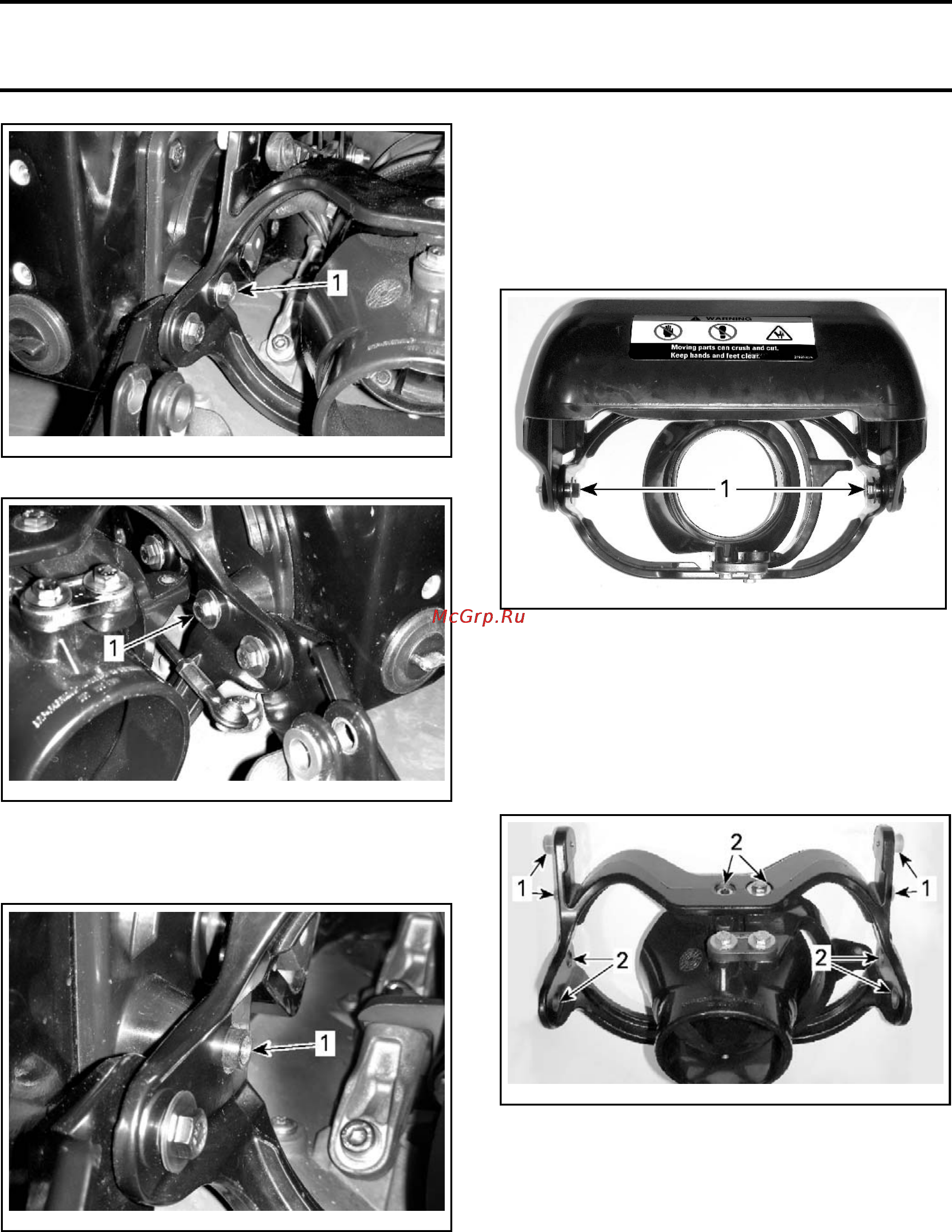

smr2009-038-008_a

1. Trim ring hexagonal screw (LH side)

smr2009-038-009_a

1. Trim ring hexagonal screw (RH side)

8. Remove the spacer sleeves from the VTS trim

ring.

smr

2009-038-010_a

1. Trim ring spacer sleeve to remove (LH side illustrated right side

similar)

NOT

E: iBR gate, VTS trim ring and nozzle will

com

e off as a unit when the trim ring spacer

eeves are removed. Secure the assembly with

e hand as you remove the spacer sleeves.

iBR Gate and VTS Trim Ring

Disassembly

VTS Trim Ring Removal

Remove the two hexagonal screws securing the

iBR gate to the VTS trim ring.

smr2009-0

38-011_a

1. iBR gate retaining hexagonal screws to remove

Trim Ring

Inspection

1. Inspect trim ring and metal spacers for cracks,

oblong holes, evidence of wear and deforma-

tion.

2. Inspect plastic bushings and friction sleeves for

cracks, deformation and signs of wear.

smr2009-038-012_a

VTS TRIM RING (WITH NOZZLE AND STEERING ARM)

1. Friction sleeves (2 each side)

2. Plastic bushings (x8)

394
