Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)
smr2009-038
-022_a

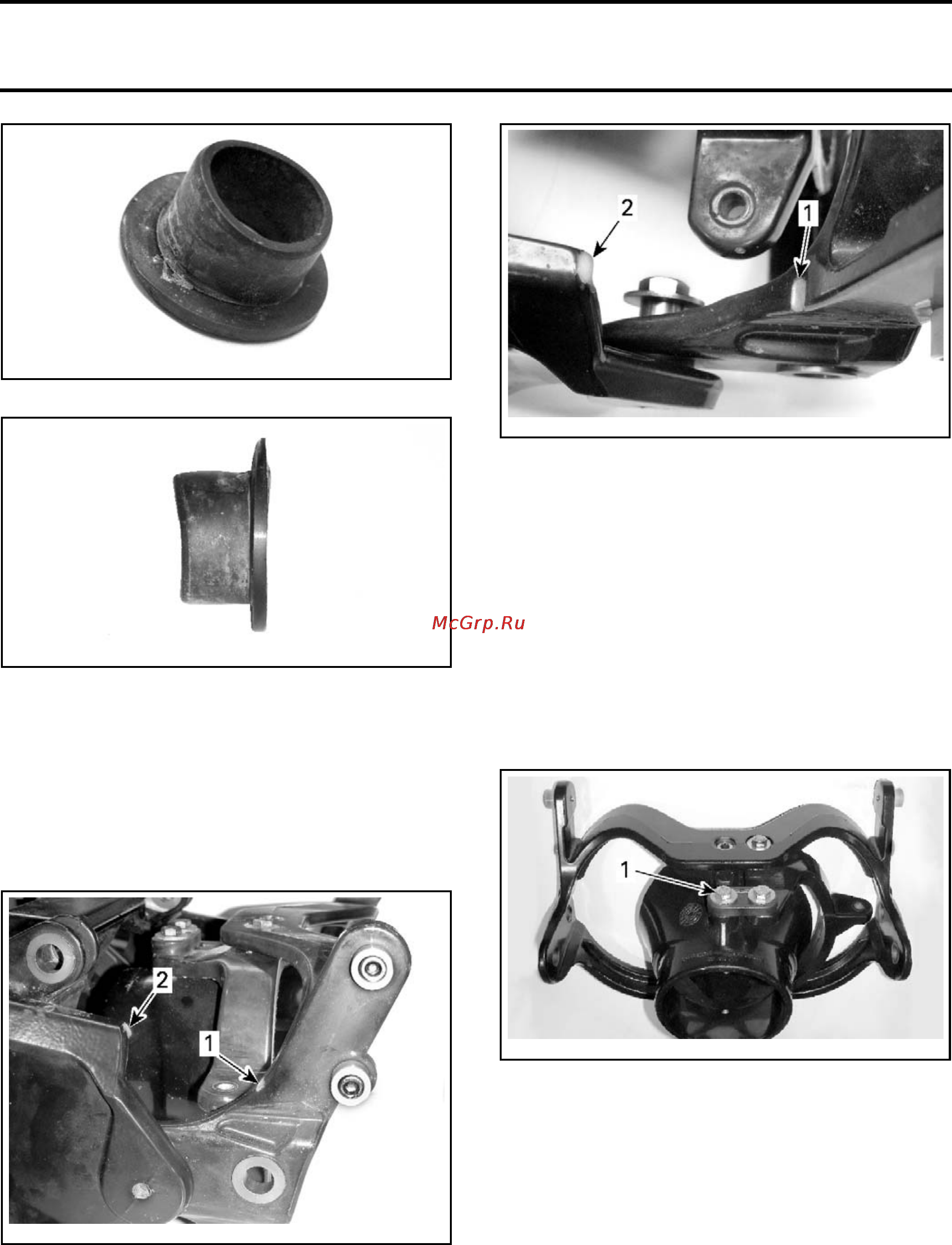

TYPICAL - WORN AND DEFORMED PLASTIC BUSHING
smr2009-0
38-023
NOTE: Friction sleeves should be replaced as
specified in maintenance chart or if they show
signs of wear (flat surfaces). Plastic bushings
are press fit and should be replaced if they show
signs of wear, deformation, or if the iBR gate
backlash is beyond service limit.
3. Inspect VTS ring and iBR gate contact points for
signs of wear.
smr2
009-038-024_a
TYPICAL - WEAR MARK ON VTS RING AND iBR GATE
CONTACT POINTS
1. Wear
mark on VTS ring
2. Wear mark on iBR gate
smr2009-038-025_a
TYPICAL - WE
AR MARK ON VTS RING AND iBR GATE
CONTACT POINTS
1. Wear mark on VTS ring
2. Wear mark on
iBR gate
NOTE: Wear marks on VTS ring and iBR gate con-
tact points are normal up to 3.175 mm (.125 in).
This wear affects nozzle backlash, not iBR gate
backlash.
4. Replace pa
rts as required.
Steering Nozzle Removal
1. Remove the 2 hexagonal screws securing the
steering arms (links) to the steering nozzle (top
and bottom).
smr2009-038-012_b
1. Hexagonal screws to remove (top and bottom)
2. Remov
e the 2 socket head screws securing the
nozzl
etotheVTStrimring(1topand1bottom).
smr2009-037 395
