Section 06 STEERING AND PROPULSION

Subsection 03 (JET PUMP)

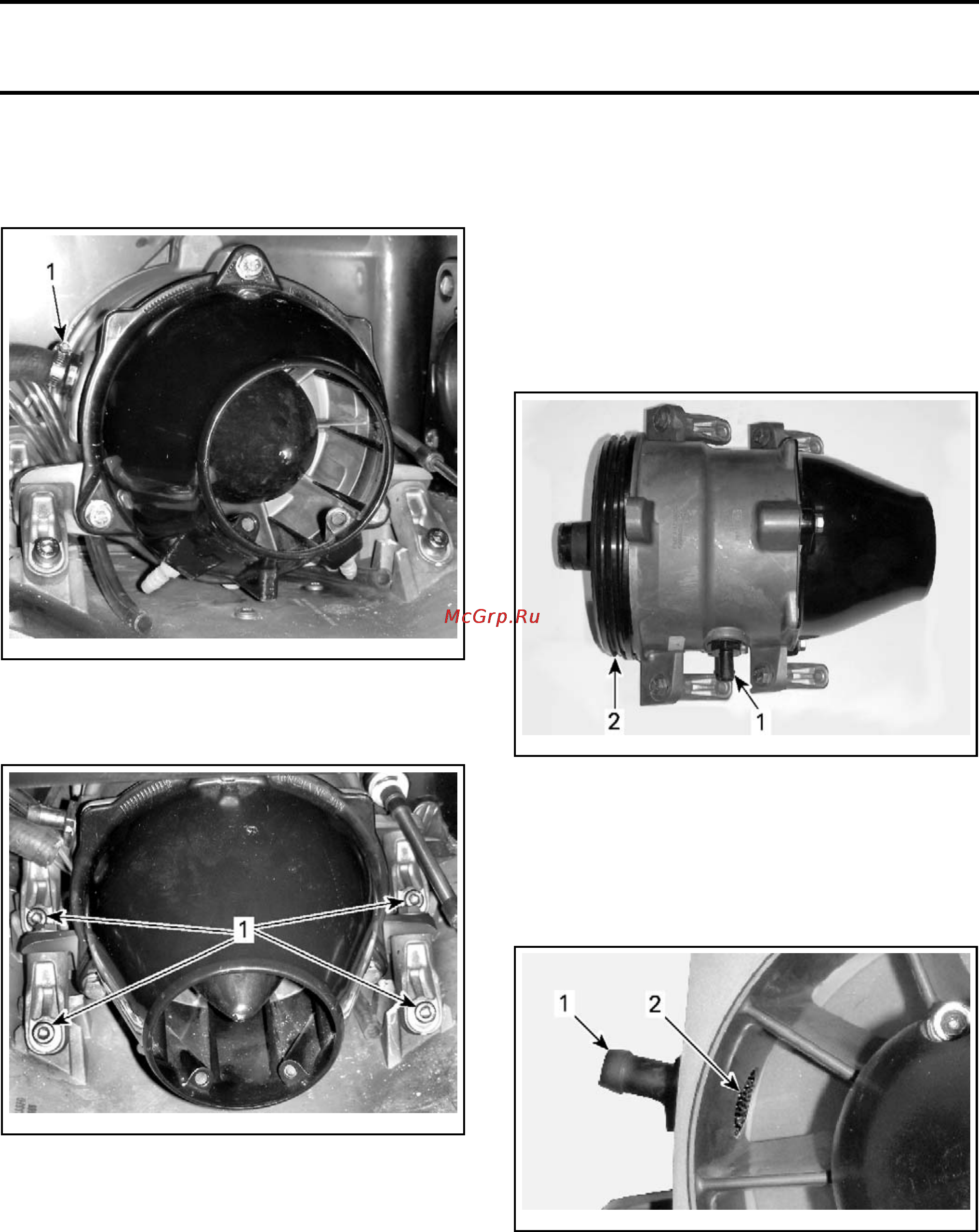

3. Loosen gear clamp and remove the hose from

the water pressure outlet fitting on the jet pump

housing.

smr2009-039-003_a

1. Water pressure hose

4. Remove t

he socket screws that retain the 4 jet

pump ada

pters to the ride plate.

smr2009-039-004_a

1. Socket screws to remove (x4)

5. Pull back jet pump housing to remove it from

the pump support. It may be necessary to wig-

gle it slightly as you pull back on the pump.

NOTE: The jet pump housing is held tightly in the

pump support due to the neoprene seal at the for-

ward end of the pump. There are no fasteners se-

curing the jet pump housing to the pump support.

Jet Pump Housing Inspection and

Cleaning

1. Visually inspect jet pump housing. Pay atten-

tion to the stator. Ensure the assembly is clean

and free of any debris and defects.

2. Blow low pressure compressed air through the

pressure outlet fitting and make sure it is clear.

3. Ensure the neoprene seal is in good condition.

Replace as required.

smr2009-039-005_a

1. Pressur

e hose fitting

2. Neoprene seal

NOTE: The end of the pressure outlet fitting

screwed into the pump housing is perforated

with many small holes. These holes must remain

clear to ensure an adequate water supply for the

intercooler and exhaust system.

smr2009-039-010_a

1. Fitting

2. Holes in fitting

4. Check the 4 pump adapters. Ensure they are

free of any cracks.

NOTE: Do not remove the jet pump housing

adapters from the pump unless it is necessary to

do so.

412 smr2009-039
