Section 06 STEERING AND PROPULSION

Subsection 03 (JET PUMP)

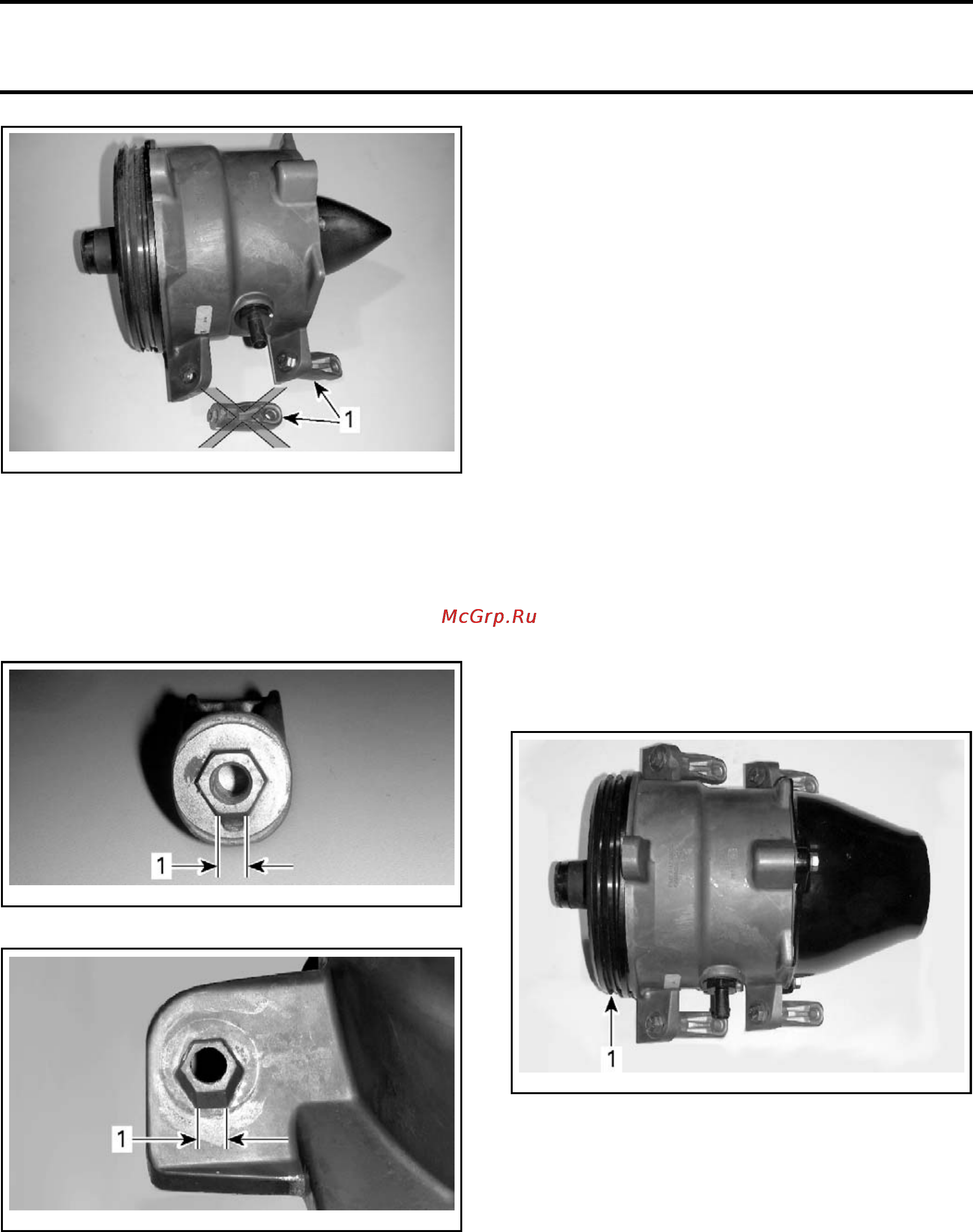

smr2009-039-006_a

1. jet pump housing adapters (x4)

Jet Pump Housing Adapter

Replacement

Adapters incorporate a keyway at the pump hous-

ing end of the adapter that provide for a small

amount of play for mounting the jet pump.

smr2009

-039-007_a

1. Adapter key

smr2009-039-008_a

1. Pump

housing adapter keyway

If adapters are removed or replaced, or a new

pump housing is installed, adapters may be

aligned to the pump housing using a spare ride

plate as a jig. Carry out the following steps.

1. Ins

tall the four adapters on the jet pump hous-

ing

leaving the hexagonal screws slightly loose.

2. Install the pump on a spare ride plate, the

mounting screws should be tight, but it is not

required to torque them.

3. Torque hexagonal screws retaining the

adapters to the jet pump housing as speci-

fied in the exploded view.

4. Remove the jet pump housing from the spare

ride plate and install it on the watercraft ride

plate.

Jet Pump Housing Installation

Brush and clean impeller splines and drive shaft

splines with

PULLEY FLANGE CLEANER (P/N 413

711 809)

or equivalent. Splines must be free of

any residue.

Lubricate drive shaft splines, impeller splines and

the inside of the impeller boot with

XPS SYNTHE-

TIC GREASE (P/N 293 550 010)

.

NOTE: Slightly lubricate wear ring with

XPS LUBE

(P/N 293 600 016)

to minimize friction during initial

start.

Ensure the neoprene seal is properly installed on

the jet pump.

smr2009-039-005_b

1. Neoprene seal

While h

olding the pump housing with the pump

adapt

ers downwards, align the pump with the

drive

shaft and carefully push the pump into the

pump s

upport.

Apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on the

adapter screw threads (or use new self-locking

screws).

Torque screws retaining pump adapters to ride

plate as specified in exploded view.

smr2009-039 413
