Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
VENTURI
Venturi Removal
Jet Pump Housing installed
1. Remove the iBR gate and VTS trim ring as an
assembly. Refer to
iBR AND VTS
subsection.
2. Cut locking ties and remove the 2 bailer hoses
from the venturi.
3. Refer to
JET PUMP HOUSING REMOVED
to
continue procedure.
Jet Pump Housing Removed
1. Remove the three hexagonal screws retaining
the venturi to the jet pump housing.

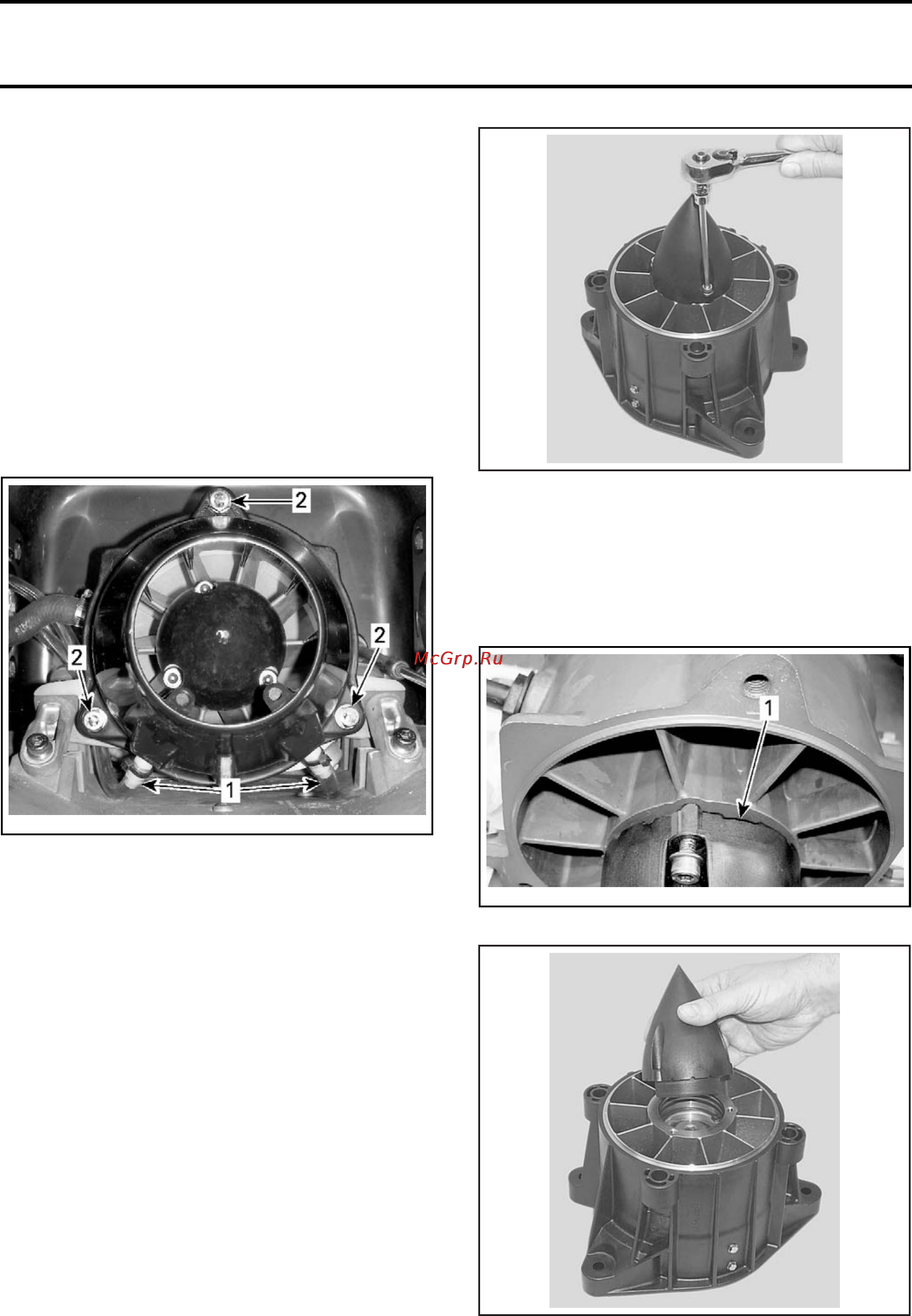

smr2009-039-002_b
1. Bailer hoses
2. Venturi retaining screws (x3)
Venturi Installation
The installation is the reverse of the removal pro-
cedure. Pay attention to the following.
Apply
LOCTITE 243 (BLUE) (P/N 293 800 060) on
threads of venturi screws or install new self-lock-
ing screws.
Install venturi screws and flat washers.
Torque venturi hexagonal screws to 21 N•m
(15 lbf•ft).
Ensure bailer hoses and fittings are in good condi-
tion.
IMPELLER COVER
Impeller Cover Removal
1. Remove the venturi.
2. With pump housing in vertical position, remove
and discard the 3 retaining screws.
F18J0LA
TYPICAL
3. Using a fiber hammer, gently tap impeller cover
to help release it from the jet pump housing.
4. Use a flat screwdriver in the slots provided as
pry points to remove it from the jet pump hous-
ing.
sdd2009-001-114_b
1. Slot
F18J0MA
TYPICAL
414
smr2009-039
