Section 06 STEERING AND PROPULSION

Subsection 03 (JET PUMP)

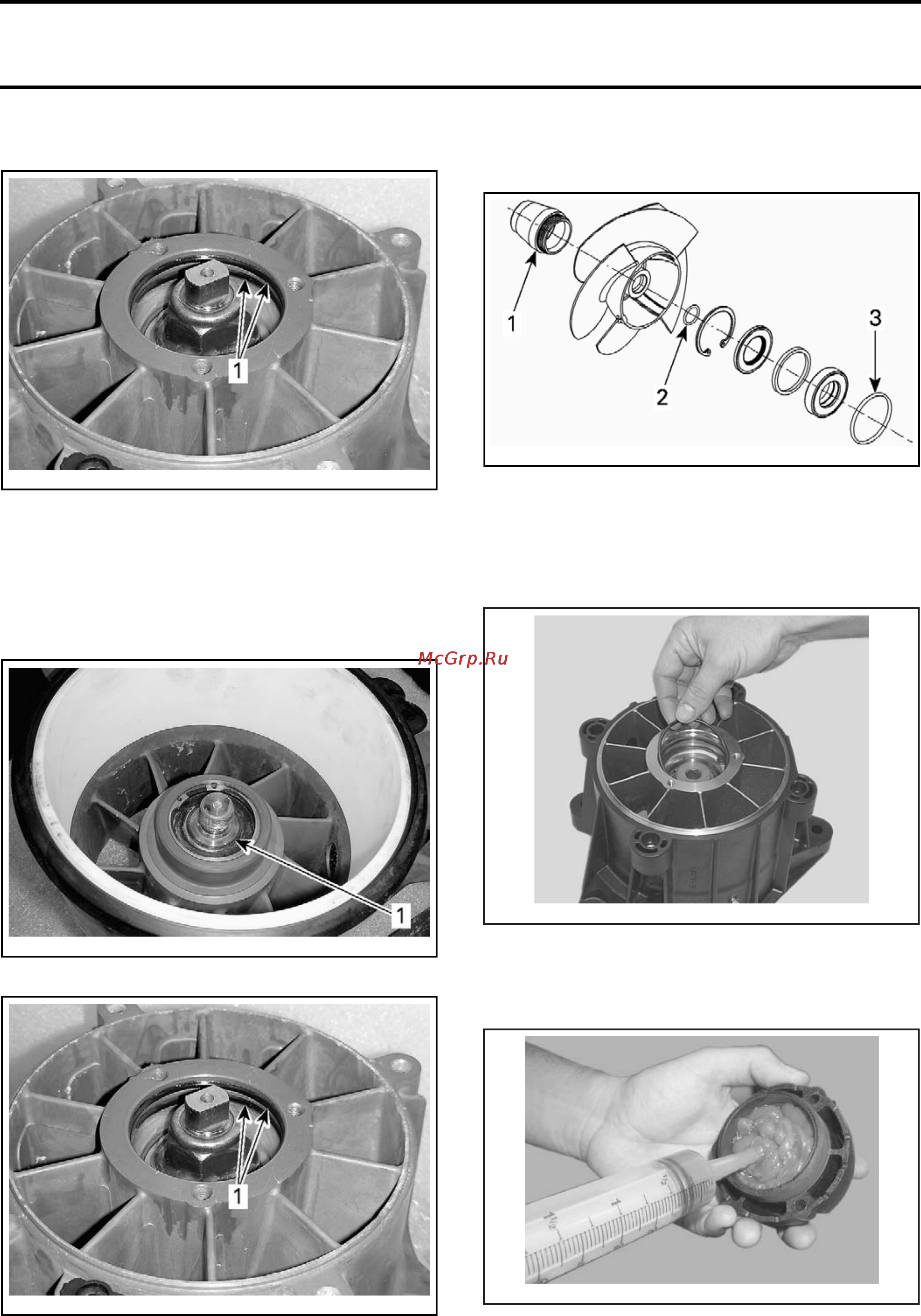

5. Remove both O-rings.

smr2009-006-003_a

TYPICAL

1. O-rings

Impeller Cover Inspection

Check for p

resence of water in cover and bearing

area. If wa

ter is found, replace seals on impeller

side. Also

replace O-rings and/or impeller cover.

smr2009-006-002_a

1. Seal on impeller side

smr2009-006-003_a

1. Cover O-rings

Check impeller boot and O-rings condition on im-

peller. Replace as required.

smr2009-006-004_a

1. Impeller b

oot

2. Impeller O-ring

3. Pump housing O-ring

Impeller C

over Installation

1. Install O-rings in their respective groove.

F18J0NA

TYPICAL

2. Put 23 ml (.8 U.S. oz) of JET PUMP BEARING

GREASE (P/N 293 550 032)

in the cover.

F18J18A

TYPICAL

smr2009-039 415
