Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)

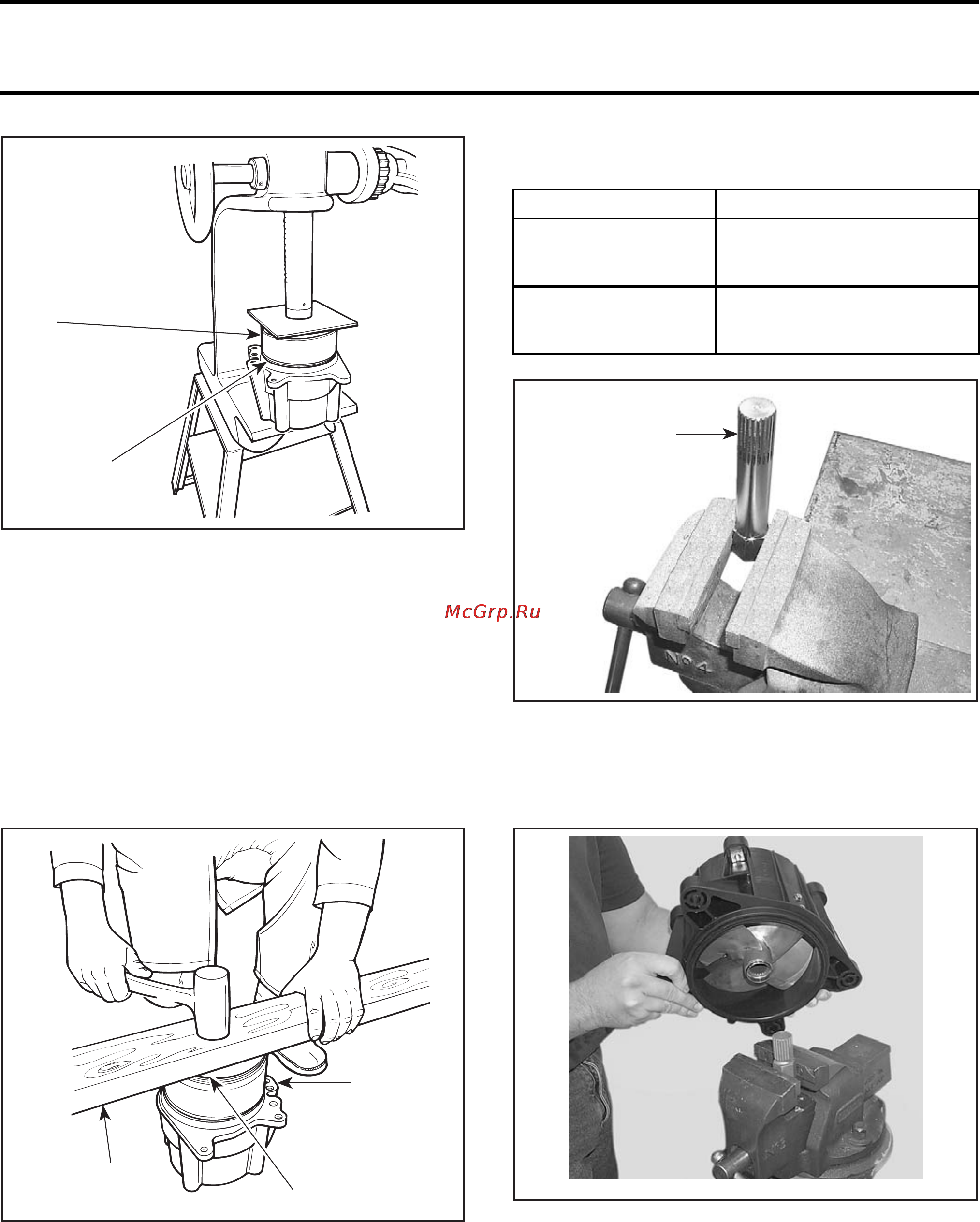

F01J1DA
1
2
1. Rounded edge
2. Press wear ring
If a press is not readily available, a piece of wood
such as a 2 x 4 in x 12 in long, can be used.
Manually engage ring in housing making sure it
is equally inserted all around. Place wood piece
over ring. Using a hammer, strike on wood to
push ring. Strike one side then rotate wood piece
about 90° and strike again. Frequently rotate
wood piece so that ring slides in evenly until it
seats into bottom of housing.
F01J1FA
1
2
3
1. Piece of wood
2. Rounded edge
3. Wea
rring
IMP
ELLER SHAFT AND BEARING
Impeller Shaft and Bearing Removal
1. Rem
ove impeller cover. Refer to
IMPELLER
CO
VER
in this subsection.
2. Mount in a vise the appropriate impeller re-
mover/installer tool according to engine type.
MODEL TOOL
130 and 155 engines
IMPELLER
REMOVER/INSTALLER
(P/N 529 035 820)
215 and 255 engines
IMPELLER
REMOVER/INSTALLER
(P/N 529 035 956)
1
F18J0PB
TYPICAL
1. Impeller remover/installer tool
3. Install jet pump housing over impeller re-
mover/installer tool.
F18J0QA
TYPICAL
4. Using a 30 mm socket, unscrew the impeller
shaft nut counterclockwise.
NOTE: If impeller loosens instead of shaft nut,
refer to
IMPELLER SHAFT NUT REMOVAL IF
IMPELLER HAS LOOSENED
further in this pro-
cedure.
smr2009-039 419
