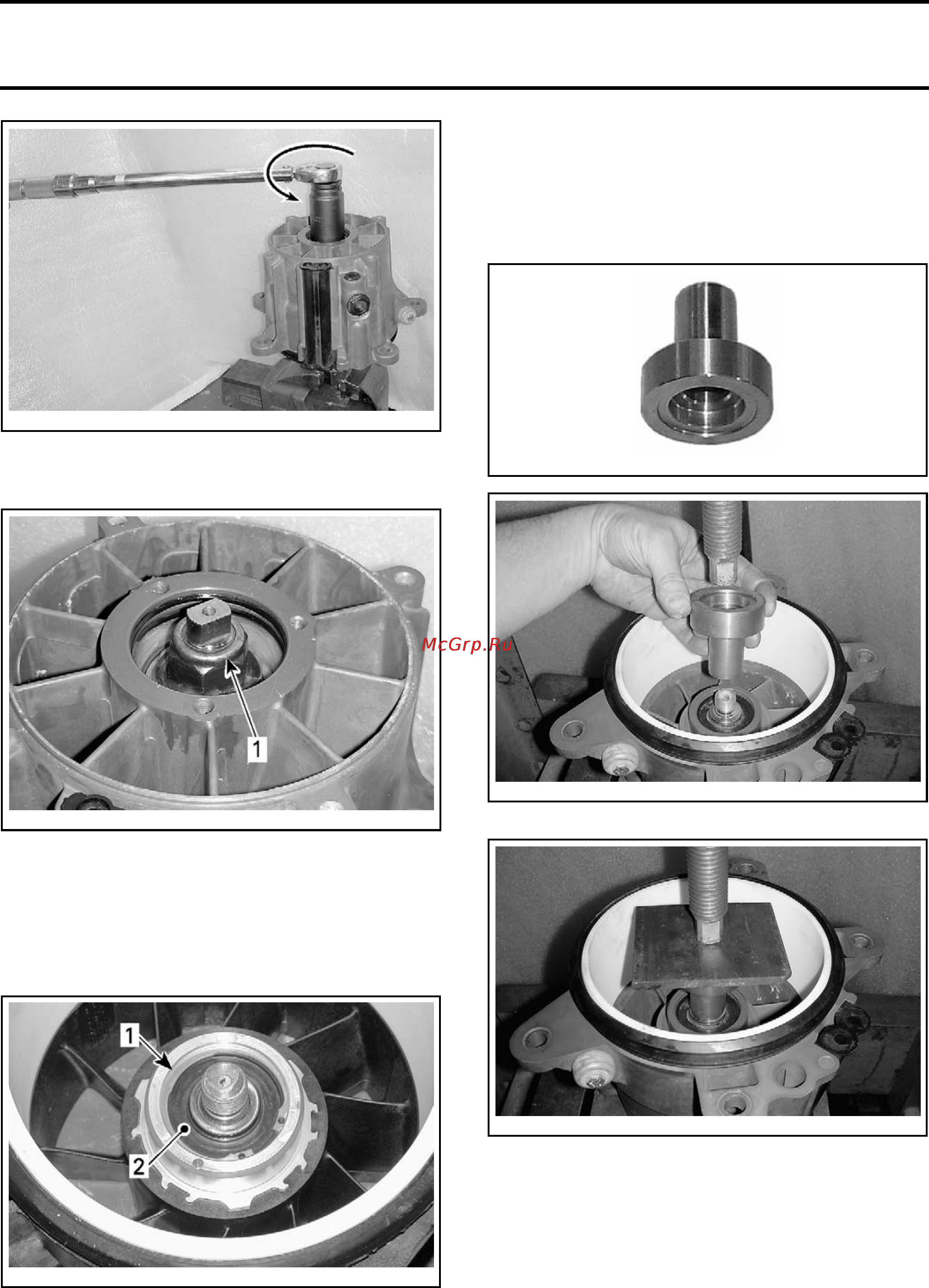

Section 06 STEERING AND PROPULSION

Subsection 03 (JET PUMP)

smr2009-006-009_a

TYPICAL

5. Remove impeller shaft nut.

smr2009-006-003_b

TYPICAL

1. Nut

6. Remove impeller as described in this subsec-

tion.

7. From th

e impeller side, remove circlip, seals,

space

r and O-ring.

smr2006-027-007_b

TYPICAL

1. Circlip

2. Seal

8. Use the IMPELLER SHAFT PUSHER (P/N 529 035

955)

to press impeller shaft out of pump hous-

ing.

NOTE: Bearing will come out with the impeller

shaft.

529035955_a

smr2009-006-010_a

TYPICAL

smr2009-006-011

TYPICAL

9. Use the IMPELLER SHAFT BEARING TOOL

(P/N 529 036 168)

to press bearing off impeller

shaft.

420 smr2009-039
