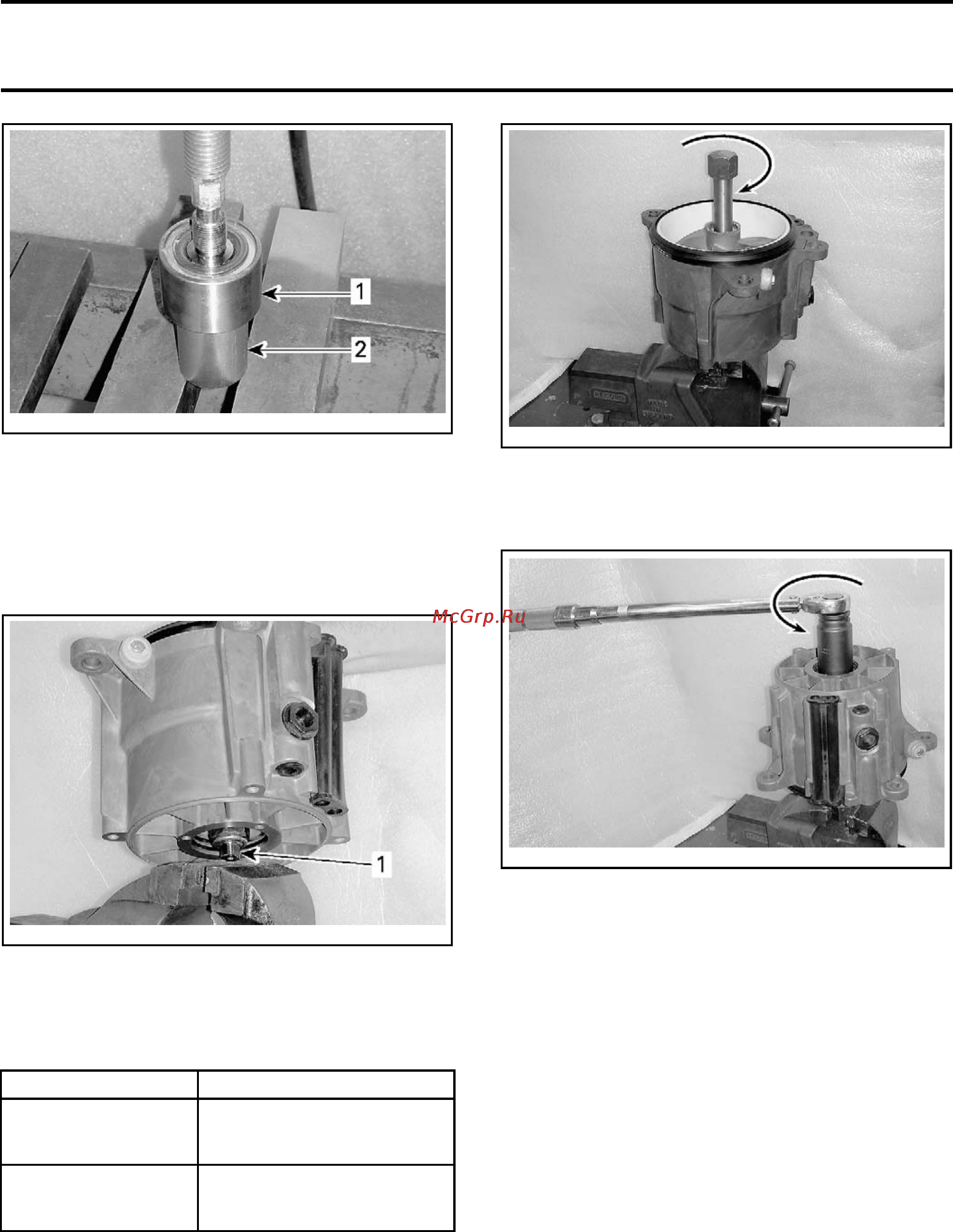

Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
smr2009-006-012_a
TYPICAL
1. Impeller shaft and bearing
2. Bearing tool on INNER race
Impeller Shaft Nut Removal if Impeller has
Loosened
1. Turn pump upside down and mount the flat
sides of impeller shaft in a vise.
smr2009-006-005_a
TYPICAL
1. Flat si
de
2. Mount in the impeller splines the appropriate
impeller remover/installer tool according to en-
gine type.
MODEL TOOL
130 and 155 engines
IMPELLER
REMOVER/INSTALLER
(P/N
529 035 820)
215 and 255 engines
IMPE
LLER
REMOVER/INSTALLER
(P/N 529 035 956)
3. Torque impeller more than impeller shaft nut.
smr2009-006-006_a
TYPICAL
4. Turn pump upside down and retry unscrewing
impeller shaft nut.
smr2009-006-009_a
TYPICAL
5. If impe
ller still loosens instead of nut, retighten
impell
er more and retry. Repeat until nut
loosen
s.
6. Remove impeller as described in this subsec-
tion.
7. Return to step 5 in the
IMPELLER SHAFT AND
BEARING REMOVAL
main procedure.
Impeller Shaft and Bearing Inspection
With your finger nail, feel seal lip contact surface
on shaft. If any irregular surface is found, replace
shaft and seals.
Check
condition of shaft threads.
smr2009-039 421
