Section 06 STEERING AND PROPULSION

Subsection 03 (JET PUMP)

F18J12A

TYPICAL

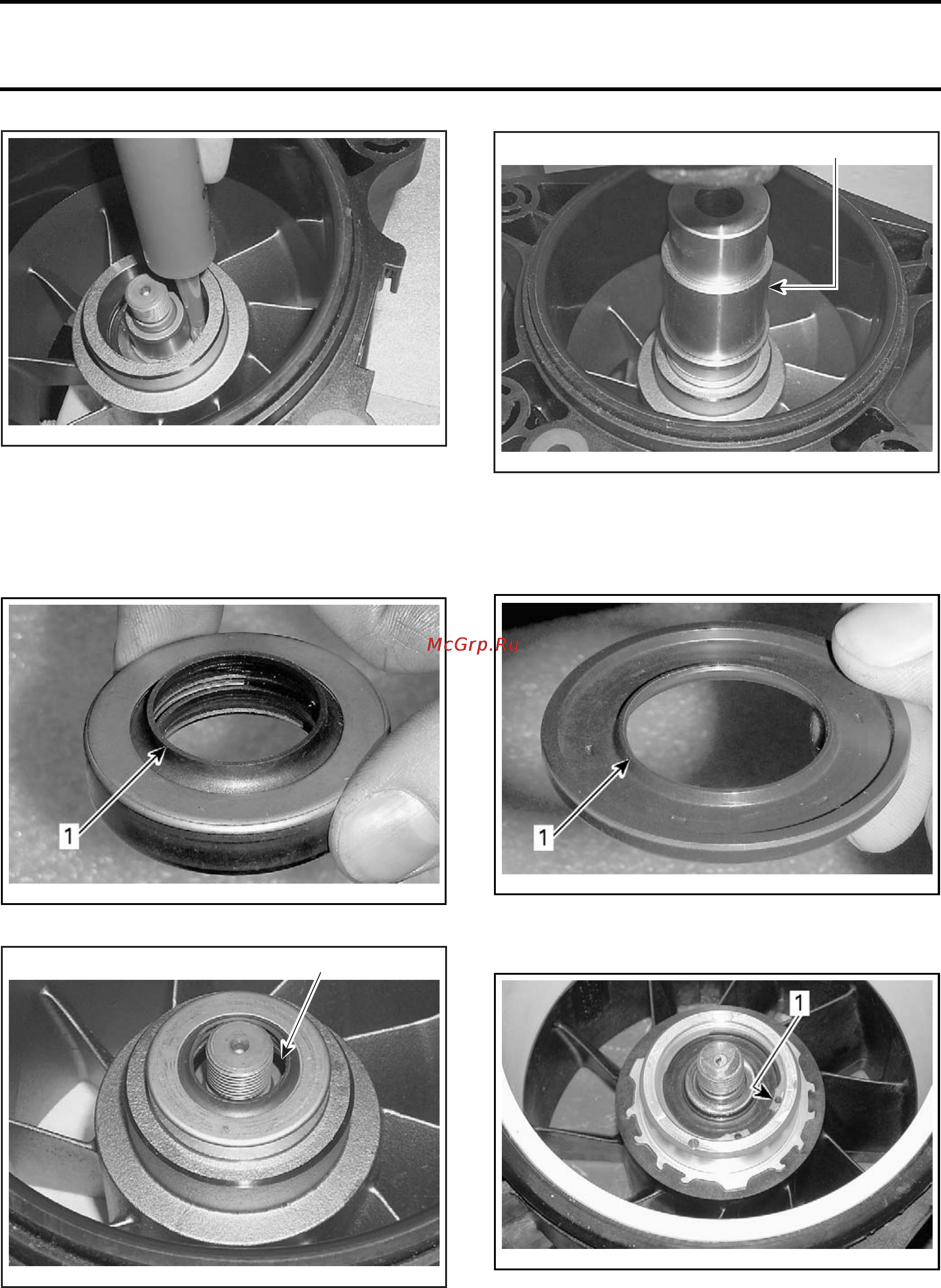

7. Press a NEW double lip seal using the

SEAL/BEARING PUSHER (P/N 529 035 819) until

seal bottoms. Make sure seal lip are facing

upwards.

smr2009-006-015_a

1. Seal lip up

F18J13A

1. Seallipfacingup

F18J14B

TYPICAL

1. Seal/bearing pusher

8. Install spacer and then the other seal (thin). En-

sure seal lip is facing up.

smr2009-006-016_a

1. Seal l

ip facing up

9. Install circlip.

smr2006-027-007_c

TYPICAL

1. Circlip

10. Turn pump upside down.

11. Install the two O-rings in pump housing.

smr2009-039 423
